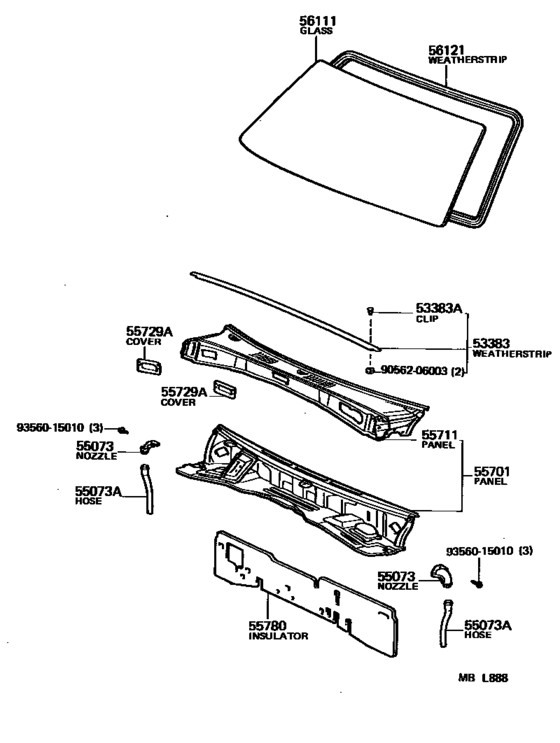

Cowl Panel & Windshield Glass ([08.1987 - ] (8708- )) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- Japan
- Frame
- FJ62V
- grade
- STD
- Roof
- SRF
- ENGINE
- 3F
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser VAN
- Fuel Induction
- CBR
- Building Condition
- IV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53383
|
53383
53383-90A00
Seal, Hood To Cowl Top
[08.1987 - 01.1990] FJ62,HJ6# |
53383-90A00 |
— | ||
|
53383A
|
53383A
90467-08011 Clip(For Headlamp Cover Seal)[08.1987 - 08.1988] FJ62,HJ6# |
90467-08011 |
from US $0.32 |
||
| replacements | |||||
|
53383A
|
53383A
90467-08011-TH CLIP[08.1987 - 08.1988] FJ62,HJ6# |
90467-08011-TH |
US $0.30 |
||
|
53383A
|
53383A
90467-08011-83 Clip(For Headlamp Cover Seal)Clip(For Headlamp Cover Seal) [08.1987 - 08.1988] FJ62,HJ6# |
90467-08011-83 |
US $0.51 |
||
|
55073
|
55073
55073-90A00
Nozzle Sub-Assy, Cowl Panel Water Extract
[08.1987 - 01.1990] FJ62,HJ6# |
55073-90A00 |
— | ||
|
55073A
|
55073A
90910-04012
Hose(For Extract Nozzle)
[08.1987 - 01.1990] FJ62,HJ6# |
90910-04012 |
— | ||
|
55701
|
55701
55700-90G15 Panel Sub-Assy, Cowl[08.1987 - 01.1990] FJ62,HJ6# |
55700-90G15 |
US $693.06 |
||
|
55711
|
55711
55701-90A34
Panel, Cowl Top, Outer
[08.1987 - 01.1990] FJ62,HJ6# |
55701-90A34 |
— | ||
|
55729A
|
55729A
55729-90A01
Cover, Cowl Panel Hole
[08.1987 - 01.1990] FJ62,HJ6# |
55729-90A01 |
— | ||
|
55780
|
55780
55780-90A00 Insulator Assy, Cowl Top[08.1987 - 01.1990] FJ62,HJ6# |
55780-90A00 |
US $147.06 |
||
|
56111
|
56111
56111-90A00
Glass, Windshield
[08.1987 - 01.1990] FJ62,HJ60..STD ＊ＬＡＭ，Ｔ＝５．３ |
56111-90A00 |
— | ||
| replacement | |||||
|
56111
|
56111
56111-90A02 Glass, WindshieldWINDSHIELD [08.1987 - 01.1990] FJ62,HJ60..STD ＊ＬＡＭ，Ｔ＝５．３ |
56111-90A02 |
US $1,223.04 |
||
|
56121
|
56121
56121-90A00 Weatherstrip, Windshield[08.1987 - 02.1988] FJ62,HJ60..STD |
56121-90A00 |
US $243.15 |
||
| replacement | |||||
|
56121
|
56121
56121-90A05 Weatherstrip, Windshield[08.1987 - 02.1988] FJ62,HJ60..STD |
56121-90A05 |
from US $155.04 |
||
|
56121
|
56121
56121-90A04 Weatherstrip, Windshield[02.1988 - 01.1990] FJ62,HJ60..STD |
56121-90A04 |
US $170.35 |
||
| replacement | |||||
|
56121
|
56121
56121-90A05 Weatherstrip, Windshield[02.1988 - 01.1990] FJ62,HJ60..STD |
56121-90A05 |
from US $155.04 |
||
|
9056206003
|
9056206003
90562-06003
RING
|
90562-06003 |
— | ||
|
9356015010
|
9356015010
93560-15010 New Genuine Part |
93560-15010 |
US $1.43 |
||
