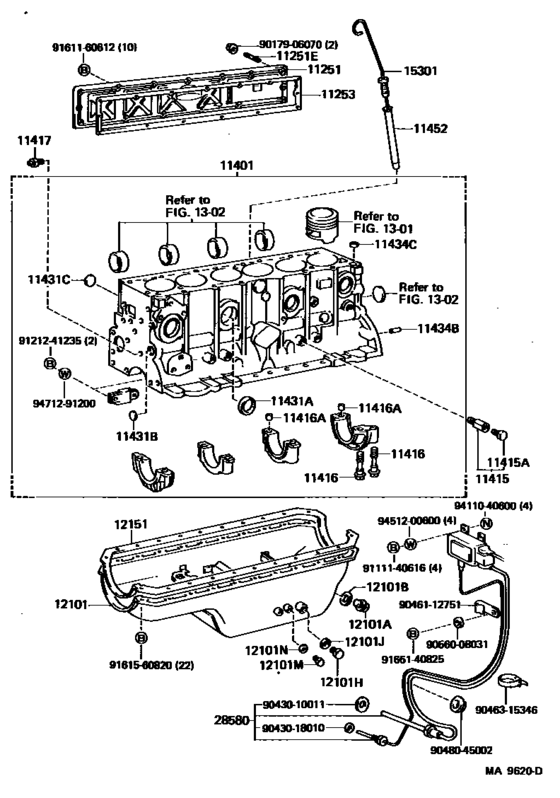

Cylinder Block ([08.1987 - ] (8708- )3F..IV4) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- Japan
- Frame
- FJ62V
- grade
- STD
- Roof
- SRF
- ENGINE
- 3F
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser VAN
- Fuel Induction
- CBR
- Building Condition
- IV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11251
|
11251
11251-61020
Cover, Valve Push Rod
[08.1987 - 01.1990] 3F#..FJ62 |
11251-61020 |
— | ||
|
11251E
|
11251E
90116-06022 Bolt, Stud(For Valve Push Rod Cover)[08.1987 - 01.1990] 3F#..FJ62 |
90116-06022 |
US $2.33 |
||
|
11253
|
11253
11253-61010 Gasket, Valve Push Rod Cover[08.1987 - 01.1990] 3F#..FJ62 |
11253-61010 |
from US $9.90 |
||
|
11401
|
11401
11401-69305 Block Sub-Assy, Cylinder[08.1987 - 11.1989] 3F#..FJ62 |
11401-69305 |
US $4,382.56 |
||
| replacement | |||||
|
11401
|
11401
11401-69307 Block Sub-Assy, Cylinder[08.1987 - 11.1989] 3F#..FJ62 |
11401-69307 |
US $4,309.76 |
||
|
11401
|
11401
11401-69306 Block Sub-Assy, Cylinder[11.1989 - 01.1990] 3F#..FJ62 |
11401-69306 |
US $4,353.44 |
||
| replacement | |||||
|
11401
|
11401
11401-69307 Block Sub-Assy, Cylinder[11.1989 - 01.1990] 3F#..FJ62 |
11401-69307 |
US $4,309.76 |
||
|
11415
|
11415
96431-53828 Cock Sub-Assy, Water Drain(For Cylinder Block)[08.1987 - 01.1990] 3F#..FJ62; 2H..HJ60 |
96431-53828 |
US $8.12 |
||
|
11415A
|
11415A
96432-23814
Plug, Water Drain Cock(For Cylinder Block)
[08.1987 - 01.1990] 3F#..FJ62; 12HT,2H..HJ6# |
96432-23814 |
— | ||
|
11416
|
11416
90105-14033
Bolt(For Crankshaft Bearing Cap Set)
[08.1987 - 01.1990] 3F#..FJ62 NO.1,2,3,*18-2PX65-2 |
90105-14033 |
— | ||
|
11416
|
11416
90910-02057 Bolt(For Crankshaft Bearing Cap Set)[08.1987 - 01.1990] 3F#..FJ62 NO.4,*12-1.75PX68-26 |
90910-02057 |
US $3.93 |
||
|
11416A
|
11416A
90253-16014
Pin, Ring(For Crankshaft Bearing Cap Set)
[08.1987 - 01.1990] 3F#..FJ62 ＮＯ．４ |
90253-16014 |
— | ||
|
11416A
|
11416A
90253-18003 Pin, Ring(For Crankshaft Bearing Cap Set)[08.1987 - 01.1990] 3F#..FJ62 NO.1,2,3 |
90253-18003 |
US $2.48 |
||
|
11417
|
11417
90915-01014
Nozzle, Oil
[08.1987 - 01.1990] 3F#..FJ62 |
90915-01014 |
— | ||
|
11431A
|
11431A
96411-45000 Plug, Tight, No.1(For Cam Housing)[08.1987 - 01.1990] 3F#..FJ62 |
96411-45000 |
from US $3.74 |
||
|
11431B
|
11431B
90344-54003 Plug, Tight, No.2(For Cylinder Block)[08.1987 - 01.1990] 3F#..FJ62 |
90344-54003 |
from US $3.32 |
||
|
11431C
|
11431C
96411-42500 Plug, Tight, No.1[08.1987 - 01.1990] 3F#..FJ62 |
96411-42500 |
from US $2.95 |
||
|
11434B
|
11434B
90250-10192 Pin, Straight(For Timing Gear Cover Set)[08.1987 - 01.1990] 3F#..FJ62 長さ＝２２，外径＝１０ |
90250-10192 |
from US $0.97 |
||
|
11434C
|
11434C
90253-17003 Pin, Ring(For Crankshaft Bearing Cap Set)[08.1987 - 01.1990] 3F#..FJ62 長さ＝７，外径＝１６．５ |
90253-17003 |
US $3.32 |
||
|
11452
|
11452
11452-61010 Guide, Oil Level Gage[08.1987 - 01.1990] 3F#..FJ62 |
11452-61010 |
from US $7.70 |
||
|
12101
|
12101
12101-61021
Pan Sub-Assy, Oil
[08.1987 - 10.1987] 3F..FJ62..IV4 |
12101-61021 |
— | ||
| replacement | |||||
|
12101
|
12101
12101-61040 Pan Sub-Assy, Oil[08.1987 - 10.1987] 3F..FJ62..IV4 |
12101-61040 |
US $330.51 |
||
|
12101
|
12101
12101-61040 Pan Sub-Assy, Oil[10.1987 - 01.1990] 3F..FJ62..IV4 |
12101-61040 |
US $330.51 |
||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[08.1987 - 01.1990] 3F#..FJ62 |
90341-12012 |
from US $2.87 |
||
| replacement | |||||
|
12101A
|
12101A
90341-T0004 Plug(For Oil Pan Drain)[08.1987 - 01.1990] 3F#..FJ62 |
90341-T0004 |
US $3.50 |
||
|
12101B
|
12101B
90430-12011
Gasket(For Oil Pan Drain Plug)
[08.1987 - 03.1988] 3F..FJ62 |
90430-12011 |
— | ||
| replacement | |||||
|
12101B
|
12101B
90430-12028 Gasket (For Drain Plug)[08.1987 - 03.1988] 3F..FJ62 |
90430-12028 |
from US $1.08 |
||
|
12101B
|
12101B
90430-12019
Gasket(For Oil Pan Drain Plug)
[03.1988 - 01.1990] 3F#..FJ62 |
90430-12019 |
— | ||
| replacement | |||||
|
12101B
|
12101B
90430-12028 Gasket (For Drain Plug)[03.1988 - 01.1990] 3F#..FJ62 |
90430-12028 |
from US $1.08 |
||
|
12101H
|
12101H
90341-18049 Plug(For Oil Heater Houl)[08.1987 - 01.1990] 3F..FJ62..IV4 |
90341-18049 |
from US $3.55 |
||
|
12101J
|
12101J
90430-18152 Gasket(For Cylinder Head Screw Plug)[08.1987 - 01.1990] 3F..FJ62..IV4 |
90430-18152 |
US $2.48 |
||
|
12101M
|
12101M
90341-16001 Plug(For Oil Heater Thermostat Hole)[11.1988 - 01.1990] 3F..FJ62..IV4 |
90341-16001 |
US $4.37 |
||
|
12101M
|
12101M
90341-16008 Plug(For Oil Heater Thermostat Hole)[08.1987 - 11.1988] 3F..FJ62..IV4 |
90341-16008 |
US $6.81 |
||
|
12101N
|
12101N
90430-16003 Gasket(For Oil Heater Thermostat Hole Plug)[08.1987 - 01.1990] 3F..FJ62..IV4 |
90430-16003 |
US $2.48 |
||
|
12151
|
12151
12151-61011 Gasket, Oil Pan[08.1987 - 01.1990] 3F#..FJ62 |
12151-61011 |
from US $31.24 |
||
|
15301
|
15301
15301-60031 Gage Sub-Assy, Oil Level[08.1987 - 01.1990] 3F#..FJ62 |
15301-60031 |
from US $13.49 |
||
|
28580
|
28580
28580-60010 Heater Assy, Oil[08.1987 - 01.1990] 3F..FJ62..IV4 |
28580-60010 |
US $2,271.36 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.57 |
||
|
9043010011
|
9043010011
90430-10011 New Genuine Part |
90430-10011 |
US $1.89 |
||
|
9043018010
|
9043018010
90430-18010 New Genuine Part |
90430-18010 |
US $1.89 |
||
|
9046112751
|
9046112751
90461-12751 New Genuine Part |
90461-12751 |
US $5.10 |
||
|
9046315346
|
9046315346
90463-15346
New Genuine Part
|
90463-15346 |
— | ||
|
9048045002
|
9048045002
90480-45002 New Genuine Part |
90480-45002 |
US $5.24 |
||
|
9056008031
|
9056008031
90560-08031 New Genuine Part |
90560-08031 |
US $12.38 |
||
|
9111140616
|
9111140616
91111-40616 New Genuine Part |
91111-40616 |
US $2.18 |
||
| replacement | |||||
|
9111140616
|
9111140616
91111-50616 New Genuine Part |
91111-50616 |
US $1.51 |
||
|
9121241235
|
9121241235
91212-41235
New Genuine Part
|
91212-41235 |
— | ||
|
9161160612
|
9161160612
91611-60612
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-60612 |
— | ||
| replacement | |||||
|
9161160612
|
9161160612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.76 |
||
|
9161560820
|
9161560820
91615-60820
Bolt (For Transmission Control Cable Bracket)
|
91615-60820 |
— | ||
| replacement | |||||
|
9161560820
|
9161560820
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
|
9165140825
|
9165140825
91651-40825 Bolt(For Clutch Release Cylinder Setting) |
91651-40825 |
from US $1.67 |
||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.65 |
||
|
9451200600
|
9451200600
94512-00600 Washer, Seal(For Head Cover Set) |
94512-00600 |
US $2.33 |
||
|
9471291200
|
9471291200
94712-91200
New Genuine Part
|
94712-91200 |
— | ||
