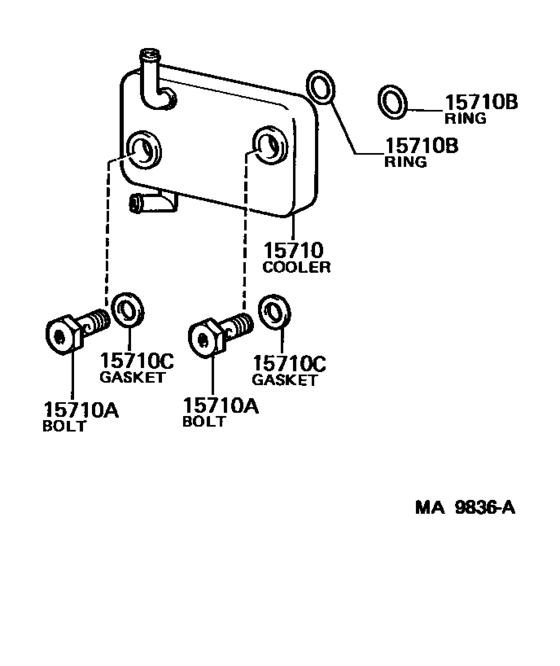

Engine Oil Cooler ([08.1987 - ] (8708- )3F..IV4) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- Japan
- Frame
- FJ62V
- grade
- STD
- Roof
- SRF
- ENGINE
- 3F
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser VAN
- Fuel Induction
- CBR
- Building Condition
- IV4
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15710
|
15710
15710-61020 Cooler Assy, Oil[08.1987 - 01.1990] 3F..FJ62..IV4 |
15710-61020 |
US $844.48 |
||
|
15710A
|
15710A
90401-18083
Bolt, Union(For Oil Cooler)
[08.1987 - 01.1990] 3FE..FJ62;3F..FJ62..IV4 |
90401-18083 |
— | ||
|
15710B
|
15710B
90301-21176 Ring, O(For Oil Cooler)[08.1987 - 01.1990] 12HT,2H..HJ6#; 3FE..FJ62;3F..FJ62..IV4 |
90301-21176 |
from US $3.29 |
||
|
15710C
|
15710C
90430-18012 Gasket(For Oil Pump Outlet Pipe)[08.1987 - 01.1990] 3FE..FJ62;3F..FJ62..IV4 |
90430-18012 |
US $3.05 |
