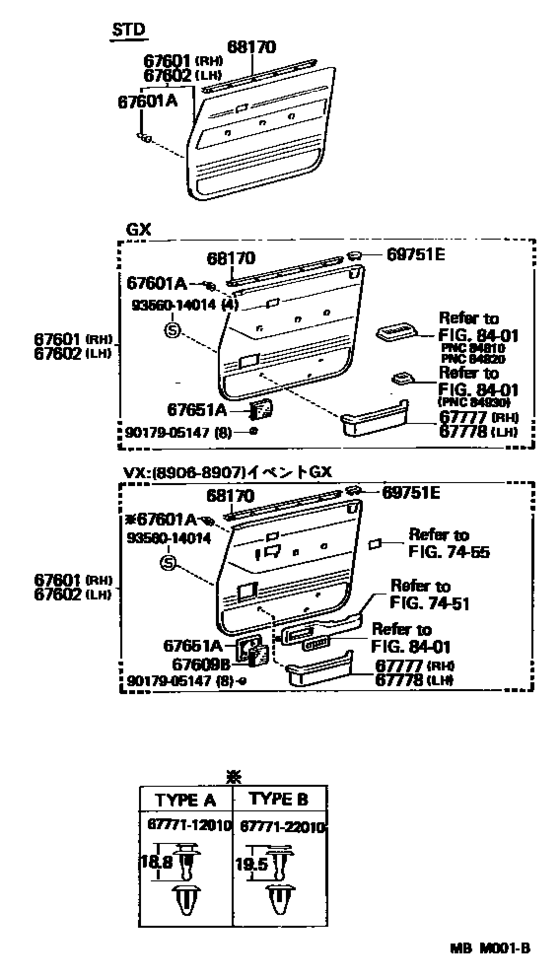

Front Door Panel & Glass ([08.1987 - ] (8708- )) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- Japan
- Frame
- FJ62V
- grade
- STD
- Roof
- SRF
- ENGINE
- 3F
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser VAN
- Fuel Induction
- CBR
- Building Condition
- IV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67601
|
67601
67610-90A89-06
Board Sub-Assy, Front Door Trim, Rh
[08.1987 - 01.1990] FJ62,HJ60..STD SEPIA BROWN,TRIM4# |
67610-90A89-06 |
— | ||
|
67601A
|
67601A
67771-22010 Retainer, Door Trim[08.1987 - 01.1990] FJ62,HJ60..STD |
67771-22010 |
from US $1.10 |
||
|
67602
|
67602
67620-90A98-06 Board Sub-Assy, Front Door Trim, Lh[08.1987 - 01.1990] FJ62,HJ60..STD SEPIA BROWN,TRIM4# |
67620-90A98-06 |
US $133.95 |
||
|
68170
|
68170
68170-90A00
Weatherstrip Assy, Front Door Glass, Inner
[08.1987 - 01.1990] FJ62,HJ60..STD |
68170-90A00 |
— | ||
|
69751E
|
69751E
69079-90K00-06
Holder, Door Lock Control Knob
[08.1987 - 01.1990] FJ62,HJ60..STD SEPIA BROWN,TRIM4# |
69079-90K00-06 |
— | ||
| replacement | |||||
|
69751E
|
69751E
69079-90K00-B1 Holder, Rear Door Lock Control Knob[08.1987 - 01.1990] FJ62,HJ60..STD SEPIA BROWN,TRIM4# |
69079-90K00-B1 |
from US $3.17 |
||
|
6777112010
|
6777112010
67771-12010 Retainer, Door Trim |
67771-12010 |
from US $1.77 |
||
|
6777122010
|
6777122010
67771-22010 Retainer, Door Trim |
67771-22010 |
from US $1.10 |
||
|
9017905147
|
9017905147
90179-05147 NUT |
90179-05147 |
US $2.33 |
||
| replacement | |||||
|
9017905147
|
9017905147
90179-05042 NUT |
90179-05042 |
US $1.25 |
||
|
9356014014
|
9356014014
93560-14014 SCREW |
93560-14014 |
US $1.08 |
||
