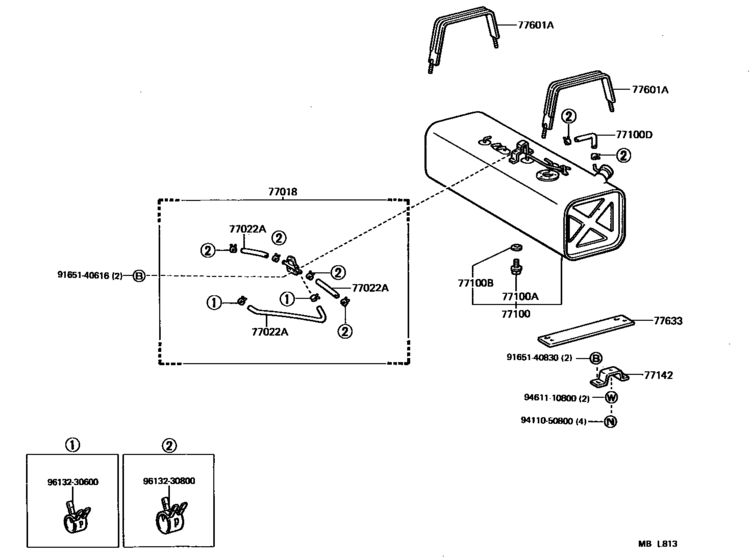

Fuel Tank & Tube ([08.1987 - ] (8708- )IV4) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- Japan
- Frame
- FJ62V
- grade
- STD
- Roof
- SRF
- ENGINE
- 3F
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser VAN
- Fuel Induction
- CBR
- Building Condition
- IV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77018
|
77018
77018-60012 Valve Sub-Assy, Fuel Vapour Separate[08.1987 - 01.1990] FJ62..IV4 |
77018-60012 |
US $52.71 |
||
|
77022A
|
77022A
95333-06200 Hose, Fuel(For Fuel Evaporative Separator)[08.1987 - 01.1990] FJ62..IV4 ＊Ｈ，Ｌ＝２０００ |
95333-06200 |
US $33.92 |
||
| replacement | |||||
|
77022A
|
77022A
95332-06200 Hose, Fuel(For Fuel Evaporative Separator)[08.1987 - 01.1990] FJ62..IV4 ＊Ｈ，Ｌ＝２０００ |
95332-06200 |
US $34.36 |
||
|
77022A
|
77022A
95333-08020
Hose, Lpg Injector
[08.1987 - 01.1990] FJ62..IV4 長さ＝２００，内径＝８ |
95333-08020 |
— | ||
| replacement | |||||
|
77022A
|
77022A
95337-08020 Hose, Fuel(For Fuel Evaporative Separator)FUEL, NO.1(FOR RETURN TUBE, NO.1) [08.1987 - 01.1990] FJ62..IV4 長さ＝２００，内径＝８ |
95337-08020 |
from US $5.56 |
||
|
77100
|
77100
77001-37031 Tank Assy, Fuel[08.1987 - 01.1990] FJ62..IV4 |
77001-37031 |
US $509.60 |
||
|
77100A
|
77100A
90105-12018 Plug(For Fuel Tank)[08.1987 - 01.1990] FJ62,HJ6# |
90105-12018 |
US $6.81 |
||
|
77100B
|
77100B
90430-12245 Gasket(For Fuel Tank)[08.1987 - 01.1990] FJ62,HJ6# |
90430-12245 |
from US $0.86 |
||
|
77100D
|
77100D
95333-08020
Hose, Lpg Injector
[08.1987 - 01.1990] FJ62..IV4 長さ＝２００，内径＝８ |
95333-08020 |
— | ||
| replacement | |||||
|
77100D
|
77100D
95337-08020 Hose, Fuel(For Fuel Evaporative Separator)FUEL, NO.1(FOR RETURN TUBE, NO.1) [08.1987 - 01.1990] FJ62..IV4 長さ＝２００，内径＝８ |
95337-08020 |
from US $5.56 |
||
|
77142
|
77142
77142-60020
Bracket, Fuel Tank Mounting, Rear
[08.1987 - 01.1990] FJ62..IV4 |
77142-60020 |
— | ||
|
77601A
|
77601A
77601-60030
Band Sub-Assy, Fuel Tank, No.1
[08.1987 - 01.1990] FJ62..IV4 |
77601-60030 |
— | ||
|
77633
|
77633
77633-60030
Stay, Fuel Tank
[08.1987 - 01.1990] FJ62..IV4 |
77633-60030 |
— | ||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.72 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.43 |
||
|
9165140830
|
9165140830
91651-40830 Bolt, Radiator Side Support Plate |
91651-40830 |
US $1.31 |
||
|
9411050800
|
9411050800
94110-50800 Nut(For Repair Actuator Set) |
94110-50800 |
US $1.43 |
||
|
9461110800
|
9461110800
94611-10800 Washer, Plate (For Transmission Control Cable) |
94611-10800 |
from US $0.84 |
||
|
9613230600
|
9613230600
96132-30600
Clip(For Actuator Hose)
|
96132-30600 |
— | ||
| replacement | |||||
|
9613230600
|
9613230600
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.39 |
||
|
9613230800
|
9613230800
96132-30800
Clip, No.3(For Idle-Up Hose)
|
96132-30800 |
— | ||
| replacement | |||||
|
9613230800
|
9613230800
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.44 |
||
