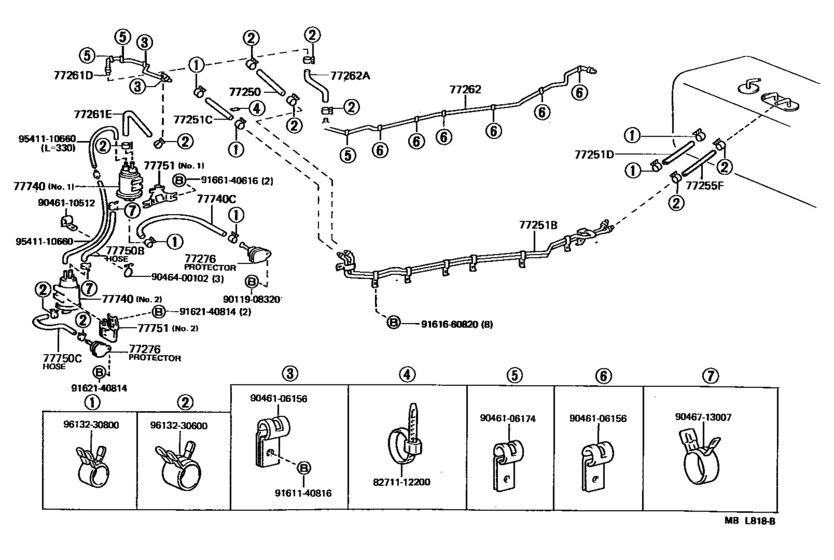

Fuel Tank & Tube ([08.1987 - ] (8708- )IV4) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- Japan
- Frame
- FJ62V
- grade
- STD
- Roof
- SRF
- ENGINE
- 3F
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser VAN
- Fuel Induction
- CBR
- Building Condition
- IV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77250
|
77250
77250-60070 Hose Assy, Fuel Return[08.1987 - 01.1990] FJ62..CBR |
77250-60070 |
US $84.45 |
||
|
77251B
|
77251B
77205-60062 Tube Sub-Assy, Fuel Main[08.1987 - 01.1990] FJ62..CBR |
77205-60062 |
US $155.79 |
||
|
77251C
|
77251C
90447-14050 Hose, Fuel, No.1(For Fuel Main Tube)[08.1987 - 01.1990] FJ62..CBR |
90447-14050 |
US $18.20 |
||
|
77251D
|
77251D
95333-08200 Hose, Fuel, No.2 (For Main Tube, No.3)[08.1987 - 01.1990] FJ62..IV4 長さ＝２０００ |
95333-08200 |
US $39.17 |
||
|
77255F
|
77255F
95333-06200 Hose, Fuel(For Fuel Evaporative Separator)[08.1987 - 01.1990] FJ62..IV4 ＊Ｈ，Ｌ＝２０００ |
95333-06200 |
US $33.92 |
||
| replacement | |||||
|
77255F
|
77255F
95332-06200 Hose, Fuel(For Fuel Evaporative Separator)[08.1987 - 01.1990] FJ62..IV4 ＊Ｈ，Ｌ＝２０００ |
95332-06200 |
US $34.36 |
||
|
77261D
|
77261D
77263-60070 Tube, Fuel Tank To Canister[08.1987 - 01.1990] FJ62 |
77263-60070 |
US $26.64 |
||
|
77261E
|
77261E
95333-06030
Hose, Fuel
[08.1987 - 01.1990] FJ62 ＊Ｈ，Ｌ＝３００ |
95333-06030 |
— | ||
| replacement | |||||
|
77261E
|
77261E
95338-06030 HOSE, FUEL[08.1987 - 01.1990] FJ62 ＊Ｈ，Ｌ＝３００ |
95338-06030 |
from US $10.39 |
||
|
77262
|
77262
77261-60080
Tube, Fuel Emission, No.2
[08.1987 - 01.1990] FJ62 |
77261-60080 |
— | ||
|
77262A
|
77262A
95333-06020
Hose, Fuel(For Injection Pump To Fuel Pipe)
[08.1987 - 01.1990] FJ62..CBR |
95333-06020 |
— | ||
| replacement | |||||
|
77262A
|
77262A
95337-06020 Hose, Differential Pressure Control[08.1987 - 01.1990] FJ62..CBR |
95337-06020 |
from US $10.21 |
||
|
77276
|
77276
77276-60020
Protector, Fuel Hose
[08.1987 - 01.1990] FJ62 |
77276-60020 |
— | ||
|
77740
|
77740
77704-60050
Canister Assy, Charcoal
[08.1987 - 01.1990] FJ62 ＮＯ．１ |
77704-60050 |
— | ||
|
77740
|
77740
77704-60070
Canister Assy, Charcoal
[08.1987 - 01.1990] FJ62..CBU..CBR ＮＯ．２; FJ62..IV4 |
77704-60070 |
— | ||
|
77740C
|
77740C
95333-08030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[08.1987 - 01.1990] FJ62 ＊Ｈ，Ｌ＝３００ |
95333-08030 |
US $11.83 |
||
|
77750B
|
77750B
90910-05171 Hose, Fuel, No.2 (For Charcoal Canister)[08.1987 - 01.1990] FJ62..CBR |
90910-05171 |
US $28.83 |
||
|
77750C
|
77750C
90910-05172
Hose, Fuel, No.3 (For Charcoal Canister)
[08.1987 - 01.1990] FJ62..CBR |
90910-05172 |
— | ||
|
77751
|
77751
77751-32010
Bracket, Charcoal Canister Base
[08.1987 - 01.1990] FJ62 ＮＯ．１ |
77751-32010 |
— | ||
|
77751
|
77751
77751-60080 Bracket, Charcoal Canister Base[08.1987 - 01.1990] FJ62..CBU..CBR ＮＯ．２; FJ62..IV4 |
77751-60080 |
US $27.52 |
||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
US $2.15 |
||
|
9011908320
|
9011908320
90119-08320 Screw Or Bolt(for Valve Rocker Shaft Lock) |
90119-08320 |
US $1.89 |
||
| replacement | |||||
|
9011908320
|
9011908320
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
|
9046106156
|
9046106156
90461-06156 New Genuine Part |
90461-06156 |
US $2.18 |
||
|
9046106174
|
9046106174
90461-06174 New Genuine Part |
90461-06174 |
US $1.31 |
||
|
9046110512
|
9046110512
90461-10512
New Genuine Part
|
90461-10512 |
— | ||
|
9046400102
|
9046400102
90464-00102 Clamp, No.3(For Luggage Door Lock Control Cable) |
90464-00102 |
US $2.20 |
||
|
9046713007
|
9046713007
90467-13007
Clamp Or Clip(For Water By-Pass Hose No.2)
|
90467-13007 |
— | ||
| replacement | |||||
|
9046713007
|
9046713007
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.44 |
||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
|
9161660820
|
9161660820
91616-60820
Bolt(For Clutch Release Cylinder Setting)
|
91616-60820 |
— | ||
| replacement | |||||
|
9161660820
|
9161660820
91611-G0820 Bolt |
91611-G0820 |
from US $1.18 |
||
|
9162140814
|
9162140814
91621-40814 New Genuine Part |
91621-40814 |
US $1.61 |
||
|
9166140616
|
9166140616
91661-40616 New Genuine Part |
91661-40616 |
US $1.43 |
||
|
9541110660
|
9541110660
95411-10660 Hose, Fuel, No.1(For Charcoal Canister) |
95411-10660 |
US $12.23 |
||
| replacement | |||||
|
9541110660
|
9541110660
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9613230600
|
9613230600
96132-30600
Clip(For Actuator Hose)
|
96132-30600 |
— | ||
| replacement | |||||
|
9613230600
|
9613230600
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.39 |
||
|
9613230800
|
9613230800
96132-30800
Clip, No.3(For Idle-Up Hose)
|
96132-30800 |
— | ||
| replacement | |||||
|
9613230800
|
9613230800
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.44 |
||
