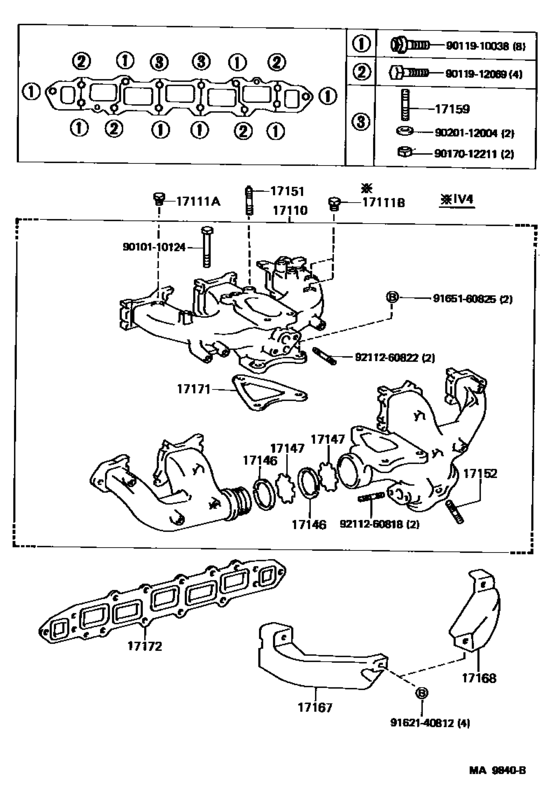

Manifold ([08.1987 - ] (8708- )3F) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- Japan
- Frame
- FJ62V
- grade
- STD
- Roof
- SRF
- ENGINE
- 3F
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser VAN
- Fuel Induction
- CBR
- Building Condition
- IV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17110
|
17110
17100-61111
Manifold Assy
[08.1987 - 01.1990] 3F..FJ62 |
17100-61111 |
— | ||
|
17111A
|
17111A
90345-51025 Plug, W/head Taper Screw, No.2[08.1987 - 01.1990] 3F..FJ62 |
90345-51025 |
US $3.76 |
||
|
17111B
|
17111B
90345-51025 Plug, W/head Taper Screw, No.2[08.1987 - 01.1990] 3F..FJ62..IV4 |
90345-51025 |
US $3.76 |
||
|
17146
|
17146
17151-61010 Ring, Exhaust Manifold[08.1987 - 01.1990] 3F..FJ62 |
17151-61010 |
from US $13.98 |
||
|
17147
|
17147
17152-61010 Spring, Exhaust Manifold[08.1987 - 01.1990] 3F..FJ62 |
17152-61010 |
from US $7.51 |
||
|
17152
|
17152
90116-10087 Bolt, Stud(For Turbocharger)[08.1987 - 01.1990] 3F..FJ62; 12HT,2H..HJ6# |
90116-10087 |
from US $2.24 |
||
|
17159
|
17159
90116-12011 Bolt, Stud(For Manifold To Cylinder Head)[08.1988 - 01.1990] 3F..FJ62 |
90116-12011 |
from US $1.88 |
||
|
17167
|
17167
17167-61040
Insulator, Exhaust Manifold Heat, No.1
[08.1987 - 01.1990] 3F..FJ62 |
17167-61040 |
— | ||
|
17168
|
17168
17168-61020
Insulator, Exhaust Manifold Heat, No.2
[08.1987 - 01.1990] 3F..FJ62 |
17168-61020 |
— | ||
|
17171
|
17171
17171-61020 Gasket, Intake To Exhaust Manifold[08.1987 - 01.1990] 3F..FJ62 |
17171-61020 |
US $9.61 |
||
|
17172
|
17172
17172-61050
Gasket, Manifold To Cylinder Head
[08.1987 - 01.1990] 3F..FJ62 |
17172-61050 |
— | ||
| replacement | |||||
|
17172
|
17172
17172-61070 Gasket, Manifold To Cylinder Head[08.1987 - 01.1990] 3F..FJ62 |
17172-61070 |
from US $30.31 |
||
|
17172
|
17172
17172-61070 Gasket, Manifold To Cylinder Head[01.1990 - 01.1990] 3F..FJ62 |
17172-61070 |
from US $30.31 |
||
|
9010110124
|
9010110124
90101-10124
New Genuine Part
|
90101-10124 |
— | ||
|
9011910038
|
9011910038
90119-10038 New Genuine Part |
90119-10038 |
US $6.45 |
||
|
9011912069
|
9011912069
90119-12069
New Genuine Part
|
90119-12069 |
— | ||
|
9017012211
|
9017012211
90170-12211 NUT |
90170-12211 |
from US $1.93 |
||
|
9020112004
|
9020112004
90201-12004
WASHER
|
90201-12004 |
— | ||
| replacement | |||||
|
9020112004
|
9020112004
90201-12051 WASHER |
90201-12051 |
US $2.69 |
||
|
9162140812
|
9162140812
91621-40812 BOLT |
91621-40812 |
US $1.79 |
||
|
9165160825
|
9165160825
91651-60825
Bolt, Hexagon(For Steering Column Bracket)
|
91651-60825 |
— | ||
| replacement | |||||
|
9165160825
|
9165160825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.82 |
||
|
9211260818
|
9211260818
92112-60818 Bolt, Stud(For Water Pump Coupling) |
92112-60818 |
US $3.58 |
||
|
9211260822
|
9211260822
92112-60822 Bolt, Stud(For Bearing Housing) |
92112-60822 |
US $2.48 |
||
