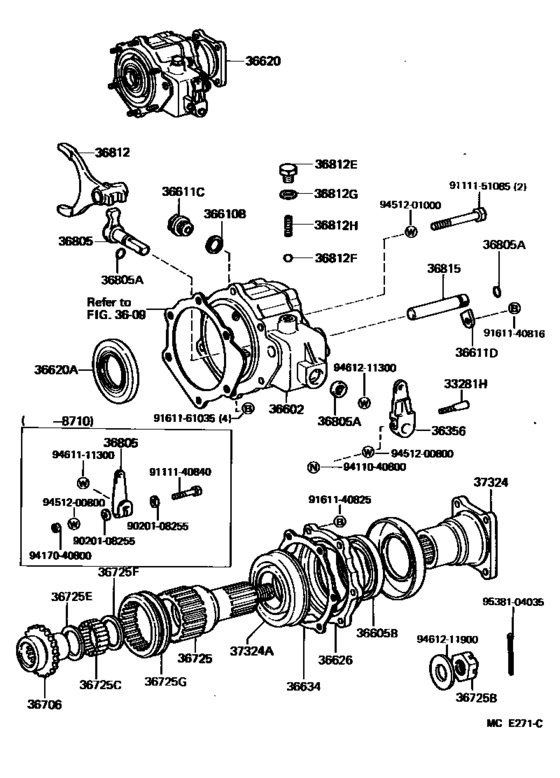

Power Take-Off Case & Gear ([08.1987 - ] (8708- )IV4) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- Japan
- Frame
- FJ62V
- grade
- STD
- Roof
- SRF
- ENGINE
- 3F
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser VAN
- Fuel Induction
- CBR
- Building Condition
- IV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33281H
|
33281H
33281-16020 Pin, Lever Lock (For Shift Outer Lever)[10.1987 - 01.1990] FJ62..IV4 |
33281-16020 |
from US $1.31 |
||
|
36356
|
36356
36355-60010
Lever, High & Low Shift Link
[08.1987 - 10.1987] FJ62..IV4 |
36355-60010 |
— | ||
|
36356
|
36356
36355-60011 Lever, High & Low Shift Link,no.1(For Center Power Take-Off)[10.1987 - 01.1990] FJ62..IV4 |
36355-60011 |
US $23.88 |
||
|
36602
|
36602
36602-60020 Case Sub-Assy, Center Power Take-Off[08.1987 - 10.1987] FJ62..IV4 |
36602-60020 |
US $324.69 |
||
|
36602
|
36602
36612-60021 Case Sub-Assy, Center Power Take-Off[10.1987 - 12.1988] FJ62..IV4 |
36612-60021 |
US $87.36 |
||
| replacement | |||||
|
36602
|
36602
36612-60022 Case Sub-Assy, Center Power Take-Off[10.1987 - 12.1988] FJ62..IV4 |
36612-60022 |
US $87.36 |
||
|
36602
|
36602
36612-60022 Case Sub-Assy, Center Power Take-Off[12.1988 - 01.1990] FJ62..IV4 |
36612-60022 |
US $87.36 |
||
|
36605B
|
36605B
90311-47034
Seal, Oil (For Center Power Take-Off Flange)
[08.1987 - 01.1990] FJ62..IV4 |
90311-47034 |
— | ||
|
36610B
|
36610B
90430-18008 Gasket[08.1987 - 01.1990] FJ62..IV4 厚さ＝２ |
90430-18008 |
from US $0.84 |
||
| replacement | |||||
|
36610B
|
36610B
90430-T0021 Gasket(For Manual Transmission Filler Plug)[08.1987 - 01.1990] FJ62..IV4 厚さ＝２ |
90430-T0021 |
US $0.99 |
||
|
36611C
|
36611C
90341-18006 Plug (No magnet)[08.1987 - 01.1990] FJ62..IV4 |
90341-18006 |
from US $3.23 |
||
|
36611D
|
36611D
36726-60010
Plate, Lock (For Transfer High & Low Shift Fork Shaft)
[08.1987 - 01.1990] FJ62..IV4 |
36726-60010 |
— | ||
|
36620
|
36620
36620-60030
Power Take-Off Assy, Center
[08.1987 - 10.1987] FJ62..IV4 |
36620-60030 |
— | ||
| replacement | |||||
|
36620
|
36620
36620-60032
Power Take-Off Assy, Center
[08.1987 - 10.1987] FJ62..IV4 |
36620-60032 |
— | ||
|
36620
|
36620
36620-60031 Power Take-Off Assy, Center[10.1987 - 12.1988] FJ62..IV4 |
36620-60031 |
US $752.75 |
||
| replacement | |||||
|
36620
|
36620
36620-60032
Power Take-Off Assy, Center
[10.1987 - 12.1988] FJ62..IV4 |
36620-60032 |
— | ||
|
36620
|
36620
36620-60032
Power Take-Off Assy, Center
[12.1988 - 01.1990] FJ62..IV4 |
36620-60032 |
— | ||
|
36620A
|
36620A
90311-45005 Seal, Type T Oil (For Center Power Take-Off)[08.1987 - 01.1990] FJ62..IV4 |
90311-45005 |
US $4.80 |
||
|
36626
|
36626
36626-60010 Retainer, Center Power Take-Off Bearing[08.1987 - 01.1990] FJ62..IV4 |
36626-60010 |
US $62.03 |
||
|
36634
|
36634
36634-60010
Gasket, Center Power Take-Off Bearing Retainer
[08.1987 - 01.1990] FJ62..IV4 |
36634-60010 |
— | ||
|
36706
|
36706
36716-60030
Hub Sub-Assy, Center Power Take-Off Clutch
[08.1987 - 01.1990] FJ62..IV4 |
36716-60030 |
— | ||
|
36725
|
36725
36725-60020
Shaft, Center Power Take-Off Output
[08.1987 - 01.1990] FJ62..IV4 |
36725-60020 |
— | ||
|
36725B
|
36725B
94146-41900
Nut, Castle(For Center Power Take-Off Output Shaft)
[08.1987 - 01.1990] FJ62..IV4 |
94146-41900 |
— | ||
|
36725C
|
36725C
90361-03017 Bearing Or Roller(For Counter Gear Front)[08.1987 - 01.1990] FJ62..IV4 |
90361-03017 |
US $1.79 |
||
|
36725E
|
36725E
90560-39436
Spacer(For Center Power Take-Off Shaft)
[08.1987 - 01.1990] FJ62..IV4 |
90560-39436 |
— | ||
|
36725F
|
36725F
90560-40437
Spacer(For Center Power Take-Off Shaft)
[08.1987 - 01.1990] FJ62..IV4 |
90560-40437 |
— | ||
|
36725G
|
36725G
36235-60011
Sleeve, Transfer High & Low Clutch
[08.1987 - 01.1990] FJ62..IV4 |
36235-60011 |
— | ||
|
36805
|
36805
36805-60010 Lever Sub-Assy, Power Take-Off Inner Shift[08.1987 - 10.1987] FJ62..IV4 |
36805-60010 |
US $19.66 |
||
|
36805
|
36805
36805-60011 Lever Sub-Assy, Power Take-Off Inner Shift[10.1987 - 01.1990] FJ62..IV4 |
36805-60011 |
US $24.32 |
||
|
36805A
|
36805A
90301-08029
Ring, O (For Shift Fork Shaft)
[08.1987 - 10.1987] FJ62..IV4 |
90301-08029 |
— | ||
|
36805A
|
36805A
90311-13001 Seal, Oil(For Transmission Case)[10.1987 - 01.1990] FJ62..IV4 |
90311-13001 |
from US $3.23 |
||
|
36812
|
36812
36812-60010 Fork, Power Take-Off Shift, No.2[08.1987 - 01.1990] FJ62..IV4 |
36812-60010 |
US $49.21 |
||
|
36812E
|
36812E
90341-12069
Bolt, Lock(For Transfer Front Drive Shift Shaft Lock)
[08.1987 - 01.1990] FJ62..IV4 |
90341-12069 |
— | ||
|
36812F
|
36812F
90360-10003 Ball(For Transmission Oil Pump Cover)[08.1987 - 01.1990] FJ62..IV4 |
90360-10003 |
from US $1.16 |
||
|
36812G
|
36812G
90430-12030 Gasket, Shift Fork Lock Bolt[08.1987 - 01.1990] FJ62..IV4 |
90430-12030 |
US $1.49 |
||
|
36812H
|
36812H
90501-12033
Spring, Compression (For Shift Detent Ball Low Side)
[08.1987 - 01.1990] FJ62..IV4 |
90501-12033 |
— | ||
|
36815
|
36815
36815-60010 Shaft, Power Take-Off Fork, No.2[08.1987 - 01.1990] FJ62..IV4 |
36815-60010 |
US $17.18 |
||
|
37324
|
37324
37324-60060
Flange, Universal Joint (For Center Power Take-Off)
[08.1987 - 01.1990] FJ62..IV4 |
37324-60060 |
— | ||
|
37324A
|
37324A
90363-35021
Bearing (For Input Shaft Front)
[08.1987 - 01.1990] FJ62..IV4 |
90363-35021 |
— | ||
|
9020108255
|
9020108255
90201-08255 Washer, Plate (For Low Servo Piston Return Spring) |
90201-08255 |
US $2.18 |
||
|
9111140840
|
9111140840
91111-40840
New Genuine Part
|
91111-40840 |
— | ||
| replacement | |||||
|
9111140840
|
9111140840
91111-50840 New Genuine Part |
91111-50840 |
US $2.48 |
||
|
9111151085
|
9111151085
91111-51085 New Genuine Part |
91111-51085 |
US $4.66 |
||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
|
9161140825
|
9161140825
91611-40825
Bolt(For Clutch Release Cylinder Setting)
|
91611-40825 |
— | ||
| replacement | |||||
|
9161140825
|
9161140825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.08 |
||
|
9161161035
|
9161161035
91611-61035
BOLT
|
91611-61035 |
— | ||
| replacement | |||||
|
9161161035
|
9161161035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.10 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.87 |
||
|
9417040800
|
9417040800
94170-40800
New Genuine Part
|
94170-40800 |
— | ||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.68 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.78 |
||
|
9461111300
|
9461111300
94611-11300
Washer(For Outer Lever Oil Setting)
|
94611-11300 |
— | ||
|
9461211300
|
9461211300
94612-11300 Washer(For Outer Lever Oil Setting) |
94612-11300 |
from US $0.68 |
||
|
9461211900
|
9461211900
94612-11900 Washer, Plate (For Rear Drive Pinion) |
94612-11900 |
US $8.15 |
||
|
9538104035
|
9538104035
95381-04035 PIN |
95381-04035 |
from US $0.72 |
||
