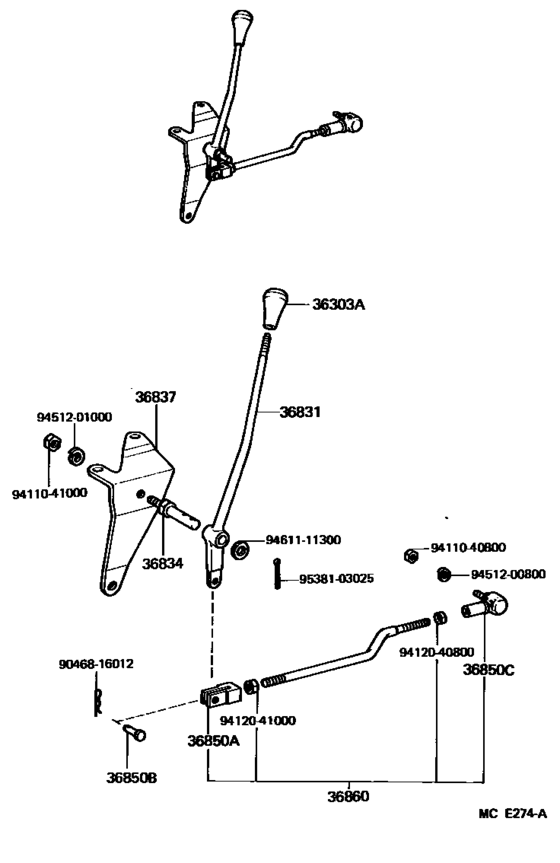

Power Take-Off Lever & Link ([08.1987 - ] (8708- )IV4) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- Japan
- Frame
- FJ62V
- grade
- STD
- Roof
- SRF
- ENGINE
- 3F
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser VAN
- Fuel Induction
- CBR
- Building Condition
- IV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
36303A
|
36303A
36303-60060
Knob Sub-Assy, Shift Lever (For Power Take-Off)
[08.1987 - 01.1990] FJ62..IV4 |
36303-60060 |
— | ||
|
36831
|
36831
36831-60061 Lever, Power Take-Off Shift[08.1987 - 01.1990] FJ62..IV4 |
36831-60061 |
US $49.21 |
||
|
36834
|
36834
36834-60010
Shaft, Lever Support
[08.1987 - 01.1990] FJ62..IV4 |
36834-60010 |
— | ||
|
36837
|
36837
36837-60031 Bracket Sub-Assy, Power Take-Off Shift Lever[08.1987 - 01.1990] FJ62..IV4 |
36837-60031 |
US $340.70 |
||
|
36850A
|
36850A
33724-60010
Clevis (For Power Take-Off Shift Lever)
[08.1987 - 01.1990] FJ62..IV4 |
33724-60010 |
— | ||
|
36850B
|
36850B
90240-08028 Pin, W/hole (For Column Shift Gear Selecting Rod)[08.1987 - 01.1990] FJ62..IV4 |
90240-08028 |
US $2.87 |
||
|
36850C
|
36850C
33740-26010 End Assy, Connecting Rod, No.1(For Column Shift)[08.1987 - 01.1990] FJ62..IV4; FJ62,HJ6#..CBU..(CBR,DSL,TD) |
33740-26010 |
from US $13.05 |
||
|
36860
|
36860
36860-60032 Rod Assy, Center Power Take-Off Shift[08.1987 - 01.1990] FJ62..IV4 |
36860-60032 |
US $56.64 |
||
|
9046816012
|
9046816012
90468-16012 Pin, Sub Seat Cushion Pin |
90468-16012 |
from US $0.87 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.87 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.87 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.61 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.74 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.68 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.78 |
||
|
9461111300
|
9461111300
94611-11300
Washer(For Outer Lever Oil Setting)
|
94611-11300 |
— | ||
|
9538103025
|
9538103025
95381-03025 PIN |
95381-03025 |
from US $0.76 |
||
