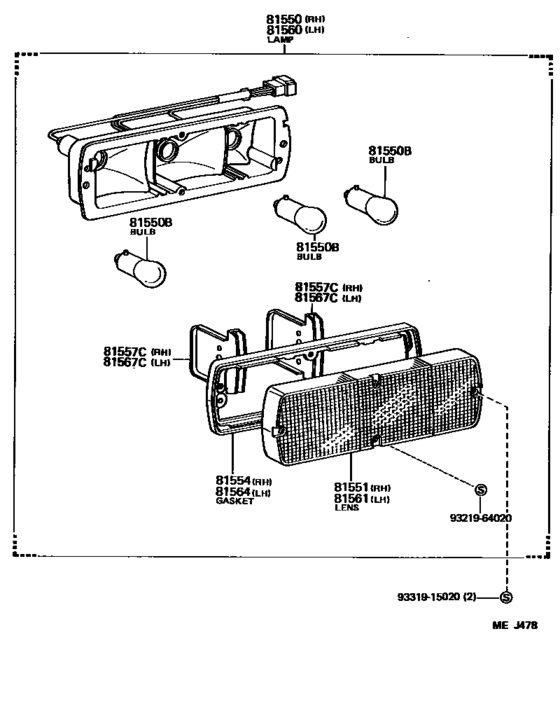

Rear Combination Lamp ([08.1987 - ] (8708- )IV4) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- Japan
- Frame
- FJ62V
- grade
- STD
- Roof
- SRF
- ENGINE
- 3F
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser VAN
- Fuel Induction
- CBR
- Building Condition
- IV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-60183 Lamp Assy, Rear Combination, Rh[08.1987 - 01.1990] FJ62..IV4 |
81550-60183 |
US $158.70 |
||
|
81550B
|
81550B
99132-11230 Bulb, Fog Lamp[08.1987 - 01.1990] FJ62 １２Ｖ ２３Ｗ |
99132-11230 |
US $3.05 |
||
|
81550B
|
81550B
99132-21210 Bulb, Cornering Lamp[08.1987 - 01.1990] FJ62 １２Ｖ ２１／５Ｗ |
99132-21210 |
from US $2.74 |
||
|
81551
|
81551
81551-26040
Lens, Rear Combination Lamp, Rh
[08.1987 - 01.1990] FJ62..IV4 |
81551-26040 |
— | ||
| replacement | |||||
|
81551
|
81551
81551-35061 Lens, Rear Combination Lamp, Rh[08.1987 - 01.1990] FJ62..IV4 |
81551-35061 |
from US $14.10 |
||
|
81554
|
81554
81552-26040 Gasket, Rear Combination Lamp Lens, Rh[08.1987 - 01.1990] FJ62..IV4 |
81552-26040 |
from US $11.29 |
||
|
81557C
|
81557C
81557-26040 Cover, Rear Combination Lamp, Rh[08.1987 - 01.1990] FJ62..IV4 |
81557-26040 |
US $5.91 |
||
|
81560
|
81560
81560-60083 Lamp Assy, Rear Combination, Lh[08.1987 - 01.1990] FJ62..IV4 |
81560-60083 |
US $158.70 |
||
|
81561
|
81561
81561-26040
Lens, Rear Combination Lamp, Lh
[08.1987 - 01.1990] FJ62..IV4 |
81561-26040 |
— | ||
| replacement | |||||
|
81561
|
81561
81561-35061 Lens, Rear Combination Lamp, Lh[08.1987 - 01.1990] FJ62..IV4 |
81561-35061 |
from US $17.98 |
||
|
81564
|
81564
81562-26040 Gasket, Rear Combination Lamp Body, Lh[08.1987 - 01.1990] FJ62..IV4 |
81562-26040 |
from US $11.02 |
||
|
81567C
|
81567C
81557-26040 Cover, Rear Combination Lamp, Rh[08.1987 - 01.1990] FJ62..IV4 |
81557-26040 |
US $5.91 |
||
|
9321964020
|
9321964020
93219-64020
Screw
|
93219-64020 |
— | ||
| replacement | |||||
|
9321964020
|
9321964020
81559-10050 Screw |
81559-10050 |
US $5.73 |
||
|
9331915020
|
9331915020
93319-15020 SCREW |
93319-15020 |
US $1.75 |
||
