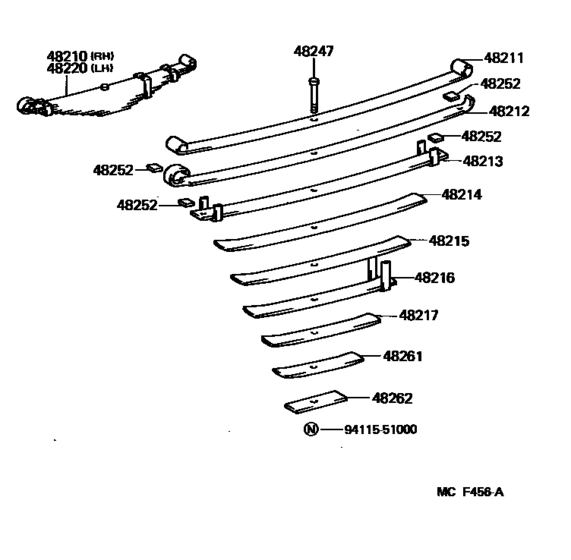

Rear Spring & Shock Absorber ([08.1987 - ] (8708- )CBR ; (8708- )HJ60..STD) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- Japan
- Frame
- FJ62V
- grade
- STD
- Roof
- SRF
- ENGINE
- 3F
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser VAN
- Fuel Induction
- CBR
- Building Condition
- IV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48210
|
48210
48210-60540 Spring Assy, Rear Rh[08.1987 - 01.1990] FJ62..IV4 |
48210-60540 |
US $1,233.23 |
||
|
48211
|
48211
48211-60540 Leaf, Rear Spring, No.1[08.1987 - 01.1990] FJ62..IV4 |
48211-60540 |
US $141.23 |
||
|
48212
|
48212
48212-60540 Leaf, Rear Spring, No.2[08.1987 - 01.1990] FJ62..IV4 |
48212-60540 |
US $199.47 |
||
|
48213
|
48213
48202-60540 Leaf, Rear Spring, No.3[08.1987 - 01.1990] FJ62..IV4 |
48202-60540 |
US $183.46 |
||
|
48214
|
48214
48214-60540 Leaf, Rear Spring, No.4[08.1987 - 01.1990] FJ62..IV4 |
48214-60540 |
US $145.60 |
||
|
48215
|
48215
48215-60540 Leaf, Rear Spring, No.5[08.1987 - 01.1990] FJ62..IV4 |
48215-60540 |
US $133.95 |
||
|
48216
|
48216
48216-60540 Leaf, Rear Spring, No.6[08.1987 - 01.1990] FJ62..IV4 |
48216-60540 |
US $109.20 |
||
|
48217
|
48217
48203-60540 Leaf, Rear Spring, No.7[08.1987 - 01.1990] FJ62..IV4 |
48203-60540 |
US $107.74 |
||
|
48220
|
48220
48210-60540 Spring Assy, Rear Rh[08.1987 - 01.1990] FJ62..IV4 |
48210-60540 |
US $1,233.23 |
||
|
48247
|
48247
48247-60540 Bolt, Rear Spring, Center[08.1987 - 01.1990] FJ62..IV4 |
48247-60540 |
US $8.88 |
||
|
9411551000
|
9411551000
94115-51000 Nut(For Steering Center Arm) |
94115-51000 |
US $2.33 |
||
| replacement | |||||
|
9411551000
|
9411551000
94110-51000 Nut(For Steering Center Arm) |
94110-51000 |
from US $0.74 |
||
