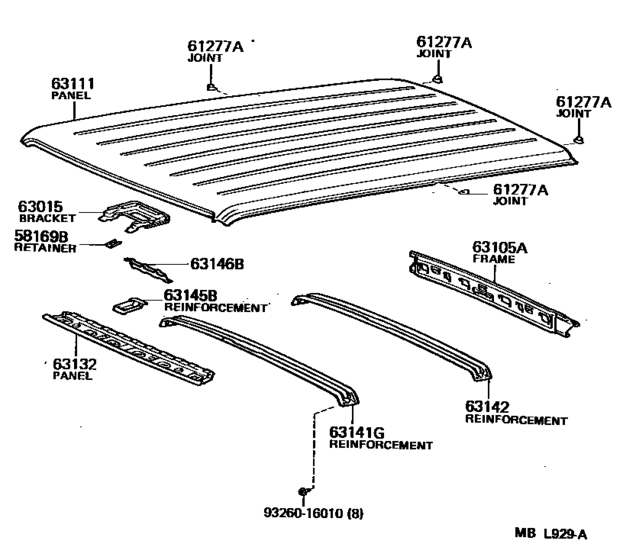

Roof Panel & Back Panel ([08.1987 - ] (8708- )SRF) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- Japan
- Frame
- FJ62V
- grade
- STD
- Roof
- SRF
- ENGINE
- 3F
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser VAN
- Fuel Induction
- CBR
- Building Condition
- IV4
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61277A
|
61277A
61277-90K00 Joint, Roof Drip Channel[08.1987 - 01.1990] FJ62,HJ60..STD |
61277-90K00 |
from US $2.76 |
||
|
63111
|
63111
63111-90A07 Panel, Roof[08.1987 - 01.1990] FJ62..IV4 |
63111-90A07 |
US $1,078.90 |
||
|
63132
|
63132
63132-90A03 Panel, Windshield Header, Inner[08.1987 - 01.1990] FJ62..IV4 |
63132-90A03 |
US $211.12 |
||
|
63141G
|
63141G
63123-90A00 Reinforcement, Roof Panel, No.1[08.1987 - 01.1990] FJ62..IV4 |
63123-90A00 |
US $106.29 |
||
|
63142
|
63142
63124-90A00 Reinforcement, Roof Panel, No.2[08.1987 - 01.1990] FJ62..IV4 |
63124-90A00 |
US $106.29 |
||
|
9326016010
|
9326016010
93260-16010
New Genuine Part
|
93260-16010 |
— | ||
| replacement | |||||
|
9326016010
|
9326016010
93260-56010 SCREW |
93260-56010 |
US $1.25 |
||
