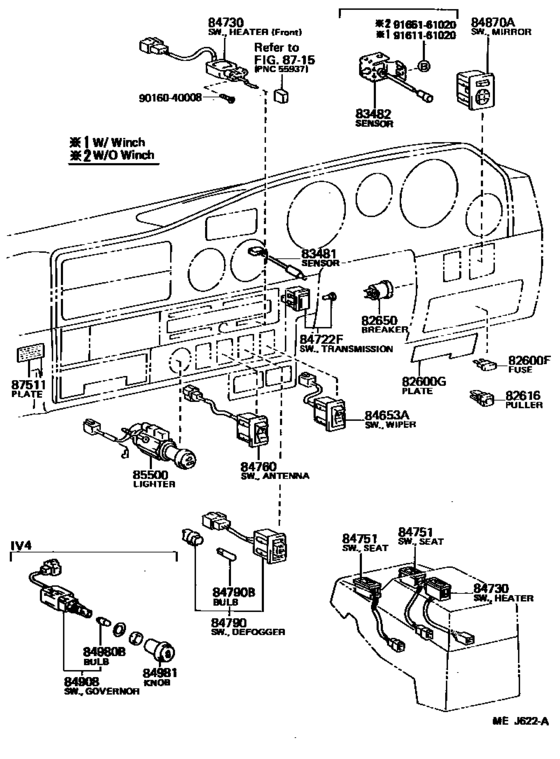

Switch & Relay & Computer ([08.1987 - ] (8708- )) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- Japan
- Frame
- FJ62V
- grade
- STD
- Roof
- SRF
- ENGINE
- 3F
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser VAN
- Fuel Induction
- CBR
- Building Condition
- IV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82600F
|
82600F
90982-09002 Fusible Link[08.1987 - 01.1990] HJ6#;FJ62..IV4 １０Ａ |
90982-09002 |
from US $0.80 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[08.1987 - 01.1990] FJ62..IV4 １５Ａ |
90982-09003 |
from US $0.87 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[08.1987 - 01.1990] FJ62..CBR ７．５Ａ |
90982-09005 |
from US $0.97 |
||
|
82600G
|
82600G
82683-90A19 Plate, Caution(For Fuse)[08.1987 - 01.1990] FJ62..IV4 |
82683-90A19 |
US $4.08 |
||
|
82616
|
82616
82616-12010 Lever, Fuse[08.1987 - 01.1990] FJ62,HJ6# |
82616-12010 |
US $3.40 |
||
|
82650
|
82650
82650-20011 Breaker Assy, Wiring Circuit, No.1[08.1987 - 01.1990] FJ62..IV4 ３０Ａ |
82650-20011 |
US $15.77 |
||
|
82650
|
82650
82650-35010 Breaker Assy, Wiring Circuit, No.1[08.1987 - 01.1990] FJ62..IV4 ２０Ａ |
82650-35010 |
US $14 |
||
|
84730
|
84730
84730-90A00 Switch Assy, Heater Blower[08.1987 - 09.1989] FJ62,HJ6# FRONT |
84730-90A00 |
US $48.78 |
||
| replacement | |||||
|
84730
|
84730
84730-90A02
Switch Assy, Heater Blower
[08.1987 - 09.1989] FJ62,HJ6# FRONT |
84730-90A02 |
— | ||
|
84730
|
84730
84730-90A02
Switch Assy, Heater Blower
[09.1989 - 01.1990] FJ62,HJ6# FRONT |
84730-90A02 |
— | ||
|
84908
|
84908
84908-60010 Switch Sub-Assy, Governor Control[08.1987 - 01.1990] FJ62..IV4 |
84908-60010 |
US $68.58 |
||
|
84980B
|
84980B
90981-11009
Bulb, Fuel Receiver Gage
[08.1987 - 01.1990] FJ62..IV4 |
90981-11009 |
— | ||
|
84981
|
84981
84981-60010 Knob, Governor Control Switch[08.1987 - 01.1990] FJ62..IV4 |
84981-60010 |
US $5.97 |
||
|
9016040008
|
9016040008
90160-40008
New Genuine Part
|
90160-40008 |
— | ||
|
9161161020
|
9161161020
91611-61020 Bolt(For Transaxle & Engine Setting) |
91611-61020 |
US $0.68 |
||
| replacement | |||||
|
9161161020
|
9161161020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
from US $1.05 |
||
|
9165161020
|
9165161020
91651-61020 Bolt, No.1 (For Center Support Bearing) |
91651-61020 |
US $2.33 |
||
