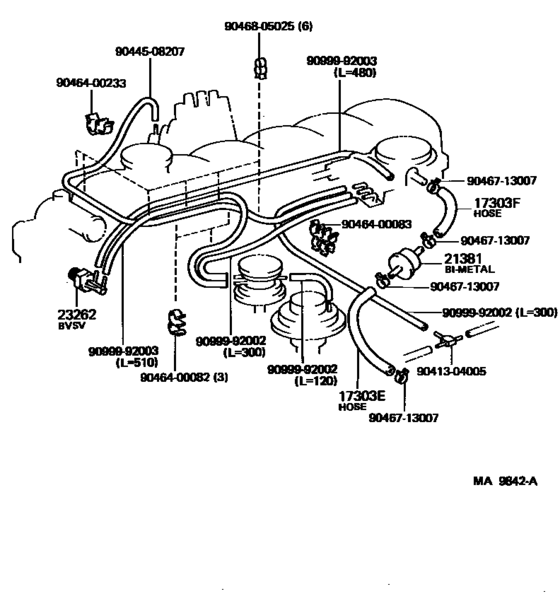

Vacuum Piping ([08.1987 - ] (8708- )3F) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- Japan
- Frame
- FJ62V
- grade
- STD
- Roof
- SRF
- ENGINE
- 3F
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser VAN
- Fuel Induction
- CBR
- Building Condition
- IV4
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17303E
|
17303E
90445-14084 Hose, No.1(For Air Pipe)[12.1987 - 01.1990] 3F..FJ62 |
90445-14084 |
US $5.53 |
||
|
17303F
|
17303F
90445-14102
Hose, No.2(For Air Pipe)
[12.1987 - 01.1990] 3F..FJ62 |
90445-14102 |
— | ||
|
21381
|
21381
21381-71040
Bimetal, Thermostatic
[08.1987 - 01.1990] 3F..FJ62 |
21381-71040 |
— | ||
|
23262
|
23262
90925-05041
Valve, Bimetal Vacuum Switching, No.1
[08.1987 - 01.1990] 3F..FJ62 |
90925-05041 |
— | ||
|
9041304005
|
9041304005
90413-04005 Way, 3, No.1 (For Front Drive Shift) |
90413-04005 |
from US $3.40 |
||
|
9044508207
|
9044508207
90445-08207
Hose (For Vacuum Tube)
|
90445-08207 |
— | ||
| replacement | |||||
|
9044508207
|
9044508207
90999-92006 Hose, Vacuum, No.1 (For Front Drive Shift) |
90999-92006 |
from US $19.61 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
US $1.79 |
||
|
9046400083
|
9046400083
90464-00083
New Genuine Part
|
90464-00083 |
— | ||
|
9046400233
|
9046400233
90464-00233
Clamp (For Idle Up Divice), No.1
|
90464-00233 |
— | ||
|
9046713007
|
9046713007
90467-13007
Clamp Or Clip(For Water By-Pass Hose No.2)
|
90467-13007 |
— | ||
| replacement | |||||
|
9046713007
|
9046713007
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.44 |
||
|
9046805025
|
9046805025
90468-05025
Clip(For Carburetor Fuel Hose)
|
90468-05025 |
— | ||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9099992003
|
9099992003
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
