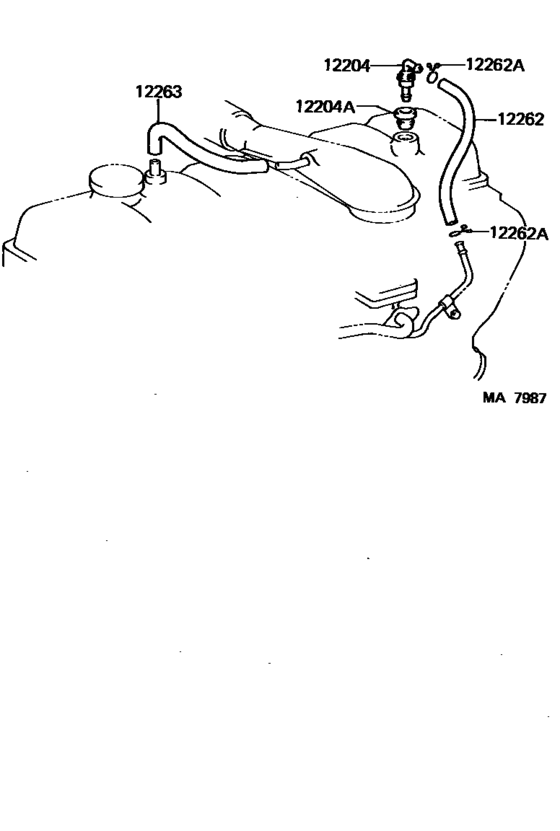

Ventilation Hose ([08.1987 - ] (8708- )3F) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- Japan
- Frame
- FJ62V
- grade
- STD
- Roof
- SRF
- ENGINE
- 3F
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser VAN
- Fuel Induction
- CBR
- Building Condition
- IV4
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12204
|
12204
12204-35020 Valve Sub-Assy, Ventilation[08.1987 - 01.1990] 3F..FJ62 |
12204-35020 |
from US $19.44 |
||
|
12204
|
12204
12204-35040 Valve Sub-Assy, Ventilation[01.1990 - 01.1990] 3F#..FJ62 |
12204-35040 |
from US $14.02 |
||
|
12204A
|
12204A
90480-18001 Grommet(For Ventilation System)[08.1987 - 01.1990] 3F#..FJ62 |
90480-18001 |
from US $3.71 |
||
|
12262
|
12262
12261-61050
Hose, Ventilation, No.2
[08.1987 - 01.1990] 3F..FJ62 |
12261-61050 |
— | ||
|
12262
|
12262
12261-61070
Hose, Ventilation, No.2
[01.1990 - 01.1990] 3F..FJ62 |
12261-61070 |
— | ||
|
12262A
|
12262A
90467-15120 Clip Or Clamp(For Ventilation Hose)[08.1987 - 01.1990] 3F#..FJ62 |
90467-15120 |
from US $0.93 |
||
|
12263
|
12263
12262-61010
Hose, Ventilation, No.3
[08.1987 - 01.1990] 3F..FJ62 |
12262-61010 |
— |
