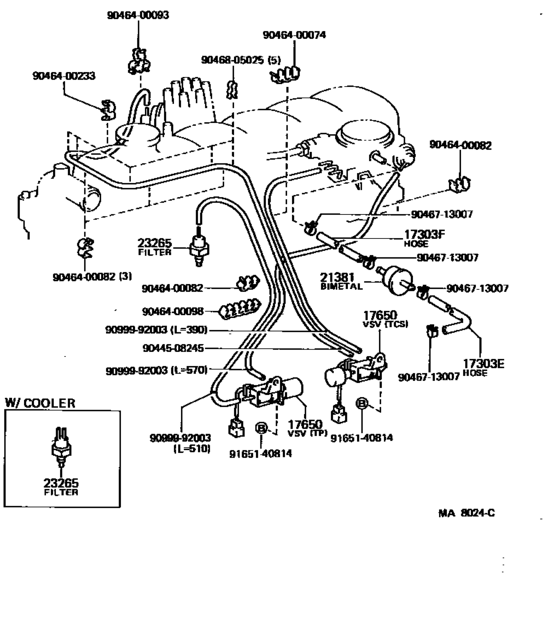

Vacuum Piping ([11.1984 - ] (8411- )3F..5F..ME) Diagram Toyota LAND CRUISER
- Year
- 1986 - 1990
- Sales region
- General
- Frame
- FJ75
- grade
- LX
- body
- PIC
- ENGINE
- 3F
- TRANSMISSION
- MTM
- DESTINATION
- ME
- Model
- LAND CRUISER 70
- From
- 08.1986
- To
- 01.1990
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
- Fuel Induction
- CBR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17303E
|
17303E
90910-05173
Hose, No.1(For Air Pipe)
[11.1984 - 01.1990] 3F..FJ7#..ME; 3F..FJ7#..LHD..GEN W/OUTER VENT CONTROL |
90910-05173 |
— | ||
|
17303F
|
17303F
90445-14102
Hose, No.2(For Air Pipe)
[11.1984 - 01.1990] 3F..FJ7#..ARL,ME; 3F..FJ7#..GEN W/OUTER VENT CONTROL |
90445-14102 |
— | ||
|
17650
|
17650
89570-12180 Valve Assy, Vacuum SwitchingVACUUM SWITCHING [10.1985 - 01.1990] 3F..FJ7#..5F..ME TP |
89570-12180 |
US $138.32 |
||
|
17650
|
17650
89570-35200
Valve Assy, Vacuum Switching
[10.1985 - 01.1990] 3F..FJ70,73..4FC..ME; 3F..FJ7#..5F..ME TCS |
89570-35200 |
— | ||
|
21381
|
21381
21381-71040
Bimetal, Thermostatic
[11.1984 - 01.1990] 3F..FJ7#..ARL,ME; 3F..FJ7#..GEN W/OUTER VENT CONTROL |
21381-71040 |
— | ||
|
23265
|
23265
90917-11022 Filter, Gas, No.1[11.1984 - 01.1990] 3F..FJ7#..5F..ME; 3F..FJ70,73..4FC..ME W/COOLER; 3F..FJ7#..GEN W/COOLER OR W/HOT AIR INTAKE |
90917-11022 |
from US $17.14 |
||
|
23265
|
23265
90917-11023 Filter, Gas, No.1[11.1984 - 01.1990] 3F..FJ7#..5F..ME W/COOLER; 3F..FJ7#..GEN W/COOLER & HOT AIR INTAKE |
90917-11023 |
from US $23.41 |
||
|
9044508245
|
9044508245
90445-08245 Hose, Fuel, No.1(For Charcoal Canister) |
90445-08245 |
US $26.35 |
||
| replacement | |||||
|
9044508245
|
9044508245
90999-92006 Hose, Vacuum, No.1 (For Front Drive Shift) |
90999-92006 |
from US $19.61 |
||
|
9046400074
|
9046400074
90464-00074 Joint, No.1 (For Idle Up Divice) |
90464-00074 |
US $2.15 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
US $1.79 |
||
|
9046400093
|
9046400093
90464-00093
Clamp, Resistive Cord, No.1
|
90464-00093 |
— | ||
|
9046400098
|
9046400098
90464-00098 New Genuine Part |
90464-00098 |
US $4.37 |
||
|
9046400233
|
9046400233
90464-00233
Clamp (For Idle Up Divice), No.1
|
90464-00233 |
— | ||
|
9046713007
|
9046713007
90467-13007
Clamp Or Clip(For Water By-Pass Hose No.2)
|
90467-13007 |
— | ||
| replacement | |||||
|
9046713007
|
9046713007
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.44 |
||
|
9046805025
|
9046805025
90468-05025
Clip(For Carburetor Fuel Hose)
|
90468-05025 |
— | ||
|
9099992003
|
9099992003
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.20 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
