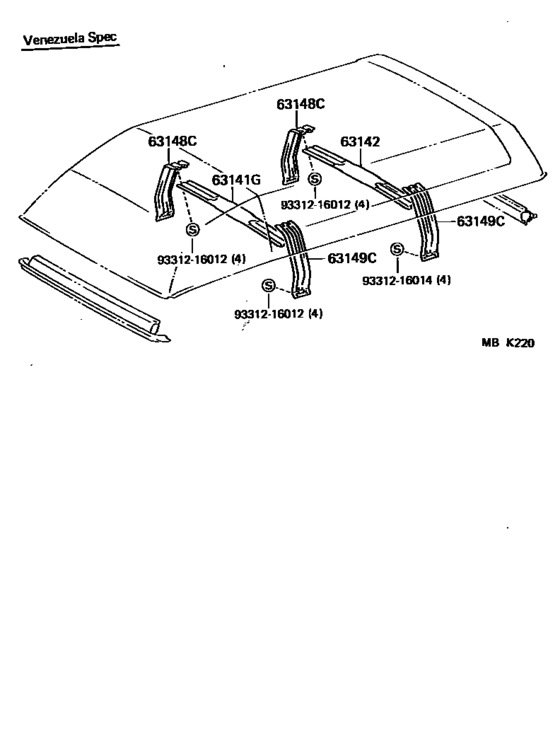

Roof Panel & Back Panel ([10.1985 - ] (8510- )FJ75..LHD..HT..5F) Diagram Toyota LAND CRUISER
- Year
- 1984 - 1990
- Sales region
- General
- Frame
- FJ75
- grade
- STD
- body
- HT
- ENGINE
- 3F
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 70
- From
- 11.1984
- To
- 01.1990
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
- Fuel Induction
- CBR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63141G
|
63141G
63103-90K00 Reinforcement Sub-Assy, Roof PanelROOF PANEL [11.1984 - 01.1990] BJ75,FJ75,HJ75..HT |
63103-90K00 |
US $117.94 |
||
| replacement | |||||
|
63141G
|
63141G
63103-60040 Reinforcement Sub-Assy, Roof Panel[11.1984 - 01.1990] BJ75,FJ75,HJ75..HT |
63103-60040 |
US $93.18 |
||
|
63141G
|
63141G
63103-90K01
Reinforcement Sub-Assy, Roof Panel
[10.1985 - 01.1990] FJ75..HT..5F..GEN VENEZUELA SPEC |
63103-90K01 |
— | ||
|
63142
|
63142
63104-90K00 Reinforcement Sub-Assy, Roof Panel, No.2ROOF PANEL, NO.2 [11.1984 - 01.1990] BJ75,FJ75,HJ75..HT |
63104-90K00 |
US $117.94 |
||
| replacement | |||||
|
63142
|
63142
63104-60050 Reinforcement Sub-Assy, Roof Panel, No.2[11.1984 - 01.1990] BJ75,FJ75,HJ75..HT |
63104-60050 |
US $90.27 |
||
|
63142
|
63142
63104-90K01
Reinforcement Sub-Assy, Roof Panel, No.2
[10.1985 - 01.1990] FJ75..HT..5F..GEN VENEZUELA SPEC |
63104-90K01 |
— | ||
|
63148C
|
63148C
63148-90K01
Reinforcement, Roof Panel Side, Rh
[10.1985 - 01.1990] FJ75..HT..5F..GEN VENEZUELA SPEC |
63148-90K01 |
— | ||
|
63149C
|
63149C
63148-90K01
Reinforcement, Roof Panel Side, Rh
[10.1985 - 01.1990] FJ75..HT..5F..GEN VENEZUELA SPEC |
63148-90K01 |
— | ||
|
9331216012
|
9331216012
93312-16012 New Genuine Part |
93312-16012 |
US $1.46 |
||
|
9331216014
|
9331216014
93312-16014 SCREW W/WASHER |
93312-16014 |
US $0.83 |
||
