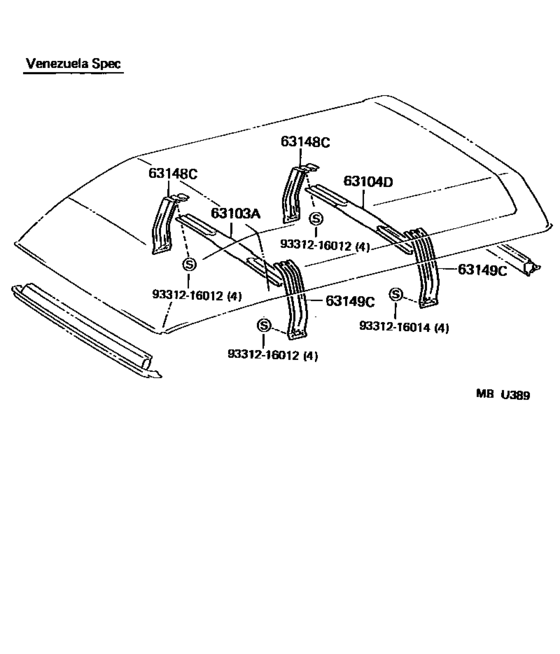

Roof Panel & Back Panel ([01.1990 - 09.2000] (9001-0009)FJ75,FZJ75..LHD..HT..5F..GEN..CBR) Diagram Toyota LAND CRUISER
- Year
- 1990 - 1992
- Sales region
- General
- Frame
- FJ75
- grade
- STD
- body
- HT
- ENGINE
- 3F
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 70
- From
- 01.1990
- To
- 08.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
- Fuel Induction
- CBR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63103A
|
63103A
63103-90K00 Reinforcement Sub-Assy, Roof PanelROOF PANEL [01.1990 - 05.1993] FJ75,FZJ75,HZJ75,PZJ75..HT |
63103-90K00 |
US $117.94 |
||
| replacement | |||||
|
63103A
|
63103A
63103-60040 Reinforcement Sub-Assy, Roof Panel[01.1990 - 05.1993] FJ75,FZJ75,HZJ75,PZJ75..HT |
63103-60040 |
US $93.18 |
||
|
63103A
|
63103A
63103-90K01
Reinforcement Sub-Assy, Roof Panel
[01.1990 - 10.1992] FJ75,FZJ75..LHD..HT..5F..GEN VENEZUELA SPEC |
63103-90K01 |
— | ||
|
63104D
|
63104D
63104-90K00 Reinforcement Sub-Assy, Roof Panel, No.2ROOF PANEL, NO.2 [01.1990 - 05.1993] FJ75,FZJ75,HZJ75,PZJ75..HT |
63104-90K00 |
US $117.94 |
||
| replacement | |||||
|
63104D
|
63104D
63104-60050 Reinforcement Sub-Assy, Roof Panel, No.2[01.1990 - 05.1993] FJ75,FZJ75,HZJ75,PZJ75..HT |
63104-60050 |
US $90.27 |
||
|
63104D
|
63104D
63104-90K01
Reinforcement Sub-Assy, Roof Panel, No.2
[01.1990 - 10.1992] FJ75,FZJ75..LHD..HT..5F..GEN VENEZUELA SPEC |
63104-90K01 |
— | ||
|
63148C
|
63148C
63148-90K01
Reinforcement, Roof Panel Side, Rh
[01.1990 - 09.1992] FJ75,FZJ75..LHD..HT..5F..GEN VENEZUELA SPEC |
63148-90K01 |
— | ||
|
63149C
|
63149C
63148-90K01
Reinforcement, Roof Panel Side, Rh
[01.1990 - 09.1992] FJ75,FZJ75..LHD..HT..5F..GEN VENEZUELA SPEC |
63148-90K01 |
— | ||
|
9331216012
|
9331216012
93312-16012 New Genuine Part |
93312-16012 |
US $1.46 |
||
|
9331216014
|
9331216014
93312-16014 SCREW W/WASHER |
93312-16014 |
US $0.83 |
||
