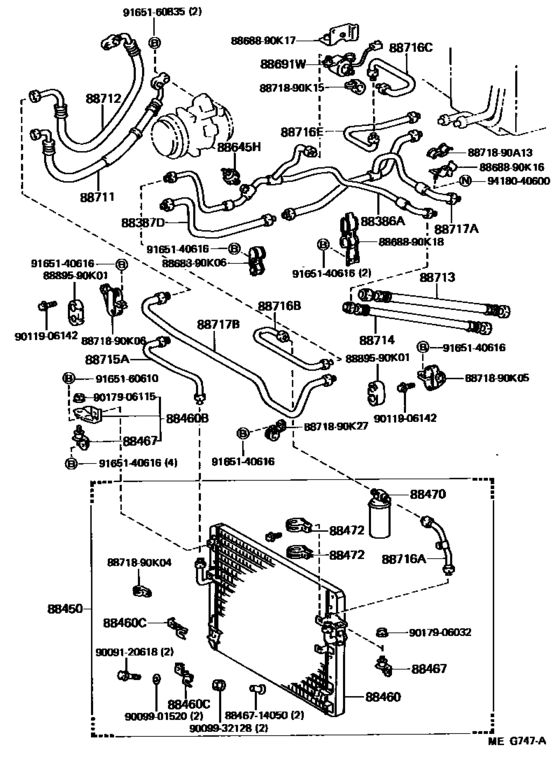

Heating & Air Conditioning - Cooler Piping ([10.1985 - ] OVERHEAD DUAL AIR CONDITIONER (8510- )FJ75..RHD..HT) Diagram Toyota LAND CRUISER
- Year
- 1984 - 1990
- Sales region
- General
- Frame
- FJ75
- grade
- STD
- body
- HT
- ENGINE
- 3F
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 70
- From
- 11.1984
- To
- 01.1990
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Driver's Position
- RHD
- Fuel Induction
- CBR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88386A
|
88386A
88716-90K21 Pipe, Rear Cooler Refrigerant Liquid, A (From Condenser)REAR COOLER REFRIGERANT LIQUID, A (FROM CONDENSER) [10.1985 - 01.1990] FJ75..RHD..HT |
88716-90K21 |
US $136.86 |
||
|
88387D
|
88387D
88717-90K09 Pipe, Rear Cooler Refrigerant Suction, DREAR COOLER REFRIGERANT SUCTION, D [10.1985 - 01.1990] FJ75..RHD..HT |
88717-90K09 |
US $96.10 |
||
|
88450
|
88450
88450-90K00
Condenser Assy, W/receiver
[11.1984 - 01.1990] BJ70,73,75,FJ7#,HJ75..(HT,SOT)..(GEN,ME) |
88450-90K00 |
— | ||
|
88450
|
88450
88450-90K03 Condenser Assy, W/receiverW/RECEIVER [10.1985 - 01.1990] BJ75,FJ75,HJ75..HT W/*ODAC |
88450-90K03 |
US $620.26 |
||
|
88460
|
88460
88340-90K00
Condenser Assy, Cooler
[11.1984 - 01.1990] BJ7#,FJ7#,HJ75..HT,SOT |
88340-90K00 |
— | ||
| replacement | |||||
|
88460
|
88460
88340-60010
Condenser Assy, Cooler
[11.1984 - 01.1990] BJ7#,FJ7#,HJ75..HT,SOT |
88340-60010 |
— | ||
|
88460B
|
88460B
88409-90K01
Bracket, Cooler Condenser, No.1
[11.1984 - 01.1990] BJ7#,FJ7#,HJ75..ARL,GEN,ME |
88409-90K01 |
— | ||
| replacement | |||||
|
88460B
|
88460B
88409-60010
Bracket, Cooler Condenser, No.1
[11.1984 - 01.1990] BJ7#,FJ7#,HJ75..ARL,GEN,ME |
88409-60010 |
— | ||
|
88460C
|
88460C
88688-90K01
Bracket, Cooler Condenser, No.2
[11.1984 - 01.1990] BJ7#,FJ7#,HJ75..ARL,GEN,ME |
88688-90K01 |
— | ||
|
88467
|
88467
88467-22060 Cushion, Cooler Condenser, No.1[11.1984 - 01.1990] BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME |
88467-22060 |
from US $3.49 |
||
|
88470
|
88470
88471-30270
Receiver & Dryer Assy, Cooler
[11.1984 - 01.1990] BJ70,73,75,FJ7#,HJ75..GEN,ME |
88471-30270 |
— | ||
| replacement | |||||
|
88470
|
88470
88470-20070
Receiver & Dryer Assy, Cooler
[11.1984 - 01.1990] BJ70,73,75,FJ7#,HJ75..GEN,ME |
88470-20070 |
— | ||
|
88470
|
88470
88471-90K01
Receiver & Dryer Assy, Cooler
[10.1985 - 01.1990] BJ75,FJ75,HJ75..HT W/*ODAC |
88471-90K01 |
— | ||
|
88472
|
88472
88472-22090
Bracket, Receiver Tank, No.1
[11.1984 - 01.1990] BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME |
88472-22090 |
— | ||
|
88645H
|
88645H
88645-10020
Switch, Pressure
[10.1985 - 01.1990] FJ75,HJ75..HT |
88645-10020 |
— | ||
|
88691W
|
88691W
88690-90A06
Valve, Magnet
[10.1985 - 01.1990] FJ75,HJ75..RHD..HT |
88690-90A06 |
— | ||
|
88711
|
88711
88711-90K00 Hose, Cooler Refrigerant Discharge, No.1COOLER REFRIGERANT DISCHARGE, NO.1 [11.1984 - 08.1988] FJ7#..ARL,GEN,ME |
88711-90K00 |
US $179.09 |
||
|
88712
|
88712
88712-90K00 Hose, Cooler Refrigerant Suction, No.1COOLER REFRIGERANT SUCTION, NO.1 [11.1984 - 01.1990] FJ7#..RHD..(ARL,GEN) |
88712-90K00 |
US $199.47 |
||
|
88713
|
88713
88712-90K11 Hose, Cooler Refrigerant Suction, No.2COOLER REFRIGERANT SUCTION, NO.2 [10.1985 - 01.1990] FJ75,HJ75..HT |
88712-90K11 |
US $168.90 |
||
|
88714
|
88714
88721-90K00 Hose, Cooler Refrigerant Liquid, No.1COOLER REFRIGERANT LIQUID, NO.1 [10.1985 - 01.1990] FJ75,HJ75..HT |
88721-90K00 |
US $145.60 |
||
|
88715A
|
88715A
88715-90K00 Pipe, Cooler Refrigerant Discharge, A[11.1984 - 01.1990] BJ7#,FJ7#..ARL,GEN,ME |
88715-90K00 |
US $50.23 |
||
|
88716A
|
88716A
88716-90K02
Pipe, Cooler Refrigerant Liquid, A
[11.1984 - 01.1990] BJ7#,FJ7#,HJ75..ARL,GEN,ME |
88716-90K02 |
— | ||
|
88716B
|
88716B
88716-90K12 Pipe, Cooler Refrigerant Liquid, B[11.1984 - 01.1990] BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
88716-90K12 |
US $41.64 |
||
|
88716C
|
88716C
88716-90K28 Pipe, Cooler Refrigerant Liquid, CCOOLER REFRIGERANT LIQUID, C [10.1985 - 01.1990] FJ75,HJ75..RHD..HT |
88716-90K28 |
US $34.07 |
||
|
88716E
|
88716E
88716-90K13
Pipe, Cooler Refrigerant Liquid, E
[11.1984 - 01.1990] BJ7#,FJ7#..RHD..(ARL,GEN) |
88716-90K13 |
— | ||
|
88716E
|
88716E
88716-90K17 Pipe, Cooler Refrigerant Liquid, ECOOLER REFRIGERANT LIQUID, E [10.1985 - 01.1990] FJ75..RHD..HT W/*ODAC |
88716-90K17 |
US $55.91 |
||
|
88717A
|
88717A
88717-90K01 Pipe, Cooler Refrigerant Suction, A[11.1984 - 01.1990] BJ7#,FJ7#..RHD..(ARL,GEN) |
88717-90K01 |
US $173.26 |
||
|
88717A
|
88717A
88717-90K12 Pipe, Cooler Refrigerant Suction, ACOOLER REFRIGERANT SUCTION, A [10.1985 - 01.1990] FJ75..RHD..HT W/*ODAC |
88717-90K12 |
US $182 |
||
|
88717B
|
88717B
88717-90K00 Pipe, Cooler Refrigerant Suction, B[11.1984 - 12.1988] BJ7#,FJ7#..RHD..(ARL,GEN) |
88717-90K00 |
US $182 |
||
|
88717B
|
88717B
88717-90K16 Pipe, Cooler Refrigerant Suction, B[10.1985 - 01.1990] FJ75..RHD..HT W/*ODAC |
88717-90K16 |
US $187.82 |
||
|
8868890K06
|
8868890K06
88688-90K06
Bracket, Cooler Diaphragm
|
88688-90K06 |
— | ||
|
8868890K16
|
8868890K16
88688-90K16
Bracket, Cooler Diaphragm
|
88688-90K16 |
— | ||
|
8868890K17
|
8868890K17
88688-90K17
Bracket, Cooler Diaphragm
|
88688-90K17 |
— | ||
|
8868890K18
|
8868890K18
88688-90K18
Bracket, Cooler Diaphragm
|
88688-90K18 |
— | ||
|
8871890A13
|
8871890A13
88718-90A13
Pipe, Cooler Refrigerant Suction, No.2
|
88718-90A13 |
— | ||
|
8871890K04
|
8871890K04
88718-90K04
Pipe, Cooler Refrigerant Suction, No.2
|
88718-90K04 |
— | ||
|
8871890K05
|
8871890K05
88718-90K05
Pipe, Cooler Refrigerant Suction, No.2
|
88718-90K05 |
— | ||
|
8871890K06
|
8871890K06
88718-90K06
Pipe, Cooler Refrigerant Suction, No.2
|
88718-90K06 |
— | ||
|
8871890K15
|
8871890K15
88718-90K15
Pipe, Cooler Refrigerant Suction, No.2
|
88718-90K15 |
— | ||
|
8871890K27
|
8871890K27
88718-90K27
Pipe, Cooler Refrigerant Suction, No.2
|
88718-90K27 |
— | ||
|
8889590K01
|
8889590K01
88895-90K01
Holder, Fuse
|
88895-90K01 |
— | ||
|
8846714050
|
8846714050
88467-14050
Cushion, Cooler Condenser, No.1
|
88467-14050 |
— | ||
|
9009120618
|
9009120618
90091-20618
New Genuine Part
|
90091-20618 |
— | ||
|
9009901520
|
9009901520
90099-01520
New Genuine Part
|
90099-01520 |
— | ||
|
9009932128
|
9009932128
90099-32128 New Genuine Part |
90099-32128 |
US $2.61 |
||
|
9011906142
|
9011906142
90119-06142 Bolt A/C |
90119-06142 |
US $2.15 |
||
|
9017906032
|
9017906032
90179-06032
Direct
|
90179-06032 |
— | ||
| replacement | |||||
|
9017906032
|
9017906032
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $2.15 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.72 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.43 |
||
|
9165160610
|
9165160610
91651-60610
BOLT
|
91651-60610 |
— | ||
| replacement | |||||
|
9165160610
|
9165160610
91651-B0610 BOLTWWASHER |
91651-B0610 |
US $2.15 |
||
|
9165160835
|
9165160835
91651-60835 Bolt(For Front Suspension Control Accumulator) |
91651-60835 |
from US $1.48 |
||
|
9418040600
|
9418040600
94180-40600 Retainer, Roof Window Hinge |
94180-40600 |
from US $1.61 |
||
