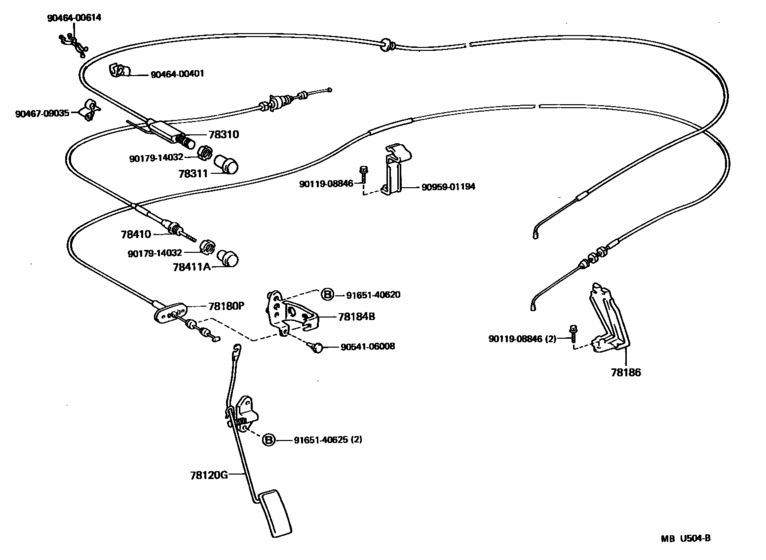

Accelerator Link ([01.1990 - 01.1992] (9001-9201)FJ80..LHD) Diagram Toyota LAND CRUISER
- Year
- 1990 - 1992
- Sales region
- General
- Frame
- FJ80
- grade
- GX
- ENGINE
- 3F
- TRANSMISSION
- MTM
- DESTINATION
- GCC
- Model
- LAND CRUISER 80
- From
- 01.1990
- To
- 01.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- LHD
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78120G
|
78120G
78120-60040
Rod Assy, Accelerator Pedal
[01.1990 - 06.1990] FJ80,HDJ80,HZJ80..LHD |
78120-60040 |
— | ||
|
78180P
|
78180P
78180-60060 Cable Assy, Accelerator ControlACCELERATOR CONTROL [01.1990 - 01.1992] FJ80..LHD |
78180-60060 |
US $63.92 |
||
|
78184B
|
78184B
78184-60030
Stopper, Accelerator Idle Adjusting
[01.1990 - 08.1992] FJ80,FZJ80 |
78184-60030 |
— | ||
|
78186
|
78186
78186-90A02
Support, Accelerator Control Cable, No.1
[01.1990 - 08.1992] FJ80..CBR |
78186-90A02 |
— | ||
|
78310
|
78310
78310-60070
Cable Assy, Choke
[01.1990 - 01.1992] FJ80..LHD |
78310-60070 |
— | ||
|
78311
|
78311
78303-90A03
Knob, Choke Control Cable
[01.1990 - 08.1992] FJ80..CBR |
78303-90A03 |
— | ||
|
78410
|
78410
78410-60090 Cable Assy, Throttle ControlTHROTTLE CONTROL [01.1990 - 08.1992] FJ80,FZJ80..LHD |
78410-60090 |
from US $27.80 |
||
|
78411A
|
78411A
78402-60030 Knob, Throttle Control Cable[01.1990 - 08.1992] FJ80,FZJ80,HDJ80,HZJ80 |
78402-60030 |
from US $9.54 |
||
|
9011908846
|
9011908846
90119-08846 BOLT WWASHER |
90119-08846 |
US $1.12 |
||
|
9017914032
|
9017914032
90179-14032 Nut, Choke |
90179-14032 |
from US $0.96 |
||
|
9046400401
|
9046400401
90464-00401
New Genuine Part
|
90464-00401 |
— | ||
|
9046400614
|
9046400614
90464-00614 Clamp Or Clip(For Radiator Reserve Tank Hose No.3) |
90464-00614 |
US $2.71 |
||
|
9046709035
|
9046709035
90467-09035 CLIP |
90467-09035 |
US $8.32 |
||
|
9054106008
|
9054106008
90541-06008 Cushion, No.1(For Clutch Pedal) |
90541-06008 |
from US $1.60 |
||
|
9095901194
|
9095901194
90959-01194
New Genuine Part
|
90959-01194 |
— | ||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
|
9165140625
|
9165140625
91651-40625 New Genuine Part |
91651-40625 |
US $1.12 |
