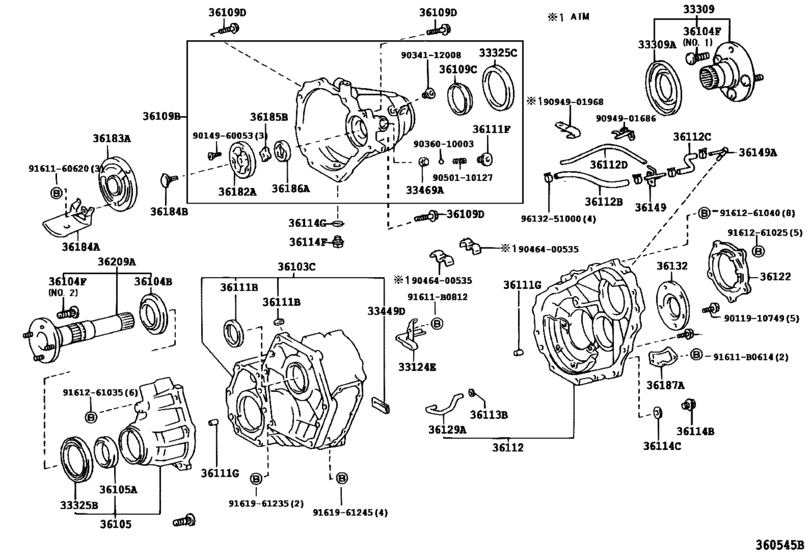

Transfer Case & Extension Housing ([09.1999 - ] FULL TIME 4WD (9909- )FZJ80..VX) Diagram Toyota LAND CRUISER
- Year
- 1997 - 2006
- Sales region
- General
- Frame
- FZJ80
- grade
- VX
- ENGINE
- 1FZFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 80
- From
- 11.1997
- To
- 12.2006
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33124E
|
33124E
33124-60010 Pipe, Oil Receiver(For Transfer)OIL RECEIVER(FOR TRANSFER) [01.1998 - 09.1999] FZJ80,HDJ80,HZJ80 PART TIME 4WD,NO.1 |
33124-60010 |
US $4.72 |
||
|
33124E
|
33124E
33124-60030 Pipe, Oil Receiver(For Transfer)[08.1992 - 01.1998] FZJ80,HDJ80,HZJ80 |
33124-60030 |
US $4.02 |
||
|
33124E
|
33124E
33124-60050 Pipe, Oil Receiver(For Transfer)OIL RECEIVER(FOR TRANSFER) [01.1998 - 09.1999] FZJ80,HDJ80,HZJ80 PART TIME 4WD,NO.3 |
33124-60050 |
US $8.30 |
||
|
33124E
|
33124E
33124-60060 Pipe, Oil Receiver(For Transfer)OIL RECEIVER(FOR TRANSFER) [01.1998 - 09.1999] FZJ80,HDJ80,HZJ80 PART TIME 4WD,NO.4 |
33124-60060 |
US $2.62 |
||
|
33309
|
33309
33309-60090 Flange Sub-Assy, Transfer Output Shaft Companion[08.1996 - 01.1998] FZJ80..5F;FZJ80..4FC..GX;HZJ80..STD..ARL;FZJ80..LHD..4FC..VX;HDJ80,HZJ80..GCC,GEN |
33309-60090 |
US $160.16 |
||
|
33309
|
33309
33309-60100
Flange Sub-Assy, Transfer Output Shaft Companion
[01.1998 - 09.1999] FZJ80,HDJ80,HZJ80 |
33309-60100 |
— | ||
|
33309A
|
33309A
33325-60090 Deflector, Dust (For Transfer Output Rear Shaft)[01.1998 - 09.1999] FZJ80,HDJ80,HZJ80 |
33325-60090 |
US $8.04 |
||
|
33325B
|
33325B
33325-60050 Deflector, Dust[08.1992 -] FZJ80,HDJ80,HZJ80 |
33325-60050 |
from US $6.63 |
||
|
33325C
|
33325C
33325-60070 Deflector, Dust (For Transfer Extension Rear Housing)[08.1992 - 01.1998] FZJ80,HDJ80,HZJ80 |
33325-60070 |
from US $11.53 |
||
|
33449D
|
33449D
33449-60010 Magnet, Transmission[08.1992 - 01.1998] FZJ80,HDJ80,HZJ80 |
33449-60010 |
from US $3.85 |
||
|
33469A
|
33469A
33469-60010 Seat, Relief Valve (For Manual Transmission Oil Pump)[08.1992 - 01.1998] FZJ80,HDJ80,HZJ80 |
33469-60010 |
US $4.19 |
||
|
33469A
|
33469A
33469-60020 Seat, Relief Valve (For Transfer Extension Rear Housing)[04.2001 -] FZJ80..VX |
33469-60020 |
US $3.06 |
||
|
36103C
|
36103C
36103-60230 Case, Transfer, Front[08.1992 - 01.1998] HDJ80;HZJ80..4FC;HZJ80..GX..ARL;FZJ80..GX..EFI;FZJ80..4FC..VX..GCC;FZJ80,HZJ80..VX ..(ARL,GEN); FZJ80..GX..CBR;FZJ80..STD..ARL;FZJ80..VX..GCC..CBR;HZJ80..RHD..5F..GEN;HZJ80..LHD. .GX..GEN;HZJ80..SOB..(ARL,GCC) W(*ELC) |
36103-60230 |
US $1,113.84 |
||
|
36103C
|
36103C
36103-60240 Case, Transfer, Front[01.1995 - 01.1998] FZJ80..LHD..4FC;HZJ80..STD..ARL;HDJ80..RHD..5F..TD2;FZJ80..5F..VX..GEN..EFI;HZJ80. .5F..(GX,VX)..(GCC,GEN);FZJ80,HDJ80..LHD..(GX,VX)..(CBR,TD2) W(*ELC & PTO); FZJ80..5F..GCC..EFI W(*VCD & PTO) |
36103-60240 |
US $683.16 |
||
|
36103C
|
36103C
36103-60310 Case, Transfer, FrontTRANSFER, FRONT [01.1998 - 09.1999] HZJ80;FZJ80,HDJ80..VX |
36103-60310 |
US $1,118.21 |
||
|
36103C
|
36103C
36103-60320 Case, Transfer, FrontTRANSFER, FRONT [09.1999 -] FZJ80..VX |
36103-60320 |
US $1,118.21 |
||
|
36104B
|
36104B
33325-60040 Deflector, Dust (For Transfer Output Shaft)[08.1992 -] FZJ80,HDJ80,HZJ80 |
33325-60040 |
from US $9.50 |
||
|
36104F
|
36104F
90114-10061 Bolt (For Transfer Output Shaft Companion Flange)[01.1998 - 09.1999] FZJ80,HDJ80,HZJ80 NO.2 |
90114-10061 |
from US $0.91 |
||
|
36104F
|
36104F
90114-11003 Bolt (For Transfer Output Shaft Companion Flange)[01.1998 - 09.1999] FZJ80,HDJ80,HZJ80 NO.1 |
90114-11003 |
from US $0.87 |
||
|
36105
|
36105
36105-60010 Housing Sub-Assy, Transfer Extension, Front[01.1998 -] FZJ80,HDJ80,HZJ80 |
36105-60010 |
from US $220.15 |
||
|
36105
|
36105
36105-60020 Housing Sub-Assy, Transfer Extension, Front[08.1992 - 01.1998] FZJ80,HDJ80,HZJ80 |
36105-60020 |
US $122.30 |
||
|
36105A
|
36105A
90311-50014 Seal, Oil (Transfer Extension Front Housing Sub-Assy)[08.1992 -] FZJ80,HDJ80,HZJ80 |
90311-50014 |
from US $7.53 |
||
|
36109B
|
36109B
36109-60010
Housing Sub-Assy, Transfer Extension, Rear
[08.1992 - 01.1998] FZJ80,HZJ80..STD..ARL;FZJ80,HDJ80,HZJ80..GCC,GEN |
36109-60010 |
— | ||
| replacements | |||||
|
36109B
|
36109B
33325-60110 Deflector, Dust[08.1992 - 01.1998] FZJ80,HZJ80..STD..ARL;FZJ80,HDJ80,HZJ80..GCC,GEN |
33325-60110 |
US $5.24 |
||
|
36109B
|
36109B
36109-60011
Housing Sub-Assy, Transfer Extension, Rear
[08.1992 - 01.1998] FZJ80,HZJ80..STD..ARL;FZJ80,HDJ80,HZJ80..GCC,GEN |
36109-60011 |
— | ||
|
36109B
|
36109B
36109-60040 Housing Sub-Assy, Transfer Extension, Rear[09.1999 - 04.2001] FZJ80..VX |
36109-60040 |
US $313.04 |
||
| replacements | |||||
|
36109B
|
36109B
33325-60110 Deflector, Dust[09.1999 - 04.2001] FZJ80..VX |
33325-60110 |
US $5.24 |
||
|
36109B
|
36109B
36109-60041 Housing Sub-Assy, Transfer Extension, Rear[09.1999 - 04.2001] FZJ80..VX |
36109-60041 |
US $439.71 |
||
|
36109B
|
36109B
36109-60041 Housing Sub-Assy, Transfer Extension, Rear[04.2001 -] FZJ80..VX |
36109-60041 |
US $439.71 |
||
|
36109B
|
36109B
36109-60050
Housing Sub-Assy, Transfer Extension, Rear
[01.1998 - 09.1999] FZJ80,HDJ80,HZJ80 |
36109-60050 |
— | ||
| replacements | |||||
|
36109B
|
36109B
36109-60052 Housing Sub-Assy, Transfer Extension, Rear[01.1998 - 09.1999] FZJ80,HDJ80,HZJ80 |
36109-60052 |
from US $181.71 |
||
|
36109B
|
36109B
33325-60110 Deflector, Dust[01.1998 - 09.1999] FZJ80,HDJ80,HZJ80 |
33325-60110 |
US $5.24 |
||
|
36109C
|
36109C
90311-58008 Seal, Oil (Transfer Extension Rear Housing Sub-Assy)[08.1992 - 04.2001] FZJ80,HDJ80,HZJ80 |
90311-58008 |
from US $9.32 |
||
|
36109C
|
36109C
90311-58011 Seal, Oil (Transfer Extension Rear Housing Sub-Assy)[04.2001 -] FZJ80 |
90311-58011 |
from US $12.19 |
||
|
36109D
|
36109D
90119-10180 Bolt (For Transfer Extension Rear Housing)[09.1999 -] FZJ80..VX *10-1.25PX75-30 |
90119-10180 |
US $2.33 |
||
|
36109D
|
36109D
90119-10311 Bolt (For Transfer Extension Rear Housing)[09.1999 -] FZJ80..VX *10-1.25PX97-30 |
90119-10311 |
US $3.20 |
||
|
36109D
|
36109D
90119-10390 Bolt (For Transfer Extension Rear Housing)[08.1992 - 01.1998] FZJ80,HDJ80,HZJ80 *10-1.25PX35-30 |
90119-10390 |
US $1.97 |
||
|
36111B
|
36111B
90310-16001 Seal, Oil (For Transfer Case)[08.1992 - 09.1999] FZJ80..VX..GEN..EFI LEVER SIDE |
90310-16001 |
from US $2.87 |
||
|
36111B
|
36111B
90311-48018
Seal, Oil (Transfer Extension Rear Housing Sub-Assy)
[05.1996 - 09.1999] FZJ80..VX..GEN..EFI SHAFT SIDE |
90311-48018 |
— | ||
| replacement | |||||
|
36111B
|
36111B
90311-48025 Seal, Oil (For Transfer Case)[05.1996 - 09.1999] FZJ80..VX..GEN..EFI SHAFT SIDE |
90311-48025 |
from US $5.56 |
||
|
36111B
|
36111B
90311-48025 Seal, Oil (For Transfer Case)[01.2005 -] FZJ80 SHAFT SIDE |
90311-48025 |
from US $5.56 |
||
|
36111F
|
36111F
90341-18039 Plug, No.2(For Transmission Case)[08.1992 - 01.1998] FZJ80,HDJ80,HZJ80 |
90341-18039 |
US $1.49 |
||
|
36111G
|
36111G
90250-12002 Pin, Straight(For Manual Transmission Case)[08.1992 -] FZJ80,HDJ80,HZJ80 L=16,OD=12 |
90250-12002 |
from US $1.24 |
||
|
36112
|
36112
36104-60010 Case, Transfer, Rear[08.1992 - 01.1998] FZJ80,HZJ80..STD..ARL;FZJ80,HDJ80,HZJ80..GCC,GEN |
36104-60010 |
US $349.44 |
||
|
36112
|
36112
36104-60030
Case, Transfer, Rear
[09.1999 -] FZJ80..VX |
36104-60030 |
— | ||
|
36112
|
36112
36104-60040 Case, Transfer, RearTRANSFER, REAR [01.1998 - 09.1999] FZJ80,HDJ80,HZJ80 |
36104-60040 |
US $227.14 |
||
|
36112B
|
36112B
90445-11127 Hose, No.1 (For Transfer Rear Case)[10.1992 - 03.2001] HDJ80..5F;FZJ80,HZJ80..5F..VX..GEN;FZJ80,HZJ80..5F..GX..ARL |
90445-11127 |
US $8.44 |
||
|
36112C
|
36112C
90445-11134 Hose, No.2 (For Transfer Rear Case)[01.1995 - 01.1998] HZJ80..RHD;FZJ80,HDJ80..GX,VX;HZJ80..LHD..(GX,VX) |
90445-11134 |
US $2.48 |
||
|
36112C
|
36112C
90445-11138 Hose, No.2 (For Transfer Rear Case)[01.1998 -] FZJ80..4FC;HDJ80,HZJ80;FZJ80..5F..VX |
90445-11138 |
US $4.80 |
||
|
36112D
|
36112D
90445-08277
Hose, No.3 (For Transfer Rear Case)
[08.1992 - 01.1998] HZJ80..RHD;FZJ80..STD..ARL;FZJ80,HDJ80..GX,VX;HZJ80..LHD..(GX,VX) |
90445-08277 |
— | ||
|
36112D
|
36112D
90447-08151 Hose, No.1 (For Transfer Rear Case)[09.1999 -] FZJ80..4FC;FZJ80..5F..VX |
90447-08151 |
US $24.75 |
||
|
36112D
|
36112D
90447-08152 Hose, No.3 (For Transfer Rear Case)NO.3 (FOR TRANSFER REAR CASE) [01.1998 - 09.1999] FZJ80..VX |
90447-08152 |
US $5.82 |
||
|
36113B
|
36113B
90301-07012 Ring, O (For Transfer Case Plug)[08.1992 - 01.1998] FZJ80,HDJ80,HZJ80 |
90301-07012 |
US $2.87 |
||
|
36113B
|
36113B
90301-09015 Ring, O (For Transfer Case Plug)[09.1999 -] FZJ80..VX ID=9.5 |
90301-09015 |
US $3.49 |
||
|
36114B
|
36114B
90341-18006 Plug (No magnet)[08.1992 -] FZJ80,HDJ80,HZJ80 |
90341-18006 |
from US $3.23 |
||
|
36114C
|
36114C
90430-18008 Gasket[08.1992 -] FZJ80,HDJ80,HZJ80 |
90430-18008 |
from US $0.87 |
||
| replacement | |||||
|
36114C
|
36114C
90430-T0021 Gasket(For Manual Transmission Filler Plug)[08.1992 -] FZJ80,HDJ80,HZJ80 |
90430-T0021 |
US $0.99 |
||
|
36114F
|
36114F
90341-18057 Drain Plug (with Magnet)[08.1992 -] FZJ80,HDJ80,HZJ80 |
90341-18057 |
from US $6.27 |
||
|
36114G
|
36114G
90430-18008 Gasket[08.1992 -] FZJ80,HDJ80,HZJ80 |
90430-18008 |
from US $0.87 |
||
| replacement | |||||
|
36114G
|
36114G
90430-T0021 Gasket(For Manual Transmission Filler Plug)[08.1992 -] FZJ80,HDJ80,HZJ80 |
90430-T0021 |
US $0.99 |
||
|
36122
|
36122
36122-36010 Cover, Transfer Case, No.2[08.1992 -] FZJ80,HDJ80,HZJ80 |
36122-36010 |
US $38.88 |
||
|
36129A
|
36129A
36129-60020 Tube, Transfer Oil[08.1992 - 01.1998] FZJ80,HZJ80..STD..ARL;FZJ80,HDJ80,HZJ80..GCC,GEN |
36129-60020 |
US $5.68 |
||
|
36129A
|
36129A
36129-60040 Tube, Transfer Oil[09.1999 -] FZJ80..VX |
36129-60040 |
US $9.03 |
||
|
36132
|
36132
36132-60050 Retainer, Output Shaft Bearing, Rear No.1[09.1999 -] FZJ80..VX |
36132-60050 |
US $53 |
||
|
36149
|
36149
36149-60010 Pipe, Transfer Breather[08.1992 -] HZJ80..RHD;FZJ80..4FC..STD;FZJ80..STD..ARL;FZJ80,HDJ80..GX,VX;HZJ80..LHD..(GX,VX) |
36149-60010 |
US $4.08 |
||
|
36149A
|
36149A
36149-60020 Pipe, Transfer Breather, No.2[08.1992 - 01.1998] FZJ80,HDJ80,HZJ80 |
36149-60020 |
from US $5.56 |
||
|
36149A
|
36149A
36149-60040 Pipe, Transfer Breather, No.2TRANSFER BREATHER, NO.2 [01.1998 -] FZJ80,HDJ80,HZJ80 |
36149-60040 |
US $6.12 |
||
|
36182A
|
36182A
36182-60011 Cover, Transfer Oil Pump[12.1992 - 01.1998] FZJ80,HDJ80,HZJ80 |
36182-60011 |
US $23.94 |
||
|
36183A
|
36183A
36183-60012 Plate, Transfer Oil Pump[09.1999 -] FZJ80..VX |
36183-60012 |
US $35.82 |
||
|
36184A
|
36184A
36184-60050 Separator, Transfer Oil[09.1999 -] FZJ80..VX |
36184-60050 |
US $19.51 |
||
|
36184B
|
36184B
36184-60010
Plate, Transfer Oil Pump
[08.1992 - 01.1998] FZJ80,HDJ80,HZJ80 |
36184-60010 |
— | ||
| replacement | |||||
|
36184B
|
36184B
36184-60060 Shaft, Transfer Oil Pump Drive[08.1992 - 01.1998] FZJ80,HDJ80,HZJ80 |
36184-60060 |
US $4.54 |
||
|
36184B
|
36184B
36184-60060 Shaft, Transfer Oil Pump Drive[09.1999 -] FZJ80..VX |
36184-60060 |
US $4.54 |
||
|
36185B
|
36185B
36185-60010
Rotor, Transfer Oil Pump Drive
[09.1999 -] FZJ80..VX |
36185-60010 |
— | ||
|
36185B
|
36185B
36185-60030 Rotor, Transfer Oil Pump Drive[08.1992 - 01.1998] FZJ80,HDJ80,HZJ80 |
36185-60030 |
from US $4.37 |
||
|
36186A
|
36186A
36186-60010 Rotor, Transfer Oil Pump Driven[08.1992 - 01.1998] FZJ80,HDJ80,HZJ80 |
36186-60010 |
US $6.29 |
||
|
36186A
|
36186A
36186-60020 Rotor, Transfer Oil Pump Driven[09.1999 -] FZJ80..VX |
36186-60020 |
US $11.53 |
||
|
36187A
|
36187A
36187-60010 Strainer, Transfer Oil, No.1[08.1992 - 01.1998] FZJ80,HDJ80,HZJ80 |
36187-60010 |
US $9.26 |
||
|
36187A
|
36187A
36187-60070 Strainr, Transfer Oil, No.1[09.1999 -] FZJ80..VX |
36187-60070 |
US $13.98 |
||
|
36209A
|
36209A
36209-60010 Shaft, Transfer Output, Front[08.1992 - 01.1998] FZJ80,HZJ80..STD..ARL;FZJ80,HDJ80,HZJ80..GCC,GEN |
36209-60010 |
US $206.75 |
||
| replacements | |||||
|
36209A
|
36209A
36209-60070 Ring Set, Transfer Synchronizer[08.1992 - 01.1998] FZJ80,HZJ80..STD..ARL;FZJ80,HDJ80,HZJ80..GCC,GEN |
36209-60070 |
US $206.75 |
||
|
36209A
|
36209A
90311-50054 Seal, Oil (Transfer Extension Front Housing Sub-Assy)[08.1992 - 01.1998] FZJ80,HZJ80..STD..ARL;FZJ80,HDJ80,HZJ80..GCC,GEN |
90311-50054 |
from US $6.11 |
||
|
36209A
|
36209A
36209-60020 Shaft, Transfer Output, Front[09.1999 -] FZJ80..VX |
36209-60020 |
from US $291.20 |
||
|
36209A
|
36209A
36209-60030 Shaft, Transfer Output, FrontTRANSFER OUTPUT, FRONT [01.1998 - 09.1999] FZJ80,HDJ80,HZJ80 |
36209-60030 |
US $142.69 |
||
| replacements | |||||
|
36209A
|
36209A
36209-60031 Shaft, Transfer Output, Front[01.1998 - 09.1999] FZJ80,HDJ80,HZJ80 |
36209-60031 |
from US $117.48 |
||
|
36209A
|
36209A
90311-50054 Seal, Oil (Transfer Extension Front Housing Sub-Assy)[01.1998 - 09.1999] FZJ80,HDJ80,HZJ80 |
90311-50054 |
from US $6.11 |
||
|
91611B0614
|
91611B0614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.78 |
||
|
91611B0812
|
91611B0812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9011910749
|
9011910749
90119-10749 New Genuine Part |
90119-10749 |
US $3.58 |
||
|
9014960053
|
9014960053
90149-60053 Screw(For Transmission Oil Pump Cover) |
90149-60053 |
US $0.61 |
||
|
9034112008
|
9034112008
90341-12008 Plug, W/head Straight Screw(For Transfer Adapter) |
90341-12008 |
from US $3.25 |
||
|
9036010003
|
9036010003
90360-10003 Ball(For Transmission Oil Pump Cover) |
90360-10003 |
from US $1.16 |
||
|
9046400535
|
9046400535
90464-00535 Clamp, Throttle Cable, No.1 |
90464-00535 |
US $2.15 |
||
|
9050110127
|
9050110127
90501-10127 Spring, Compression(For Transmission Oil Pump Cover) |
90501-10127 |
US $0.79 |
||
|
9094901686
|
9094901686
90949-01686 New Genuine Part |
90949-01686 |
US $4.22 |
||
|
9094901968
|
9094901968
90949-01968 New Genuine Part |
90949-01968 |
US $4.22 |
||
|
9161160620
|
9161160620
91611-60620 Screw Or Bolt(For Valve Rocker Shaft Lock) |
91611-60620 |
US $1.61 |
||
|
9161261025
|
9161261025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $0.93 |
||
|
9161261035
|
9161261035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.10 |
||
|
9161261040
|
9161261040
91612-61040 Bolt(For Transmission Case & Engine Setting) |
91612-61040 |
US $2.33 |
||
|
9161961235
|
9161961235
91619-61235 BOLT |
91619-61235 |
from US $2.15 |
||
|
9161961245
|
9161961245
91619-61245 Bolt(For Transaxle & Engine Setting) |
91619-61245 |
from US $1.77 |
||
|
9613251000
|
9613251000
96132-51000 Clip Or Clamp(For Ventilation Hose) |
96132-51000 |
from US $1.44 |
||
