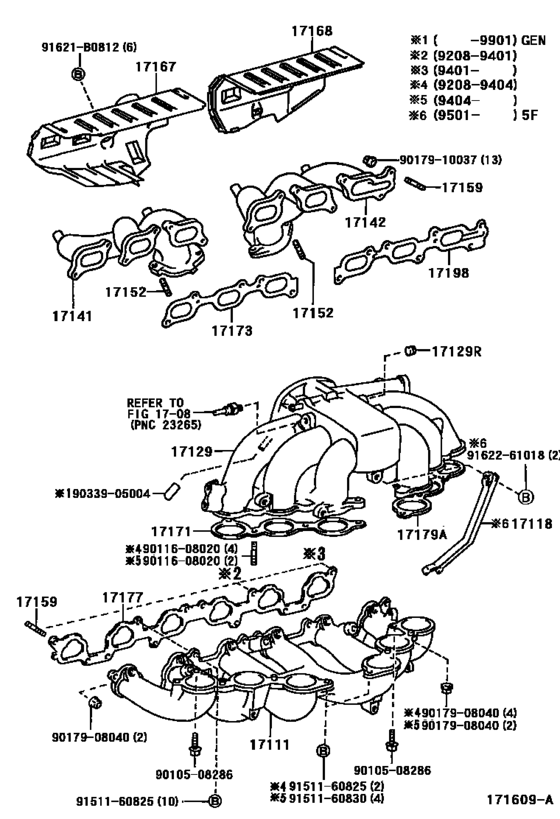

Manifold ([08.1992 - ] (9208- )1FZFE) Diagram Toyota LAND CRUISER
- Year
- 1997 - 2006
- Sales region
- General
- Frame
- FZJ80
- grade
- STD
- ENGINE
- 1FZFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 80
- From
- 11.1997
- To
- 12.2006
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17101-66020 Manifold, Intake[08.1992 - 01.1999] 1FZFE..FZJ80 |
17101-66020 |
US $585.31 |
||
|
17118
|
17118
17118-66010
Stay, Manifold
[01.1995 -] 1FZFE..FZJ80..5F |
17118-66010 |
— | ||
|
17129
|
17129
17109-66010 Tank, Intake Air Surge[08.1999 -] 1FZFE..FZJ80 |
17109-66010 |
US $1,122.58 |
||
|
17129
|
17129
17109-66020 Tank, Intake Air SurgeINTAKE AIR SURGE [08.1992 - 01.1999] 1FZFE..FZJ80 |
17109-66020 |
US $1,119.66 |
||
|
17129R
|
17129R
90345-51006 Plug, W/head Taper Screw, No.2[01.1995 - 01.1999] 1FZFE..FZJ80 |
90345-51006 |
from US $0.79 |
||
|
17141
|
17141
17141-66020 Manifold, Exhaust[08.1992 -] 1FZ#..FZJ80 |
17141-66020 |
from US $243.64 |
||
|
17142
|
17142
17142-66010 Case, Exhaust Manifold, No.2[08.1992 -] 1FZ#..FZJ80 |
17142-66010 |
from US $241.95 |
||
|
17152
|
17152
90126-10006 Bolt, Stud(For Manifold To Exhaust Pipe)[08.1992 -] 1FZ#..FZJ80 |
90126-10006 |
from US $4.35 |
||
|
17159
|
17159
90116-10169 Bolt, Stud(For Manifold To Cylinder Head)used for exhaust manifold [08.1992 -] 1FZ#..FZJ80 EXHAUST MANIFOLD |
90116-10169 |
from US $1.39 |
||
|
17159
|
17159
90126-08008 Bolt, Stud(For Water Outlet)[08.1992 -] 1FZ#..FZJ80 INTAKE MANIFOLD |
90126-08008 |
from US $1.05 |
||
|
17167
|
17167
17167-66040 Insulator, Exhaust Manifold Heat, No.1[08.1992 -] 1FZFE..FZJ80;1FZF..FZJ80..GCC |
17167-66040 |
from US $80.47 |
||
|
17168
|
17168
17168-66020 Insulator, Exhaust Manifold Heat, No.2[08.1992 -] 1FZ#..FZJ80 |
17168-66020 |
from US $48.09 |
||
|
17171
|
17171
17171-66010 Gasket, Intake To Exhaust Manifold[08.1992 - 01.1999] 1FZFE..FZJ80 |
17171-66010 |
from US $5.36 |
||
|
17173
|
17173
17173-66020 Gasket, Exhaust Manifold To Head[08.1992 -] 1FZ#..FZJ80 |
17173-66020 |
from US $21.49 |
||
|
17177
|
17177
17177-66030
Gasket, Intake Manifold To Head, No.1
[08.1992 - 12.1997] 1FZFE..FZJ80 |
17177-66030 |
— | ||
| replacement | |||||
|
17177
|
17177
17177-66040 Gasket, Intake Manifold To Head, No.1[08.1992 - 12.1997] 1FZFE..FZJ80 |
17177-66040 |
from US $12.29 |
||
|
17177
|
17177
17177-66040 Gasket, Intake Manifold To Head, No.1[12.1997 - 01.1999] 1FZ#..FZJ80 |
17177-66040 |
from US $12.29 |
||
|
17179A
|
17179A
17179-66010 Gasket, Intake Manifold, No.2[08.1992 - 01.1999] 1FZFE..FZJ80 |
17179-66010 |
from US $6.10 |
||
|
17198
|
17198
17198-66010 Gasket, Exhaust Manifold, No.2[08.1992 -] 1FZ#..FZJ80 |
17198-66010 |
from US $11.21 |
||
|
91621B0812
|
91621B0812
91621-B0812
New Genuine Part
|
91621-B0812 |
— | ||
| replacement | |||||
|
91621B0812
|
91621B0812
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.84 |
||
|
9010508286
|
9010508286
90105-08286 New Genuine Part |
90105-08286 |
US $4.66 |
||
|
9011608020
|
9011608020
90116-08020 Bolt, Stud(For Manifold To Cylinder Head) |
90116-08020 |
US $2.87 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.01 |
||
|
9017910037
|
9017910037
90179-10037 NUT |
90179-10037 |
from US $2.24 |
||
| replacement | |||||
|
9017910037
|
9017910037
90179-10128 NUT |
90179-10128 |
from US $1.39 |
||
|
9033905004
|
9033905004
90339-05004 PLUG |
90339-05004 |
US $3.32 |
||
|
9151160825
|
9151160825
91511-60825
Bolt (For Transfer Stiffener Plate)
|
91511-60825 |
— | ||
| replacement | |||||
|
9151160825
|
9151160825
91511-B0825 Bolt (For Transfer Stiffener Plate) |
91511-B0825 |
from US $1.05 |
||
|
9151160830
|
9151160830
91511-60830
Bolt Or Ring, Exhaust Pipe Front (For Front)
|
91511-60830 |
— | ||
| replacement | |||||
|
9151160830
|
9151160830
91511-B0830 Bolt Or Ring, Exhaust Pipe Front (For Front) |
91511-B0830 |
from US $0.80 |
||
|
9162261018
|
9162261018
91622-61018 New Genuine Part |
91622-61018 |
US $2.33 |
||
| replacement | |||||
|
9162261018
|
9162261018
91622-B1018 BOLT WWASHER |
91622-B1018 |
from US $0.86 |
||
