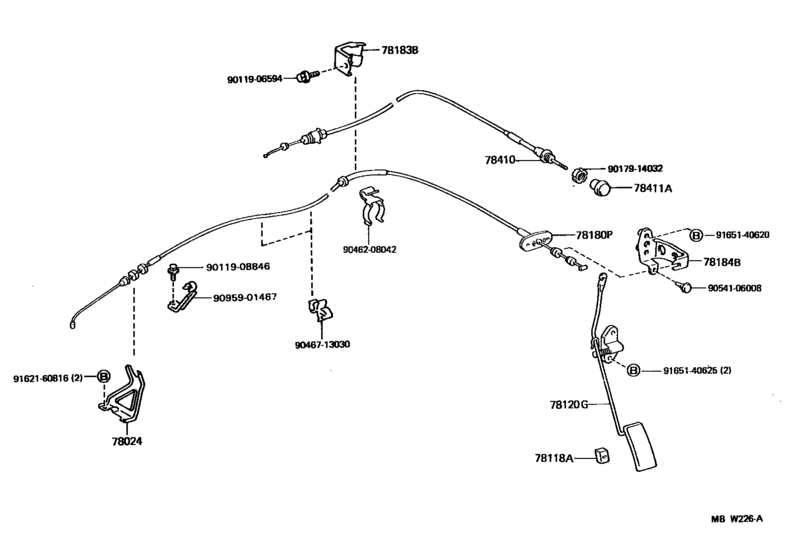

Accelerator Link ([01.1992 - ] (9201- )FZJ80..RHD) Diagram Toyota LAND CRUISER
- Year
- 1992 - 1998
- Sales region
- General
- Frame
- FZJ80
- grade
- GX
- ENGINE
- 1FZFE
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- LAND CRUISER 80
- From
- 08.1992
- To
- 01.1998
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- RHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78118A
|
78118A
78118-60010 Stopper, Accelerator Pedal[08.1992 - 03.2001] FZJ80,HDJ80,HZJ80..RHD |
78118-60010 |
US $4.80 |
||
|
78120G
|
78120G
78120-60030 Rod Assy, Accelerator Pedal[08.1992 - 03.2001] FZJ80,HDJ80,HZJ80..RHD..5F |
78120-60030 |
US $49.50 |
||
|
78180P
|
78180P
78180-60290
Cable Assy, Accelerator Control
[08.1992 - 01.1998] FZJ80..ARL |
78180-60290 |
— | ||
|
78183B
|
78183B
78183-60040 Clamp, Accelerator Control Cable[08.1992 - 01.1998] FZJ80..LUB..ARL |
78183-60040 |
US $6.84 |
||
|
78184B
|
78184B
78184-60030
Stopper, Accelerator Idle Adjusting
[08.1992 - 09.2001] FZJ80..CBR;FZJ80..ARL;FZJ80..GX..GEN..EFI |
78184-60030 |
— | ||
|
78410
|
78410
78410-60080
Cable Assy, Throttle Control
[08.1992 - 01.1998] FZJ80..RHD |
78410-60080 |
— | ||
|
78411A
|
78411A
78402-60030 Knob, Throttle Control Cable[08.1992 - 09.1999] FZJ80,HDJ80,HZJ80 |
78402-60030 |
from US $8.85 |
||
|
9011906594
|
9011906594
90119-06594
BOLT WWASHER
|
90119-06594 |
— | ||
|
9011908846
|
9011908846
90119-08846 BOLT WWASHER |
90119-08846 |
US $1.25 |
||
|
9017914032
|
9017914032
90179-14032 Nut, Choke |
90179-14032 |
US $2.15 |
||
|
9046208042
|
9046208042
90462-08042
Clamp, Cord
|
90462-08042 |
— | ||
| replacement | |||||
|
9046208042
|
9046208042
19242-15120
Clamp, Cord
|
19242-15120 |
— | ||
|
9046713030
|
9046713030
90467-13030
CLIP
|
90467-13030 |
— | ||
|
9054106008
|
9054106008
90541-06008 Cushion, No.1(For Clutch Pedal) |
90541-06008 |
from US $1.50 |
||
|
9095901467
|
9095901467
90959-01467 New Genuine Part |
90959-01467 |
US $5.24 |
||
|
9162160816
|
9162160816
91621-60816
New Genuine Part
|
91621-60816 |
— | ||
| replacement | |||||
|
9162160816
|
9162160816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.82 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
from US $0.84 |
||
|
9165140625
|
9165140625
91651-40625 New Genuine Part |
91651-40625 |
US $1.25 |
||
