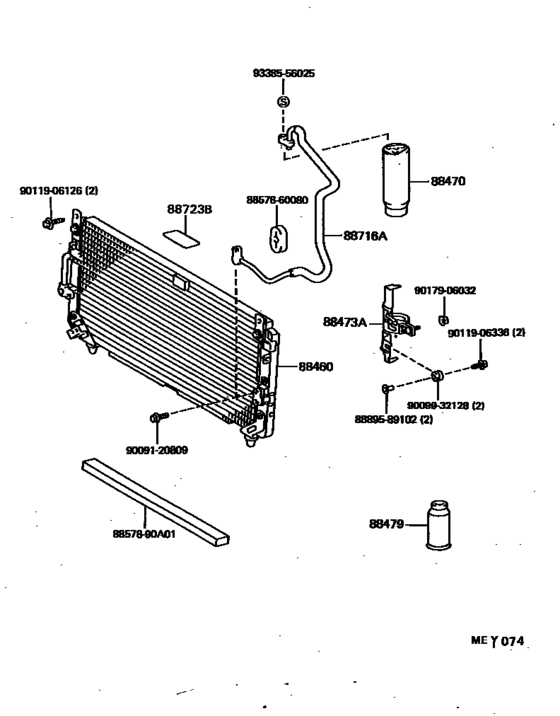

Heating & Air Conditioning - Cooler Piping ([01.1990 - ] CONDENSOR---SINGLE(DEALER OPT) (9001- )GX,STD..ARL) Diagram Toyota LAND CRUISER
- Year
- 1992 - 1998
- Sales region
- General
- Frame
- FZJ80
- grade
- GX
- ENGINE
- 1FZFE
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- LAND CRUISER 80
- From
- 08.1992
- To
- 01.1998
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- RHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88460
|
88460
88460-60060
Condenser Assy, Cooler
[08.1992 - 05.1993] HDJ80,HZJ80;FZJ80..ARL,GEN;FZJ80..(STD,VX)..GCC; FZJ80..GX..GCC SINGLE AIR CONDITIONER |
88460-60060 |
— | ||
|
88460
|
88460
88460-60160
Condenser Assy, Cooler
[05.1993 - 01.1995] HDJ80,HZJ80;FZJ80..ARL,GEN;FZJ80..(STD,VX)..GCC |
88460-60160 |
— | ||
|
88470
|
88470
88471-16040
Receiver & Dryer Assy, Cooler
[08.1992 - 05.1993] FZJ80..STD..GEN;FZJ80..GCC..EFI;HZJ80..SOB..(STD,VX);FZJ80..5F..(STD,VX)..(ARL,GCC ); FZJ80,HZJ80..GX..(GCC,GEN);FZJ80,HDJ80,HZJ80..VX..(ARL,GEN) SINGLE AIR CONDITIONER; FZJ80,HDJ80,HZJ80..GX..ARL SINGLE DEALER OPT |
88471-16040 |
— | ||
| replacement | |||||
|
88470
|
88470
88471-16050 Receiver & Dryer Assy, Cooler[08.1992 - 05.1993] FZJ80..STD..GEN;FZJ80..GCC..EFI;HZJ80..SOB..(STD,VX);FZJ80..5F..(STD,VX)..(ARL,GCC ); FZJ80,HZJ80..GX..(GCC,GEN);FZJ80,HDJ80,HZJ80..VX..(ARL,GEN) SINGLE AIR CONDITIONER; FZJ80,HDJ80,HZJ80..GX..ARL SINGLE DEALER OPT |
88471-16050 |
US $57.46 |
||
|
88470
|
88470
88471-30350
Receiver & Dryer Assy, Cooler
[08.1992 - 05.1993] FZJ80,HDJ80,HZJ80..GX,VX DUAL AIR CONDITIONER |
88471-30350 |
— | ||
| replacement | |||||
|
88470
|
88470
88471-30380
Receiver & Dryer Assy, Cooler
[08.1992 - 05.1993] FZJ80,HDJ80,HZJ80..GX,VX DUAL AIR CONDITIONER |
88471-30380 |
— | ||
|
88470
|
88470
88471-30370 Tank, Receiver Air Conditioner[05.1993 - 01.1995] FZJ80,HZJ80..STD..ARL; FZJ80,HDJ80,HZJ80..GX..ARL SINGLE DEALER OPT |
88471-30370 |
from US $62.04 |
||
|
88470
|
88470
88471-50020 Receiver & Dryer Assy, Cooler[05.1993 - 01.1995] HDJ80..VX;FZJ80..VX..ARL;FZJ80,HZJ80..GCC,GEN; FZJ80,HDJ80,HZJ80..GX..ARL DUAL AIR CONDITIONER |
88471-50020 |
from US $53.83 |
||
|
88473A
|
88473A
88473-60010
Holder, Receiver
[08.1992 - 05.1993] FZJ80,HDJ80,HZJ80..(GX,STD)..ARL |
88473-60010 |
— | ||
|
88479
|
88479
90986-02004
Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
[08.1992 - 05.1993] FZJ80,HDJ80,HZJ80..(GX,STD)..ARL 250G |
90986-02004 |
— | ||
|
88479
|
88479
90986-02007 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)[05.1993 - 01.1998] FZJ80..(GX,STD)..ARL 250G |
90986-02007 |
US $31.42 |
||
|
88479
|
88479
90986-02008 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)[05.1993 - 01.1998] FZJ80..(GX,STD)..ARL 200G |
90986-02008 |
US $25.20 |
||
|
88716A
|
88716A
88706-60030 Pipe, Cooler Refrigerant Liquid, ACOOLER REFRIGERANT LIQUID, A [08.1992 - 05.1993] FZJ80,HZJ80..STD..ARL; FZJ80,HDJ80,HZJ80..GX..ARL SINGLE DEALER OPT |
88706-60030 |
US $138.32 |
||
|
88716A
|
88716A
88716-60290
Pipe, Cooler Refrigerant Liquid, A
[08.1992 - 05.1993] FZJ80,HDJ80,HZJ80..GX..ARL SINGLE DEALER OPT,RECEIVER SIDE |
88716-60290 |
— | ||
|
88716A
|
88716A
88716-60730
Pipe, Cooler Refrigerant Liquid, A
[08.1992 - 05.1993] FZJ80,HDJ80,HZJ80..GX..ARL SINGLE DEALER OPT,CONDENSER SIDE |
88716-60730 |
— | ||
|
88716A
|
88716A
88716-60760 Pipe, Cooler Refrigerant Liquid, A[08.1992 - 12.1992] FZJ80..RHD..LUB;HDJ80,HZJ80..(GX,VX)..(ARL,GEN) |
88716-60760 |
US $57.95 |
||
|
88716A
|
88716A
88716-6A421 Pipe, Cooler Refrigerant Liquid, A[05.1993 - 01.1995] FZJ80,HDJ80,HZJ80 W(SINGLE AIR CONDITIONER) |
88716-6A421 |
from US $30.15 |
||
|
88723B
|
88723B
88723-20040 Label, Cooler Service Caution[05.1993 - 01.1995] HDJ80;HZJ80..GCC,GEN;FZJ80..RHD..VX..CBR;FZJ80,HZJ80..GX..ARL;FZJ80..VX..(ARL,GCC) ;FZJ80..(GX,STD)..(GCC,GEN) |
88723-20040 |
from US $2.37 |
||
|
88723B
|
88723B
88723-26010
Label, Cooler Service Caution
[08.1992 - 05.1993] FZJ80,HZJ80..(GX,VX)..GCC DUAL AIR CONDITIONER; HDJ80..GX;FZJ80..4FC..GX;FZJ80,HDJ80..VX..GEN..(EFI,TD2);FZJ80,HZJ80..5F..(GX,VX). .(ARL,GEN) W(DUEL *AIC & COOL BOX); FZJ80,HDJ80..VX..ARL W(DUEL *AAC & COOL BOX) |
88723-26010 |
— | ||
|
88723B
|
88723B
88723-30040
Label, Cooler Service Caution
[08.1992 - 05.1993] FZJ80,HDJ80,HZJ80..(GX,VX)..(ARL,GEN) DUAL AIR CONDITIONER |
88723-30040 |
— | ||
|
8857890A01
|
8857890A01
88578-90A01
Packing A (For Cooler)
|
88578-90A01 |
— | ||
| replacement | |||||
|
8857890A01
|
8857890A01
88578-90A02
Packing A (For Cooler)
|
88578-90A02 |
— | ||
|
8857860080
|
8857860080
88578-60080 Paking, Cooler Air Duct |
88578-60080 |
US $6.99 |
||
|
8889589102
|
8889589102
88895-89102 Bush |
88895-89102 |
US $1.67 |
||
|
9009120809
|
9009120809
90091-20809
New Genuine Part
|
90091-20809 |
— | ||
|
9009932128
|
9009932128
90099-32128 New Genuine Part |
90099-32128 |
US $2.61 |
||
|
9011906126
|
9011906126
90119-06126 BOLT |
90119-06126 |
US $1.25 |
||
|
9011906336
|
9011906336
90119-06336 SCREW |
90119-06336 |
US $1.43 |
||
|
9017906032
|
9017906032
90179-06032
Direct
|
90179-06032 |
— | ||
| replacement | |||||
|
9017906032
|
9017906032
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
|
9338556025
|
9338556025
93385-56025 New Genuine Part |
93385-56025 |
US $0.44 |
||
