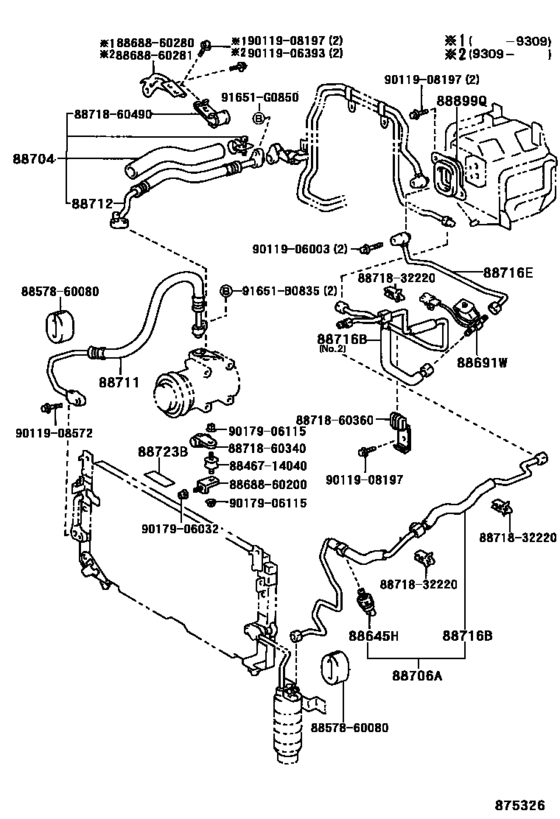

Heating & Air Conditioning - Cooler Piping ([01.1992 - ] FRONT PIPING---DUAL (9201- )FZJ80..RHD) Diagram Toyota LAND CRUISER
- Year
- 1992 - 1998
- Sales region
- General
- Frame
- FZJ80
- grade
- GX
- ENGINE
- 1FZFE
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- LAND CRUISER 80
- From
- 08.1992
- To
- 01.1998
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- RHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88645H
|
88645H
88645-60020
Switch, Pressure No.1
[08.1992 - 05.1993] FZJ80..GX,VX;HDJ80,HZJ80..RHD;FZJ80..RHD..STD..CBR |
88645-60020 |
— | ||
|
88645H
|
88645H
88645-60030 Switch, Pressure No.1[05.1993 -] FZJ80..5F;HDJ80,HZJ80;FZJ80..4FC..(GX,VX) |
88645-60030 |
from US $85.26 |
||
|
88691W
|
88691W
88690-60050
Valve, Magnet
[08.1992 - 12.1992] FZJ80,HDJ80,HZJ80..GX,VX |
88690-60050 |
— | ||
|
88691W
|
88691W
88690-60190 Valve, Magnet[05.1993 -] FZJ80..4FC..SOB;FZJ80..5F..(GX,VX);HDJ80,HZJ80..GX,VX;FZJ80..4FC..LUB..VX..GCC;FZJ 80..4FC..(GX,VX)..(ARL,GEN) |
88690-60190 |
US $214.62 |
||
|
88704
|
88704
88704-60030 Hose Sub-Assy, Suction[08.1992 - 05.1993] FZJ80 |
88704-60030 |
US $211.12 |
||
|
88704
|
88704
88704-60050 Hose Sub-Assy, Suction[05.1993 -] FZJ80 |
88704-60050 |
US $234.12 |
||
|
88706A
|
88706A
88706-60020 Tube Sub-Assy, Liquid, A[08.1992 - 05.1993] FZJ80..STD..EFI SINGLE AIR CONDITIONER; FZJ80..GX..ARL SINGLE DEALER OPT |
88706-60020 |
US $243.15 |
||
|
88706A
|
88706A
88706-60060 Tube Sub-Assy, Liquid, A[08.1992 - 05.1993] FZJ80..GX,VX DUAL AIR CONDITIONER |
88706-60060 |
US $275.18 |
||
|
88711
|
88711
88711-60240
Hose, Cooler Refrigerant Discharge, No.1
[08.1992 - 05.1993] FZJ80 |
88711-60240 |
— | ||
|
88711
|
88711
88711-60360 Hose, Cooler Refrigerant Discharge, No.1[05.1993 -] FZJ80 |
88711-60360 |
US $165.98 |
||
|
88712
|
88712
88712-60430
Hose, Cooler Refrigerant Suction, No.1
[08.1992 - 05.1993] FZJ80..GCC,GEN;FZJ80..LUB..ARL; FZJ80..STD..EFI SINGLE DEALER OPT |
88712-60430 |
— | ||
|
88712
|
88712
88712-60590 Hose, Cooler Refrigerant Suction, No.1[05.1993 -] FZJ80 |
88712-60590 |
US $179.09 |
||
|
88716B
|
88716B
88716-6A410 Pipe, Cooler Refrigerant Liquid, B[05.1993 - 01.1995] FZJ80..GX,STD;FZJ80..RHD..VX..CBR;FZJ80..VX..(ARL,GCC); FZJ80..RHD..LUB NO.1; FZJ80..LHD..VX..GEN SINGLE AIR CONDITIONER |
88716-6A410 |
from US $80.52 |
||
|
88716B
|
88716B
88726-60030
Pipe, Cooler Refrigerant Liquid, B
[08.1992 - 05.1993] FZJ80..GX..ARL NO.2; FZJ80..VX..ARL;FZJ80,HDJ80,HZJ80..RHD..(GX,VX)..(CBR,DSL,TD2) DUAL AIR CONDITIONER,NO.2 |
88726-60030 |
— | ||
|
88716B
|
88716B
88726-60230 Pipe, Cooler Refrigerant Liquid, B[05.1993 - 01.1995] FZJ80,HDJ80,HZJ80..RHD..(GX,VX) NO.2 |
88726-60230 |
US $80.08 |
||
|
88716B
|
88716B
88726-60360 Pipe, Cooler Refrigerant Liquid, B[01.1995 - 03.2001] FZJ80,HDJ80,HZJ80..RHD..(GX,VX) NO.2 |
88726-60360 |
US $97.55 |
||
|
88716E
|
88716E
88726-60040
Pipe, Cooler Refrigerant Liquid, E
[08.1992 - 05.1993] FZJ80,HDJ80,HZJ80..RHD..(GX,VX) DUAL AIR CONDITIONER |
88726-60040 |
— | ||
|
88716E
|
88716E
88726-60170 Pipe, Cooler Refrigerant Liquid, ECOOLER REFRIGERANT LIQUID, E [08.1992 - 05.1993] FZJ80..STD..EFI; FZJ80..GX..ARL SINGLE DEALER OPT |
88726-60170 |
US $78.62 |
||
|
88716E
|
88716E
88726-60240 Pipe, Cooler Refrigerant Liquid, E[05.1993 - 01.1995] FZJ80..GX..ARL; FZJ80..VX..ARL;FZJ80,HDJ80,HZJ80..RHD..(GX,VX)..(CBR,DSL,TD2) DUAL AIR CONDITIONER |
88726-60240 |
US $37.71 |
||
|
88716E
|
88716E
88726-60370 Pipe, Cooler Refrigerant Liquid, E[01.1995 - 03.2001] FZJ80..ARL;HZJ80..4FC;HDJ80..RHD..4FC..VX; FZJ80,HDJ80..RHD..GX..(CBR,TD4);HDJ80,HZJ80..RHD..5F..(GX,VX)..(DSL,TD2) DUAL AIR CONDITIONER |
88726-60370 |
US $50.67 |
||
|
88723B
|
88723B
88723-20040 Label, Cooler Service Caution[05.1993 - 01.1995] HDJ80;HZJ80..GCC,GEN;FZJ80..RHD..VX..CBR;FZJ80,HZJ80..GX..ARL;FZJ80..VX..(ARL,GCC) ;FZJ80..(GX,STD)..(GCC,GEN) |
88723-20040 |
from US $3.32 |
||
|
88723B
|
88723B
88723-26010
Label, Cooler Service Caution
[08.1992 - 05.1993] FZJ80,HZJ80..(GX,VX)..GCC DUAL AIR CONDITIONER; HDJ80..GX;FZJ80..4FC..GX;FZJ80,HDJ80..VX..GEN..(EFI,TD2);FZJ80,HZJ80..5F..(GX,VX). .(ARL,GEN) W(DUEL *AIC & COOL BOX); FZJ80,HDJ80..VX..ARL W(DUEL *AAC & COOL BOX) |
88723-26010 |
— | ||
|
88723B
|
88723B
88723-30040
Label, Cooler Service Caution
[08.1992 - 05.1993] FZJ80,HDJ80,HZJ80..(GX,VX)..(ARL,GEN) DUAL AIR CONDITIONER |
88723-30040 |
— | ||
|
88899Q
|
88899Q
88899-60050 Plate, Cover[08.1992 - 05.1993] FZJ80,HDJ80,HZJ80..GCC,GEN; FZJ80,HDJ80,HZJ80..LUB..ARL DEALER OPTION |
88899-60050 |
US $8.21 |
||
|
88899Q
|
88899Q
88899-60060
Plate, Cover
[08.1992 - 05.1993] FZJ80,HDJ80,HZJ80..ARL MAKER OPTION |
88899-60060 |
— | ||
|
91651B0835
|
91651B0835
91651-B0835 BOLT |
91651-B0835 |
US $1.24 |
||
|
91651G0850
|
91651G0850
91651-G0850
New Genuine Part
|
91651-G0850 |
— | ||
|
8846714040
|
8846714040
88467-14040 Cushion, Cooler Condenser, No.1 |
88467-14040 |
from US $1.75 |
||
|
8857860080
|
8857860080
88578-60080 Paking, Cooler Air Duct |
88578-60080 |
US $6.64 |
||
|
8868860200
|
8868860200
88688-60200
Bracket, Cooler Diaphragm
|
88688-60200 |
— | ||
|
8868860280
|
8868860280
88688-60280
Bracket, Cooler Diaphragm
|
88688-60280 |
— | ||
|
8868860281
|
8868860281
88688-60281
Bracket, Cooler Diaphragm
|
88688-60281 |
— | ||
|
8871832220
|
8871832220
88718-32220 Clamp(For Cooler Refrigerant Pipe), No.2 |
88718-32220 |
from US $1.37 |
||
|
8871860340
|
8871860340
88718-60340
Pipe, Cooler Refrigerant Suction, No.2
|
88718-60340 |
— | ||
|
8871860360
|
8871860360
88718-60360
Pipe, Cooler Refrigerant Suction, No.2
|
88718-60360 |
— | ||
|
8871860490
|
8871860490
88718-60490
Pipe, Cooler Refrigerant Suction, No.2
|
88718-60490 |
— | ||
| replacement | |||||
|
8871860490
|
8871860490
88718-60760
Pipe, Cooler Refrigerant Suction, No.2
|
88718-60760 |
— | ||
|
9011906003
|
9011906003
90119-06003 New Genuine Part |
90119-06003 |
US $0.87 |
||
|
9011906393
|
9011906393
90119-06393 Bolt(For Suspension Control Oil Cooler) |
90119-06393 |
US $0.96 |
||
|
9011908197
|
9011908197
90119-08197 New Genuine Part |
90119-08197 |
US $2.06 |
||
|
9011908572
|
9011908572
90119-08572 New Genuine Part |
90119-08572 |
US $2.62 |
||
| replacement | |||||
|
9011908572
|
9011908572
91651-G0845 New Genuine Part |
91651-G0845 |
US $2.62 |
||
|
9017906032
|
9017906032
90179-06032
Direct
|
90179-06032 |
— | ||
| replacement | |||||
|
9017906032
|
9017906032
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $1.51 |
||
