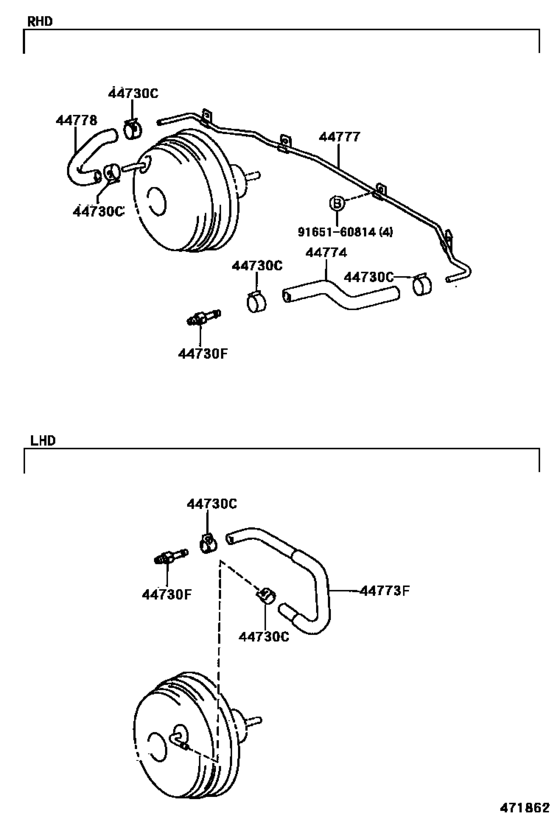

Brake Booster & Vacuum Tube ([08.1992 - ] (9208- )EFI) Diagram Toyota LAND CRUISER
- Year
- 1992 - 1998
- Sales region
- General
- Frame
- FZJ80
- grade
- GX
- ENGINE
- 1FZFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- LAND CRUISER 80
- From
- 08.1992
- To
- 01.1998
- Gear Shift Type
- 4FC
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- RHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44730C
|
44730C
90467-16017 Clip(For Vacuum Hose)[08.1992 - 08.1993] FZJ80..RHD;HDJ80,HZJ80..LHD |
90467-16017 |
US $2.89 |
||
|
44730C
|
44730C
96134-51500
Clip(For Ventilation Hose No.2)
[08.1993 - 01.1998] FZJ80..RHD;HDJ80,HZJ80..LHD |
96134-51500 |
— | ||
| replacement | |||||
|
44730C
|
44730C
96133-41500 Clamp Or Clip(For Air Hose, No.5)[08.1993 - 01.1998] FZJ80..RHD;HDJ80,HZJ80..LHD |
96133-41500 |
from US $2.26 |
||
|
44730F
|
44730F
90404-51237 Union, No.3[05.1993 - 03.1994] FZJ80 |
90404-51237 |
US $9.68 |
||
|
44730F
|
44730F
90404-51319 Union, No.1[08.1992 - 05.1993] FZJ80..EFI |
90404-51319 |
from US $3.94 |
||
|
44774
|
44774
44774-60160
Hose, Union To Connector Tube
[08.1992 - 01.1998] FZJ80..ARL |
44774-60160 |
— | ||
|
44777
|
44777
44777-60230 Connector, Vacuum Hose, No.1[08.1992 - 01.1995] HDJ80..5F..GX;HDJ80..4FC..ARL;FZJ80,HZJ80..RHD..(DSL,EFI) |
44777-60230 |
US $19.95 |
||
|
44778
|
44778
44778-60050
Hose, Connector To Check Valve
[08.1992 - 01.1998] FZJ80..RHD |
44778-60050 |
— | ||
|
9165160814
|
9165160814
91651-60814
Clamp Or Clip, Hose(for Radiator Outlet No.1)
|
91651-60814 |
— | ||
| replacement | |||||
|
9165160814
|
9165160814
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.84 |
||
