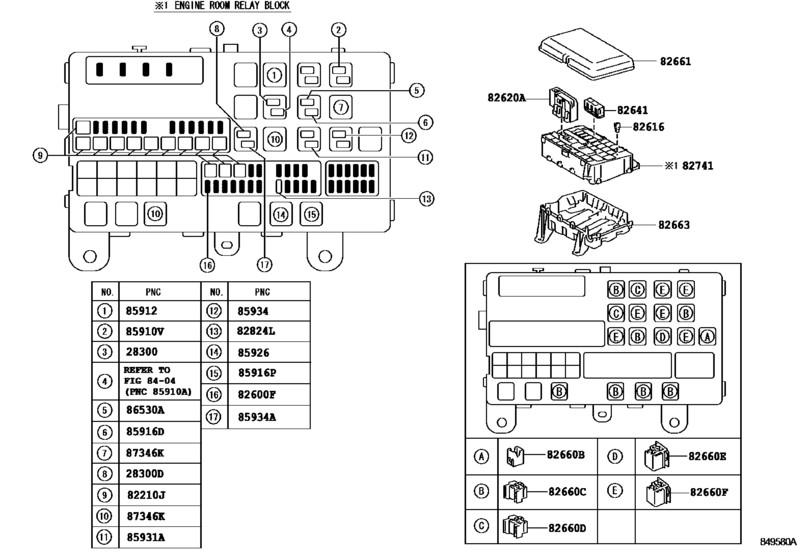

Switch & Relay & Computer ([12.2007 - 02.2012] ENGINE ROOM RELAY BLOCK (0712-1202)) Diagram Toyota LAND CRUISER
- Year
- 2007 - 2016
- Sales region
- General
- Frame
- GRJ200
- grade
- GX
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 200
- From
- 12.2007
- To
- 01.2016
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser (CHINA)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-21020 Relay Assy, Starter[07.2014 - 01.2016] 1GRFE,1URFE..GRJ200,URJ202 |
28300-21020 |
from US $40.58 |
||
|
28300
|
28300
28300-28010
Relay Assy, Starter
[12.2007 - 02.2012] 1GRFE,2UZFE..GRJ200,UZJ200..5FC |
28300-28010 |
— | ||
| replacement | |||||
|
28300
|
28300
28300-21020 Relay Assy, Starter[12.2007 - 02.2012] 1GRFE,2UZFE..GRJ200,UZJ200..5FC |
28300-21020 |
from US $40.58 |
||
|
28300D
|
28300D
90987-T2005
Relay, Water Pump
[12.2007 - 02.2012] 1GRFE,2UZFE..GRJ200,UZJ200..5FC |
90987-T2005 |
— | ||
|
82210J
|
82210J
90982-08294 Fusible Link[12.2007 - 02.2012] GRJ200,UZJ200..5FC 40A,TERMINAL:FEMALE |
90982-08294 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08295 Fusible Link[12.2007 - 02.2012] GRJ200,UZJ200..5FC 30A,TERMINAL:FEMALE |
90982-08295 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08296 Fusible Link[12.2007 - 02.2012] GRJ200,UZJ200..5FC 50A,TERMINAL:FEMALE |
90982-08296 |
from US $6.24 |
||
|
82600F
|
82600F
90982-09019 Instrument Panel Fuse[12.2007 - 02.2012] GRJ200,UZJ200..5FC 5A,MINI FUSE |
90982-09019 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[12.2007 - 02.2012] GRJ200,UZJ200..5FC 7.5A,MINI FUSE |
90982-09020 |
from US $0.96 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[12.2007 - 02.2012] GRJ200,UZJ200..5FC 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[12.2007 - 02.2012] GRJ200,UZJ200..5FC 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[12.2007 - 02.2012] GRJ200,UZJ200..5FC 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[12.2007 - 02.2012] GRJ200,UZJ200..5FC 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[12.2007 - 02.2012] GRJ200,UZJ200..5FC 30A,MINI FUSE |
90982-09025 |
from US $0.96 |
||
|
82616
|
82616
82616-58010 Puller, Fuse[12.2007 - 02.2012] GRJ200,UZJ200..5FC |
82616-58010 |
from US $2.40 |
||
|
82620A
|
82620A
82620-0C020 Block Assy, Fusible LinkFUSIBLE LINK [12.2007 - 02.2012] GRJ200..5FC |
82620-0C020 |
US $25.94 |
||
|
82641
|
82641
82641-47020 Relay, Integration No.1[12.2007 - 02.2012] GRJ200,UZJ200..5FC |
82641-47020 |
from US $79.92 |
||
|
82660B
|
82660B
82660-0C100 Block Assy, Relay[12.2007 - 02.2012] GRJ200,UZJ200..5FC |
82660-0C100 |
US $7.86 |
||
|
82660C
|
82660C
82660-0H070 Block Assy, Relay[12.2007 - 02.2012] GRJ200,UZJ200..5FC |
82660-0H070 |
US $6.99 |
||
|
82660D
|
82660D
82660-26270 Block Assy, Relay, Engine Room[12.2007 - 02.2012] GRJ200,UZJ200..5FC |
82660-26270 |
US $8.48 |
||
|
82660E
|
82660E
82660-42030 Block Assy, Relay, Engine Room[12.2007 - 02.2012] GRJ200,UZJ200..5FC |
82660-42030 |
US $7.13 |
||
|
82660F
|
82660F
82660-52010 Block Assy, Relay[12.2007 - 02.2012] GRJ200,UZJ200..5FC |
82660-52010 |
US $7.13 |
||
|
82661
|
82661
82661-60180 Cover, Relay Block, No.1RELAY BLOCK, NO.1 [12.2007 - 02.2012] GRJ200..5FC |
82661-60180 |
US $37.52 |
||
|
82661
|
82661
82661-60280 Cover, Relay Block, No.1[02.2012 - 01.2016] GRJ200 |
82661-60280 |
US $48.03 |
||
|
82663
|
82663
82663-0C060 Cover, Relay Block, Lower[12.2007 - 02.2012] GRJ200,UZJ200..5FC |
82663-0C060 |
from US $49.98 |
||
|
82741
|
82741
82741-0C060 Block, Engine Room Relay[12.2007 - 02.2012] GRJ200,UZJ200..5FC |
82741-0C060 |
from US $99.74 |
||
|
82741
|
82741
82741-60060 Block, Engine Room Relay[02.2012 - 07.2012] GRJ200,URJ202 |
82741-60060 |
US $113.65 |
||
|
82741
|
82741
82741-60061 Block, Engine Room Relay[07.2012 - 01.2016] GRJ200,URJ202 |
82741-60061 |
from US $100.68 |
||
|
82824L
|
82824L
82824-41010 Pin, Short[12.2007 - 02.2012] GRJ200,UZJ200..5FC |
82824-41010 |
from US $3.24 |
||
|
85910V
|
85910V
90987-T2005
Relay, Water Pump
[11.2009 - 02.2012] GRJ200 VX(SPECIAL) PACKAGE |
90987-T2005 |
— | ||
|
85912
|
85912
90987-T4002
Relay Assy (For Heater Blower Motor)
[12.2007 - 02.2012] GRJ200,UZJ200..5FC |
90987-T4002 |
— | ||
|
85916D
|
85916D
90987-T2005
Relay, Water Pump
[11.2009 - 02.2012] GRJ200 VX(SPECIAL) PACKAGE |
90987-T2005 |
— | ||
|
85916P
|
85916P
90987-T2004
Relay, Water Pump
[12.2007 - 02.2012] GRJ200,UZJ200..5FC |
90987-T2004 |
— | ||
|
85926
|
85926
90987-T2004
Relay, Water Pump
[12.2007 - 02.2012] GRJ200,UZJ200..5FC |
90987-T2004 |
— | ||
|
85934
|
85934
90987-02028 Relay, Water Pump[12.2007 - 02.2012] GRJ200,UZJ200..5FC |
90987-02028 |
from US $44.54 |
||
|
85934A
|
85934A
90987-02028 Relay, Water Pump[12.2007 - 02.2012] GRJ200,UZJ200..5FC |
90987-02028 |
from US $44.54 |
||
|
86530A
|
86530A
90987-T2005
Relay, Water Pump
[12.2007 - 02.2012] GRJ200,UZJ200..5FC |
90987-T2005 |
— | ||
|
87346K
|
87346K
90987-T2004
Relay, Water Pump
[12.2007 - 02.2012] GRJ200,UZJ200..5FC |
90987-T2004 |
— | ||
