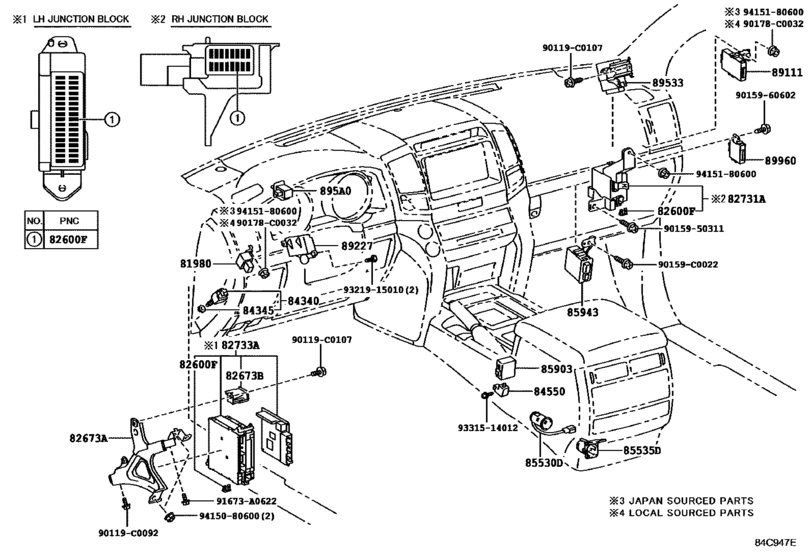

Switch & Relay & Computer ([02.2012 - 01.2016] COWL (1202-1601)) Diagram Toyota LAND CRUISER
- Year
- 2007 - 2016
- Sales region
- General
- Frame
- GRJ200
- grade
- GX
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 200
- From
- 12.2007
- To
- 01.2016
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser (CHINA)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
895A0
|
895A0
895A0-60010
Relay Assy, Stop Lamp Control
[12.2007 - 03.2010] GRJ200,UZJ200..5FC |
895A0-60010 |
— | ||
| replacement | |||||
|
895A0
|
895A0
895A0-60011 Relay Assy, Stop Lamp Control[12.2007 - 03.2010] GRJ200,UZJ200..5FC |
895A0-60011 |
US $78.04 |
||
|
895A0
|
895A0
895A0-60011 Relay Assy, Stop Lamp Control[04.2010 - 02.2012] GRJ200,UZJ200 |
895A0-60011 |
US $78.04 |
||
|
81980
|
81980
81980-0G030
Flasher Assy, Turn Signal
[02.2012 - 01.2016] GRJ200,URJ202 |
81980-0G030 |
— | ||
|
81980
|
81980
81980-60110 Flasher Assy, Turn SignalTURN SIGNAL [12.2007 - 02.2012] GRJ200,UZJ200..5FC |
81980-60110 |
US $62.21 |
||
|
82600F
|
82600F
90982-09019 Instrument Panel Fuse[12.2007 - 02.2012] GRJ200,UZJ200..5FC 5A,MINI FUSE |
90982-09019 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[12.2007 - 02.2012] GRJ200,UZJ200..5FC 7.5A,MINI FUSE |
90982-09020 |
from US $0.96 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[12.2007 - 02.2012] GRJ200,UZJ200..5FC 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[12.2007 - 02.2012] GRJ200,UZJ200..5FC 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[12.2007 - 02.2012] GRJ200,UZJ200..5FC 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[12.2007 - 02.2012] GRJ200,UZJ200..5FC 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[12.2007 - 02.2012] GRJ200,UZJ200..5FC 30A,MINI FUSE |
90982-09025 |
from US $0.96 |
||
|
82673A
|
82673A
82673-60040
Bracket, Junction Block
[12.2007 - 02.2012] GRJ200,UZJ200..5FC |
82673-60040 |
— | ||
|
82673B
|
82673B
82673-60060
Bracket, Junction Block
[12.2007 - 02.2012] GRJ200,UZJ200..5FC |
82673-60060 |
— | ||
|
82731A
|
82731A
82731-0G030
Block, Cowl Side Junction, Rh
[02.2012 - 01.2016] GRJ200,URJ202 |
82731-0G030 |
— | ||
|
82731A
|
82731A
82731-60250
Block, Cowl Side Junction, Rh
[11.2009 - 02.2012] GRJ200 VX(SPECIAL) PACKAGE |
82731-60250 |
— | ||
|
82733A
|
82733A
82733-60B60
Block, Cowl Side Junction, Lh
[12.2007 - 11.2011] GRJ200,UZJ200..5FC..GX |
82733-60B60 |
— | ||
| replacement | |||||
|
82733A
|
82733A
82733-60B61
Block, Cowl Side Junction, Lh
[12.2007 - 11.2011] GRJ200,UZJ200..5FC..GX |
82733-60B61 |
— | ||
|
82733A
|
82733A
82733-60B61
Block, Cowl Side Junction, Lh
[12.2011 - 02.2012] GRJ200,UZJ200..GX |
82733-60B61 |
— | ||
|
82733A
|
82733A
82733-60P50
Block, Cowl Side Junction, Lh
[02.2012 - 01.2016] GRJ200 |
82733-60P50 |
— | ||
|
84340
|
84340
84340-69075 Switch Assy, Stop Lamp[12.2007 - 02.2012] GRJ200,UZJ200..5FC |
84340-69075 |
from US $27.01 |
||
|
84345
|
84345
84345-51010 Adjuster, Stop Lamp Switch Mounting[12.2007 - 02.2012] GRJ200,UZJ200..5FC |
84345-51010 |
from US $3.52 |
||
|
84550
|
84550
84550-16060 Switch Assy, Parking Brake[12.2007 - 02.2012] GRJ200,UZJ200..5FC |
84550-16060 |
from US $17.48 |
||
|
85530D
|
85530D
85530-60110 Socket Assy, Power Outlet, No.2[02.2012 - 01.2016] GRJ200,URJ202 |
85530-60110 |
US $30.40 |
||
|
85535D
|
85535D
85535-60110-A0 Cover, Power Outlet Socket, Center[02.2012 - 01.2016] GRJ200,URJ202 SHELL,TRIM0# |
85535-60110-A0 |
from US $5.68 |
||
|
85903
|
85903
85903-52020 Computer Sub-Assy, Shift Lock Control[12.2007 - 02.2012] GRJ200,UZJ200..5FC |
85903-52020 |
from US $48.03 |
||
|
89111
|
89111
89111-60060
Computer, Network Gateway
[12.2007 - 02.2012] GRJ200,UZJ200..5FC |
89111-60060 |
— | ||
|
89111
|
89111
89111-60080
Computer, Network Gateway
[02.2012 - 08.2014] GRJ200,URJ202 |
89111-60080 |
— | ||
| replacement | |||||
|
89111
|
89111
89111-60110
Computer, Network Gateway
[02.2012 - 08.2014] GRJ200,URJ202 |
89111-60110 |
— | ||
|
89111
|
89111
89111-60110
Computer, Network Gateway
[09.2014 - 01.2016] GRJ200,URJ202 |
89111-60110 |
— | ||
|
89533
|
89533
89533-60241
Computer, 4 Wheel Drive Control
[12.2007 - 11.2010] GRJ200,UZJ200..5FC |
89533-60241 |
— | ||
| replacement | |||||
|
89533
|
89533
89533-60380 Computer, 4 Wheel Drive Control[12.2007 - 11.2010] GRJ200,UZJ200..5FC |
89533-60380 |
from US $345.81 |
||
|
89533
|
89533
89533-60242
Computer, 4 Wheel Drive Control
[11.2010 - 02.2012] GRJ200,UZJ200 |
89533-60242 |
— | ||
| replacement | |||||
|
89533
|
89533
89533-60390 Computer, 4 Wheel Drive Control[11.2010 - 02.2012] GRJ200,UZJ200 |
89533-60390 |
from US $304.20 |
||
|
89960
|
89960
89960-60020
Computer Assy, Headlamp Leveling
[02.2012 - 01.2016] GRJ200,URJ202; URJ202 WITH(ELECTRICAL WINCH) |
89960-60020 |
— | ||
|
90119C0092
|
90119C0092
90119-C0092
New Genuine Part
|
90119-C0092 |
— | ||
|
90119C0107
|
90119C0107
90119-C0107
New Genuine Part
|
90119-C0107 |
— | ||
|
90159C0022
|
90159C0022
90159-C0022
New Genuine Part
|
90159-C0022 |
— | ||
|
90178C0032
|
90178C0032
90178-C0032
Nut, Wire Adjusting, No.1
|
90178-C0032 |
— | ||
|
91673A0622
|
91673A0622
91673-A0622 BOLT FLANGE |
91673-A0622 |
US $0.96 |
||
|
9015950311
|
9015950311
90159-50311 SCREW |
90159-50311 |
from US $0.76 |
||
| replacement | |||||
|
9015950311
|
9015950311
90159-A0034 SCREW WWASHER |
90159-A0034 |
US $22.20 |
||
|
9015960602
|
9015960602
90159-60602 SCREW |
90159-60602 |
from US $0.66 |
||
|
9321915010
|
9321915010
93219-15010 SCREW |
93219-15010 |
US $2.04 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.82 |
||
|
9415080600
|
9415080600
94150-80600 NUT FLANGE |
94150-80600 |
from US $0.72 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.74 |
||
