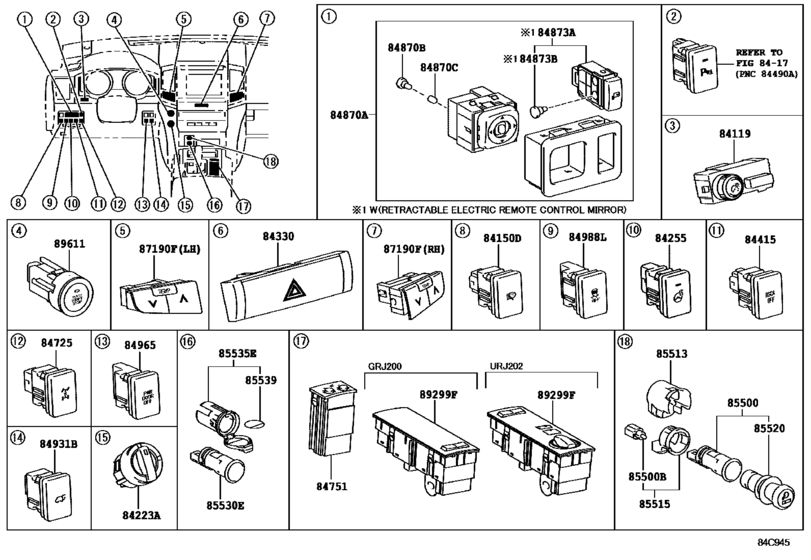

Switch & Relay & Computer ([02.2012 - 01.2016] INSTRUMENT PANEL (1202-1601)) Diagram Toyota LAND CRUISER
- Year
- 2007 - 2016
- Sales region
- General
- Frame
- GRJ200
- grade
- GX
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 200
- From
- 12.2007
- To
- 01.2016
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser (CHINA)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84150D
|
84150D
84150-06010
Switch Assy, Headlamp Cleaner
[06.2014 - 02.2015] GRJ200,URJ202; URJ202 WITH(ELECTRICAL WINCH) |
84150-06010 |
— | ||
| replacement | |||||
|
84150D
|
84150D
84150-06011
Switch Assy, Headlamp Cleaner
[06.2014 - 02.2015] GRJ200,URJ202; URJ202 WITH(ELECTRICAL WINCH) |
84150-06011 |
— | ||
|
84150D
|
84150D
84150-06011
Switch Assy, Headlamp Cleaner
[03.2015 - 01.2016] GRJ200,URJ202; URJ202 WITH(ELECTRICAL WINCH) |
84150-06011 |
— | ||
|
84150D
|
84150D
84150-33050 Switch Assy, Headlamp CleanerHEADLAMP CLEANER [02.2012 - 05.2014] GRJ200,URJ202; URJ202 WITH(ELECTRICAL WINCH) |
84150-33050 |
from US $39.75 |
||
| replacement | |||||
|
84150D
|
84150D
84150-33051 Switch Assy, Headlamp Cleaner[02.2012 - 05.2014] GRJ200,URJ202; URJ202 WITH(ELECTRICAL WINCH) |
84150-33051 |
from US $38.44 |
||
|
84223A
|
84223A
84223-60010 Switch, Transfer Position[12.2007 - 02.2012] GRJ200,UZJ200..5FC |
84223-60010 |
from US $85.84 |
||
|
84223A
|
84223A
84223-60020 Switch, Transfer PositionTRANSFER POSITION [02.2012 - 01.2016] GRJ200 |
84223-60020 |
from US $51.19 |
||
|
84223A
|
84223A
84223-60050 Switch, Transfer Position[02.2012 - 01.2016] URJ202; GRJ200 VX PACKAGE |
84223-60050 |
from US $106.29 |
||
|
84330
|
84330
84332-60280 Switch Assy, Hazard Warning Signal[12.2007 - 02.2012] GRJ200,UZJ200..5FC..GX |
84332-60280 |
from US $47.76 |
||
|
84330
|
84330
84332-60370
Switch Assy, Hazard Warning Signal
[02.2012 - 12.2014] GRJ200,URJ202; URJ202 VX(SPECIAL) PACKAGE; GRJ200,URJ202 AUDIO-EMV DVD AM/FM 9SPEAKER |
84332-60370 |
— | ||
| replacement | |||||
|
84330
|
84330
84332-60371 Switch Assy, Hazard Warning Signal[02.2012 - 12.2014] GRJ200,URJ202; URJ202 VX(SPECIAL) PACKAGE; GRJ200,URJ202 AUDIO-EMV DVD AM/FM 9SPEAKER |
84332-60371 |
from US $46.30 |
||
|
84330
|
84330
84332-60371 Switch Assy, Hazard Warning Signal[01.2015 - 01.2016] GRJ200,URJ202; URJ202 VX(SPECIAL) PACKAGE; GRJ200,URJ202 AUDIO-EMV DVD AM/FM 9SPEAKER |
84332-60371 |
from US $46.30 |
||
|
84415
|
84415
84415-60040 Switch, Curtain Airbag Cutoff[12.2007 - 02.2012] GRJ200,UZJ200..5FC |
84415-60040 |
US $39.75 |
||
| replacement | |||||
|
84415
|
84415
84415-60041 Switch, Curtain Airbag Cutoff[12.2007 - 02.2012] GRJ200,UZJ200..5FC |
84415-60041 |
US $39.60 |
||
|
84415
|
84415
84415-60041 Switch, Curtain Airbag Cutoff[12.2014 - 01.2016] GRJ200,URJ202 |
84415-60041 |
US $39.60 |
||
|
84725
|
84725
84725-60150 Switch, Center Differential Lock[12.2007 - 02.2012] GRJ200,UZJ200..5FC |
84725-60150 |
US $60.28 |
||
|
84725
|
84725
84725-60170
Switch, Center Differential Lock
[02.2012 - 11.2014] GRJ200,URJ202 |
84725-60170 |
— | ||
| replacement | |||||
|
84725
|
84725
84725-60171 Switch, Center Differential Lock[02.2012 - 11.2014] GRJ200,URJ202 |
84725-60171 |
US $43.51 |
||
|
84725
|
84725
84725-60171 Switch, Center Differential Lock[12.2014 - 01.2016] GRJ200,URJ202 |
84725-60171 |
US $43.51 |
||
|
84751
|
84751
84751-60190 Switch, Seat Heater[11.2009 - 08.2010] GRJ200 VX(SPECIAL) PACKAGE |
84751-60190 |
US $179.09 |
||
| replacement | |||||
|
84751
|
84751
84751-60191 Switch, Seat Heater[11.2009 - 08.2010] GRJ200 VX(SPECIAL) PACKAGE |
84751-60191 |
from US $131.04 |
||
|
84751
|
84751
84751-60191 Switch, Seat Heater[09.2010 - 02.2012] UZJ200..VX; GRJ200 VX(SPECIAL) PACKAGE |
84751-60191 |
from US $131.04 |
||
|
84870A
|
84870A
84870-60100-A0 Switch Assy, Outer Mirror[02.2012 - 01.2016] GRJ200,URJ202 SHELL,TRIM0# |
84870-60100-A0 |
US $76.35 |
||
|
84870A
|
84870A
84870-60100-E0 Switch Assy, Outer MirrorOUTER MIRROR [12.2007 - 02.2012] GRJ200,UZJ200..5FC..GX DK. BROWN,TRIM4# |
84870-60100-E0 |
from US $78.62 |
||
|
84870B
|
84870B
84999-10470 Bulb, Hazard Warning Signal Switch[12.2007 - 02.2012] GRJ200,UZJ200..5FC 14V 1.12W |
84999-10470 |
from US $6.12 |
||
|
84870C
|
84870C
84998-10430 Cap, Outer Mirror Switch Bulb[12.2007 - 02.2012] GRJ200,UZJ200..5FC |
84998-10430 |
from US $1.99 |
||
|
85500
|
85500
85500-60090 Lighter Assy, Cigarette[12.2007 - 02.2012] GRJ200,UZJ200..5FC |
85500-60090 |
from US $28.76 |
||
|
85500B
|
85500B
90010-01022 Bulb, Key Cylinder Lamp[12.2007 - 02.2012] GRJ200,UZJ200..5FC 14V 1.4W,W(GREEN CAP) |
90010-01022 |
from US $2.69 |
||
|
85513
|
85513
85513-28010 Cover, Cigarette Lighter[12.2007 - 02.2012] GRJ200,UZJ200..5FC |
85513-28010 |
from US $2.65 |
||
|
85515
|
85515
85515-48010 Stay, Cigarette Lighter Bezel[12.2007 - 02.2012] GRJ200,UZJ200..5FC |
85515-48010 |
US $11.53 |
||
|
85520
|
85520
85520-28010 Knob And Element Assy, Cigarette Lighter[12.2007 - 02.2012] GRJ200,UZJ200..5FC |
85520-28010 |
from US $17.90 |
||
|
85530E
|
85530E
85530-42010 Socket Assy, Power Outlet, No.1[12.2007 - 02.2012] GRJ200,UZJ200..5FC |
85530-42010 |
from US $26.60 |
||
|
85535E
|
85535E
85535-60160
Cover, Power Outlet Socket, No.2
[12.2007 - 02.2012] GRJ200,UZJ200..5FC |
85535-60160 |
— | ||
|
85539
|
85539
85539-48030
Label, Power Outlet Notice
[12.2007 - 02.2012] GRJ200,UZJ200..5FC |
85539-48030 |
— | ||
|
87190F
|
87190F
87190-60010 Switch Assy, Temperature Control[12.2007 - 02.2012] GRJ200,UZJ200..5FC LH |
87190-60010 |
from US $62.46 |
||
|
87190F
|
87190F
87190-60020 Switch Assy, Temperature Control[12.2007 - 02.2012] GRJ200,UZJ200..5FC RH |
87190-60020 |
US $52.85 |
||
|
89299F
|
89299F
89299-60070
Switch, Suspension Control
[12.2007 - 02.2012] GRJ200,UZJ200..5FC..GX |
89299-60070 |
— | ||
|
89611
|
89611
89611-52010 Switch, Push Start[12.2007 - 02.2008] GRJ200,UZJ200 |
89611-52010 |
US $196.56 |
||
| replacement | |||||
|
89611
|
89611
89611-52015 Switch, Push Start[12.2007 - 02.2008] GRJ200,UZJ200 |
89611-52015 |
from US $167.90 |
||
|
89611
|
89611
89611-52011 Switch, Push Start[03.2008 - 03.2010] GRJ200,UZJ200..5FC |
89611-52011 |
US $163.07 |
||
| replacement | |||||
|
89611
|
89611
89611-52015 Switch, Push Start[03.2008 - 03.2010] GRJ200,UZJ200..5FC |
89611-52015 |
from US $167.90 |
||
|
89611
|
89611
89611-52012 Switch, Push StartPUSH START [04.2010 - 06.2011] GRJ200,UZJ200 |
89611-52012 |
US $163.07 |
||
| replacement | |||||
|
89611
|
89611
89611-52015 Switch, Push Start[04.2010 - 06.2011] GRJ200,UZJ200 |
89611-52015 |
from US $167.90 |
||
|
89611
|
89611
89611-52013 Switch, Push Start[07.2011 - 01.2012] GRJ200,UZJ200 |
89611-52013 |
US $163.07 |
||
| replacement | |||||
|
89611
|
89611
89611-52015 Switch, Push Start[07.2011 - 01.2012] GRJ200,UZJ200 |
89611-52015 |
from US $167.90 |
||
|
89611
|
89611
89611-52014
Switch, Push Start
[05.2012 - 01.2016] GRJ200,URJ202 |
89611-52014 |
— | ||
| replacement | |||||
|
89611
|
89611
89611-52015 Switch, Push Start[05.2012 - 01.2016] GRJ200,URJ202 |
89611-52015 |
from US $167.90 |
||
