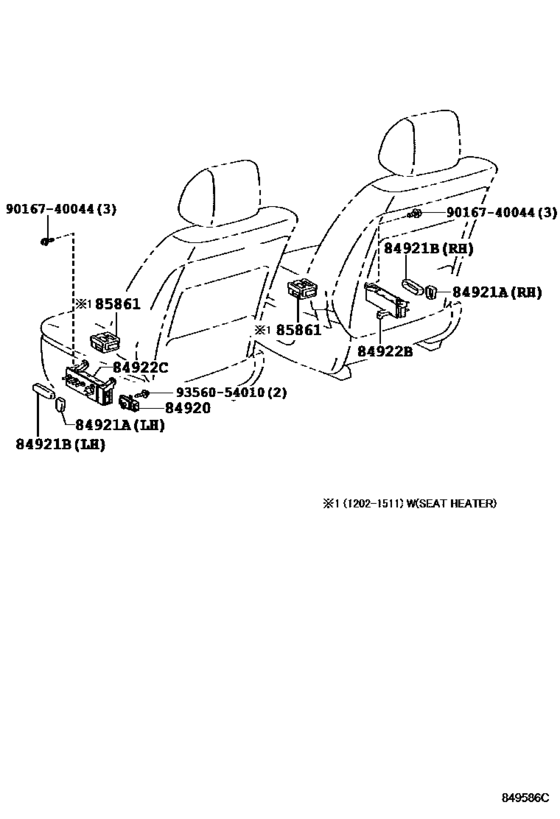

Switch & Relay & Computer ([12.2007 - ] SEAT (0712- )) Diagram Toyota LAND CRUISER
- Year
- 2007 - 2016
- Sales region
- General
- Frame
- GRJ200
- grade
- GX
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 200
- From
- 12.2007
- To
- 01.2016
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser (CHINA)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84920
|
84920
84920-60050-A5
Switch Assy, Power Seat
[02.2012 - 01.2016] URJ202 SHELL,TRIM0#; GRJ200 VX PACKAGE,SHELL,TRIM0# |
84920-60050-A5 |
— | ||
|
84920
|
84920
84920-60050-E3
Switch Assy, Power Seat
[11.2009 - 02.2012] GRJ200 VX(SPECIAL) PACKAGE,SAND BEIGE,TRIM4# |
84920-60050-E3 |
— | ||
|
84921A
|
84921A
84921-60110-A2 Knob, Power Seat Switch (For Reclining)[02.2012 - 01.2016] URJ202 SHELL,TRIM0#,RH; GRJ200 VX PACKAGE,SHELL,TRIM0#,RH |
84921-60110-A2 |
US $7.28 |
||
|
84921A
|
84921A
84921-60110-E3
Knob, Power Seat Switch (For Reclining)
[11.2009 - 02.2012] GRJ200 VX(SPECIAL) PACKAGE,SAND BEIGE,TRIM4#,RH |
84921-60110-E3 |
— | ||
| replacement | |||||
|
84921A
|
84921A
84921-58010-E3 Knob, Power Seat Switch (For Reclining)[11.2009 - 02.2012] GRJ200 VX(SPECIAL) PACKAGE,SAND BEIGE,TRIM4#,RH |
84921-58010-E3 |
from US $9.26 |
||
|
84921A
|
84921A
84921-60120-A3 Knob, Power Seat Switch (For Reclining)[02.2012 - 01.2016] URJ202 SHELL,TRIM0#,LH; GRJ200 VX PACKAGE,SHELL,TRIM0#,LH |
84921-60120-A3 |
from US $7.28 |
||
|
84921A
|
84921A
84921-60120-E3
Knob, Power Seat Switch (For Reclining)
[11.2009 - 02.2012] GRJ200 VX(SPECIAL) PACKAGE,SAND BEIGE,TRIM4#,LH |
84921-60120-E3 |
— | ||
| replacement | |||||
|
84921A
|
84921A
84921-58010-E3 Knob, Power Seat Switch (For Reclining)[11.2009 - 02.2012] GRJ200 VX(SPECIAL) PACKAGE,SAND BEIGE,TRIM4#,LH |
84921-58010-E3 |
from US $9.26 |
||
|
84921B
|
84921B
84921-60080-A3
Knob, Power Seat Switch (For Slide & Vertical)
[02.2012 - 01.2016] URJ202 SHELL,TRIM0#,LH; GRJ200 VX PACKAGE,SHELL,TRIM0#,LH |
84921-60080-A3 |
— | ||
|
84921B
|
84921B
84921-60080-E3 Knob, Power Seat Switch (For Slide & Vertical)[11.2009 - 02.2012] GRJ200 VX(SPECIAL) PACKAGE,SAND BEIGE,TRIM4#,LH |
84921-60080-E3 |
US $9.17 |
||
|
84921B
|
84921B
84921-60100-A2 Knob, Power Seat Switch (For Slide & Vertical)[02.2012 - 01.2016] URJ202 SHELL,TRIM0#,RH; GRJ200 VX PACKAGE,SHELL,TRIM0#,RH |
84921-60100-A2 |
US $7.57 |
||
|
84921B
|
84921B
84921-60100-E3
Knob, Power Seat Switch (For Slide & Vertical)
[11.2009 - 02.2012] GRJ200 VX(SPECIAL) PACKAGE,SAND BEIGE,TRIM4#,RH |
84921-60100-E3 |
— | ||
|
84922B
|
84922B
84922-58010 Switch, Front Power Seat[11.2009 - 02.2012] GRJ200 VX(SPECIAL) PACKAGE |
84922-58010 |
from US $107.74 |
||
|
84922C
|
84922C
84922-60120 Switch, Front Power Seat, Lh[11.2009 - 02.2012] GRJ200;UZJ200..VX VX(SPECIAL) PACKAGE |
84922-60120 |
from US $91.73 |
||
|
9016740044
|
9016740044
90167-40044 BOLT |
90167-40044 |
from US $0.76 |
||
|
9356054010
|
9356054010
93560-54010 SCREW |
93560-54010 |
US $1.12 |
||
