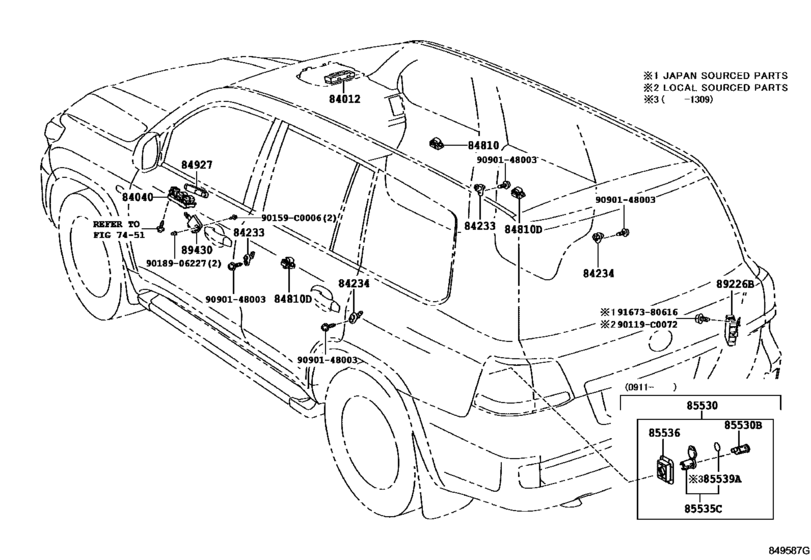

Switch & Relay & Computer ([12.2007 - 01.2016] DOOR & ROOF (0712-1601)) Diagram Toyota LAND CRUISER
- Year
- 2007 - 2016
- Sales region
- General
- Frame
- GRJ200
- grade
- GX
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 200
- From
- 12.2007
- To
- 01.2016
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser (CHINA)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84012
|
84012
84012-60380-A0
Control & Panel Sub-Assy, Integration
[02.2012 - 01.2016] GRJ200,URJ202 AUDIO-EMV DVD AM/FM 9SPEAKER,SHELL,TRIM0# |
84012-60380-A0 |
— | ||
|
84012
|
84012
84012-60390-A0 Control & Panel Sub-Assy, Integration[02.2012 - 01.2016] GRJ200,URJ202 SHELL,TRIM0# |
84012-60390-A0 |
US $25.33 |
||
|
84012
|
84012
84012-60390-E0
Control & Panel Sub-Assy, Integration
[12.2007 - 02.2012] GRJ200,UZJ200..5FC..GX SAND BEIGE,TRIM4# |
84012-60390-E0 |
— | ||
|
84040
|
84040
84040-33100 Master Switch Assy,multiplex Network[12.2007 - 02.2012] GRJ200,UZJ200..5FC |
84040-33100 |
from US $334.04 |
||
|
84040
|
84040
84040-60190 Master Switch Assy,multiplex Network[05.2013 - 01.2016] GRJ200,URJ202 |
84040-60190 |
US $227.08 |
||
|
84233
|
84233
84231-02160
Switch Assy, Courtesy Lamp (For Front Door)
[06.2014 - 01.2015] GRJ200,URJ202 |
84231-02160 |
— | ||
|
84233
|
84233
84231-0E070
Switch Assy, Courtesy Lamp (For Front Door)
[02.2015 - 01.2016] GRJ200,URJ202 |
84231-0E070 |
— | ||
|
84233
|
84233
84231-53010 Switch Assy, Courtesy Lamp (For Front Door)[12.2007 - 02.2012] GRJ200,UZJ200..5FC |
84231-53010 |
from US $10.56 |
||
|
84234
|
84234
84231-02160
Switch Assy, Courtesy Lamp (For Front Door)
[06.2014 - 01.2015] GRJ200,URJ202 |
84231-02160 |
— | ||
|
84234
|
84234
84231-0E070
Switch Assy, Courtesy Lamp (For Front Door)
[02.2015 - 01.2016] GRJ200,URJ202 |
84231-0E070 |
— | ||
|
84234
|
84234
84231-53010 Switch Assy, Courtesy Lamp (For Front Door)[12.2007 - 02.2012] GRJ200,UZJ200..5FC |
84231-53010 |
from US $10.56 |
||
|
84810
|
84810
84810-33120 Switch Assy, Power Window Regulator[12.2007 - 02.2012] GRJ200,UZJ200..5FC |
84810-33120 |
from US $54.80 |
||
| replacement | |||||
|
84810
|
84810
84810-06090 Switch Assy, Power Window Regulator[12.2007 - 02.2012] GRJ200,UZJ200..5FC |
84810-06090 |
US $211.68 |
||
|
84810D
|
84810D
84810-33120 Switch Assy, Power Window Regulator[12.2007 - 02.2012] GRJ200,UZJ200..5FC |
84810-33120 |
from US $54.80 |
||
| replacement | |||||
|
84810D
|
84810D
84810-06090 Switch Assy, Power Window Regulator[12.2007 - 02.2012] GRJ200,UZJ200..5FC |
84810-06090 |
US $211.68 |
||
|
85530
|
85530
85530-60270-A0
Socket Assy, Power Outlet, No.1
[02.2012 - 09.2013] GRJ200,URJ202 SHELL,TRIM0# |
85530-60270-A0 |
— | ||
|
85530
|
85530
85530-60270-E0
Socket Assy, Power Outlet, No.1
[11.2009 - 02.2012] GRJ200,UZJ200 DK. BROWN,TRIM4# |
85530-60270-E0 |
— | ||
|
85530
|
85530
85530-60360-A0 Socket Assy, Power Outlet, No.1[09.2013 - 01.2016] GRJ200,URJ202 SHELL,TRIM0# |
85530-60360-A0 |
US $26.06 |
||
|
85530B
|
85530B
85530-42010 Socket Assy, Power Outlet, No.1[11.2009 - 02.2012] GRJ200,UZJ200 |
85530-42010 |
from US $26.60 |
||
|
85535C
|
85535C
85535-28060-A3
Cover, Power Outlet Socket, Rear
[02.2012 - 09.2013] GRJ200,URJ202 SHELL,TRIM0# |
85535-28060-A3 |
— | ||
|
85535C
|
85535C
85535-28060-E1
Cover, Power Outlet Socket, Rear
[11.2009 - 02.2012] GRJ200,UZJ200 DK. BROWN,TRIM4# |
85535-28060-E1 |
— | ||
| replacement | |||||
|
85535C
|
85535C
85535-28060-C0
Cover, Power Outlet Socket, No.1
[11.2009 - 02.2012] GRJ200,UZJ200 DK. BROWN,TRIM4# |
85535-28060-C0 |
— | ||
|
85535C
|
85535C
85535-44050-A1 Cover, Power Outlet Socket, Rear[09.2013 - 01.2016] GRJ200,URJ202 SHELL,TRIM0# |
85535-44050-A1 |
US $7.86 |
||
|
85536
|
85536
85536-60080-A1 Bezel, Power Outlet Socket[02.2012 - 01.2016] GRJ200,URJ202 SHELL,TRIM0# |
85536-60080-A1 |
US $11.07 |
||
|
85536
|
85536
85536-60080-E0
Bezel, Power Outlet Socket
[11.2009 - 02.2012] GRJ200,UZJ200 DK. BROWN,TRIM4# |
85536-60080-E0 |
— | ||
|
85539A
|
85539A
85539-48030
Label, Power Outlet Notice
[11.2009 - 02.2012] GRJ200,UZJ200 |
85539-48030 |
— | ||
|
90119C0072
|
90119C0072
90119-C0072
New Genuine Part
|
90119-C0072 |
— | ||
|
90159C0006
|
90159C0006
90159-C0006
New Genuine Part
|
90159-C0006 |
— | ||
|
9018906227
|
9018906227
90189-06227 GROMMET SCREW |
90189-06227 |
from US $0.72 |
||
|
9090148003
|
9090148003
90901-48003 Screw Hex Lobular |
90901-48003 |
US $1.76 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
