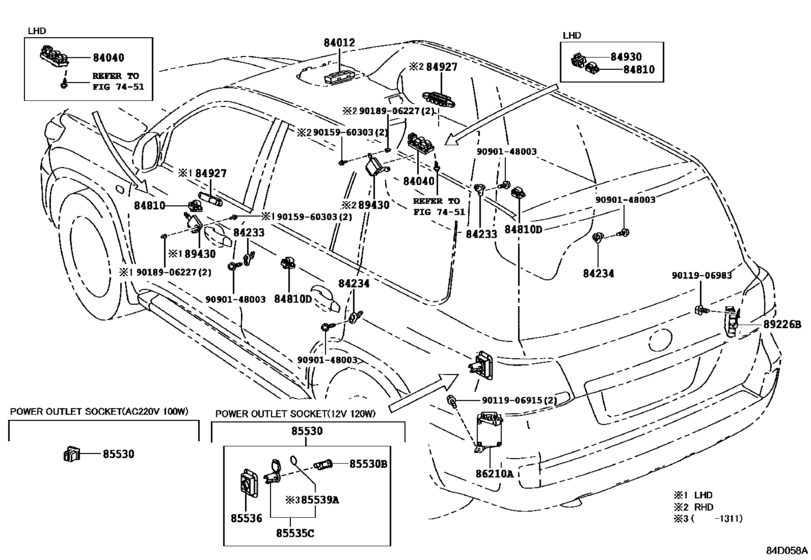

Switch & Relay & Computer ([01.2012 - 08.2015] DOOR & ROOF (1201-1508)) Diagram Toyota LAND CRUISER
- Year
- 2007 - 2018
- Sales region
- General
- Frame
- GRJ200
- grade
- GX
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- LAND CRUISER 200
- From
- 09.2007
- Gear Shift Type
- 5FC
- Seating Capacity
- 09S
- Vehicle Model
- Land Cruiser
- Model Mark
- G
- Back Door
- LUB
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84012
|
84012
84012-60390-B0 Control & Panel Sub-Assy, IntegrationINTEGRATION [09.2007 - 01.2012] UZJ200..GX..ARL;GRJ200..09S..GCC..G MOON ROOF-WITH,LT.GRAY,TRIM1#; GRJ200,UZJ200..LHD..08S..GX MOON ROOF-WITH&OVER HEAD CONSOLE-WITH(W/MOON ROOF),LT.GRAY,TRIM1#; URJ200,UZJ200,VDJ200..VX MOON ROOF-WITH(REMOTE CONTROL),LT.GRAY,TRIM1# |
84012-60390-B0 |
US $33.81 |
||
|
84012
|
84012
84012-60390-E0
Control & Panel Sub-Assy, Integration
[09.2007 - 01.2012] UZJ200..GX..ARL;GRJ200..09S..GCC..G MOON ROOF-WITH,SAND BEIGE,TRIM4#; GRJ200,UZJ200..LHD..08S..GX MOON ROOF-WITH&OVER HEAD CONSOLE-WITH(W/MOON ROOF),SAND BEIGE,TRIM4#; URJ200,UZJ200,VDJ200..VX MOON ROOF-WITH(REMOTE CONTROL),SAND BEIGE, |
84012-60390-E0 |
— | ||
|
84040
|
84040
84040-33100 Master Switch Assy,multiplex Network[09.2007 - 01.2012] GRJ200,URJ200,UZJ200,VDJ200..LHD..G |
84040-33100 |
from US $334.04 |
||
|
84040
|
84040
84040-60190
Master Switch Assy,multiplex Network
[05.2013 - 08.2014] GRJ200,URJ20#,VDJ200..LHD..(GX,VX) |
84040-60190 |
— | ||
|
84040
|
84040
84040-60220 Master Switch Assy,multiplex Network[08.2014 - 08.2015] GRJ200,URJ20#,VDJ200..LHD..(GX,VX) |
84040-60220 |
from US $173.26 |
||
|
84040
|
84040
84040-60230 Master Switch Assy,multiplex Network[08.2015 - 07.2017] GRJ200..LHD..09S;GRJ200..05S..GEN;VDJ200..09S..LUB;GRJ200..(05S,08S)..5FC |
84040-60230 |
US $162.14 |
||
|
84233
|
84233
84231-53010 Switch Assy, Courtesy Lamp (For Front Door)[09.2007 - 01.2012] GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
84231-53010 |
from US $10.56 |
||
|
84234
|
84234
84231-53010 Switch Assy, Courtesy Lamp (For Front Door)[09.2007 - 01.2012] GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
84231-53010 |
from US $10.56 |
||
|
84810
|
84810
84810-30220 Switch Assy, Power Window Regulator[08.2015 - 07.2017] GRJ200..09S;VDJ200..09S..LUB;GRJ200..(05S,08S)..5FC;GRJ200,VDJ200..05S..GEN |
84810-30220 |
from US $46.66 |
||
|
84810
|
84810
84810-33120 Switch Assy, Power Window Regulator[09.2007 - 01.2012] GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
84810-33120 |
from US $54.80 |
||
| replacement | |||||
|
84810
|
84810
84810-06090 Switch Assy, Power Window Regulator[09.2007 - 01.2012] GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
84810-06090 |
US $211.68 |
||
|
84810D
|
84810D
84810-30220 Switch Assy, Power Window Regulator[08.2015 - 07.2017] GRJ200..09S;VDJ200..09S..LUB;GRJ200..(05S,08S)..5FC;GRJ200,VDJ200..05S..GEN |
84810-30220 |
from US $46.66 |
||
|
84810D
|
84810D
84810-33120 Switch Assy, Power Window Regulator[09.2007 - 01.2012] GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
84810-33120 |
from US $54.80 |
||
| replacement | |||||
|
84810D
|
84810D
84810-06090 Switch Assy, Power Window Regulator[09.2007 - 01.2012] GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
84810-06090 |
US $211.68 |
||
|
85530
|
85530
85530-60200-A1
Socket Assy, Power Outlet, No.1
[01.2012 - 11.2013] VDJ200..RHD..GEN..LUB;GRJ200,VDJ200..09S..GX;GRJ200,VDJ200..LHD..GX..GEN SHELL,TRIM0# |
85530-60200-A1 |
— | ||
|
85530
|
85530
85530-60200-C0
Socket Assy, Power Outlet, No.1
[07.2009 - 01.2012] GRJ200,URJ200,UZJ200,VDJ200..G BLACK,TRIM1# |
85530-60200-C0 |
— | ||
|
85530
|
85530
85530-60360-A0 Socket Assy, Power Outlet, No.1[11.2013 - 08.2015] VDJ200..RHD..GEN..LUB;GRJ200,VDJ200..09S..GX;GRJ200,VDJ200..LHD..GX..GEN SHELL,TRIM0#; URJ202,VDJ200..LHD..VX..GEN ACCESSORY CONNECTOR-DC12V(FRONT & REAR & DECK SIDE),SHELL,TRIM0# |
85530-60360-A0 |
US $26.06 |
||
|
85530
|
85530
85530-60360-A2 Socket Assy, Power Outlet, No.1[08.2015 - 07.2017] GRJ200..09S..GCC;GRJ200..05S..LUB;VDJ200..09S..LUB FLAXEN,TRIM0#; GRJ200..09S..GCC..SOB STD,FLAXEN,TRIM0#; GRJ200..09S..GCC..SOB STD&WITH(COOL BOX),FLAXEN,TRIM0#; GRJ200..09S..GCC..SOB ACCESSORY CONNECTOR-WITHOUT,FLAXEN,TRIM0# |
85530-60360-A2 |
US $23.59 |
||
|
85530
|
85530
85530-60360-C0 Socket Assy, Power Outlet, No.1[11.2013 - 08.2015] VDJ200..RHD..VX..GEN BLACK,TRIM1#,2#; GRJ200,VDJ200..09S..GX;GRJ200,VDJ200..GX..GEN BLACK,TRIM1#; URJ202,VDJ200..LHD..VX..GEN ACCESSORY CONNECTOR-DC12V(FRONT & REAR & DECK SIDE),BLACK,TRIM1#,2# |
85530-60360-C0 |
US $23.59 |
||
|
85530B
|
85530B
85530-42010 Socket Assy, Power Outlet, No.1[07.2009 - 01.2012] GRJ200,URJ200,UZJ200,VDJ200..G |
85530-42010 |
from US $26.60 |
||
|
85535C
|
85535C
85535-35080-A2 Cover, Power Outlet Socket, Rear[01.2012 - 11.2013] VDJ200..RHD..GEN..LUB;GRJ200,VDJ200..09S..GX;GRJ200,VDJ200..LHD..GX..GEN SHELL,TRIM0# |
85535-35080-A2 |
US $5.10 |
||
|
85535C
|
85535C
85535-35080-C0 Cover, Power Outlet Socket, No.1POWER OUTLET SOCKET, REAR [07.2009 - 01.2012] GRJ200,URJ200,UZJ200,VDJ200..G BLACK,TRIM1# |
85535-35080-C0 |
US $6.88 |
||
|
85535C
|
85535C
85535-44050-A1 Cover, Power Outlet Socket, Rear[11.2013 - 08.2015] VDJ200..RHD..GEN..LUB;GRJ200,VDJ200..09S..GX;GRJ200,VDJ200..LHD..GX..GEN SHELL,TRIM0#; URJ202,VDJ200..LHD..VX..GEN ACCESSORY CONNECTOR-DC12V(FRONT & REAR & DECK SIDE),SHELL,TRIM0# |
85535-44050-A1 |
US $7.86 |
||
|
85535C
|
85535C
85535-44050-A3 Cover, Power Outlet Socket, Rear[08.2015 - 07.2017] GRJ200..09S..GCC;GRJ200..05S..LUB;VDJ200..09S..LUB FLAXEN,TRIM0#; GRJ200..09S..GCC..SOB STD,FLAXEN,TRIM0#; GRJ200..09S..GCC..SOB STD&WITH(COOL BOX),FLAXEN,TRIM0#; GRJ200..09S..GCC..SOB ACCESSORY CONNECTOR-WITHOUT,FLAXEN,TRIM0# |
85535-44050-A3 |
US $7.13 |
||
|
85535C
|
85535C
85535-44050-C0 Cover, Power Outlet Socket, No.1 (Black)[11.2013 - 08.2015] VDJ200..RHD..VX..GEN BLACK,TRIM1#,2#; GRJ200,VDJ200..09S..GX;GRJ200,VDJ200..GX..GEN BLACK,TRIM1#; URJ202,VDJ200..LHD..VX..GEN ACCESSORY CONNECTOR-DC12V(FRONT & REAR & DECK SIDE),BLACK,TRIM1#,2# |
85535-44050-C0 |
US $8.39 |
||
|
85536
|
85536
85536-60080-A1 Bezel, Power Outlet Socket[01.2012 - 08.2015] VDJ200..RHD..GEN..LUB;GRJ200,VDJ200..09S..GX;GRJ200,VDJ200..LHD..GX..GEN SHELL,TRIM0# |
85536-60080-A1 |
US $11.07 |
||
|
85536
|
85536
85536-60080-A3 Bezel, Power Outlet Socket[08.2015 - 07.2017] GRJ200..09S..GCC;GRJ200..05S..LUB;VDJ200..09S..LUB FLAXEN,TRIM0#; GRJ200..09S..GCC..SOB STD,FLAXEN,TRIM0#; GRJ200..09S..GCC..SOB STD&WITH(COOL BOX),FLAXEN,TRIM0#; GRJ200..09S..GCC..SOB ACCESSORY CONNECTOR-WITHOUT,FLAXEN,TRIM0# |
85536-60080-A3 |
US $10.05 |
||
|
85536
|
85536
85536-60080-C0
Bezel, Power Outlet Socket
[07.2009 - 01.2012] GRJ200,URJ200,UZJ200,VDJ200..G BLACK,TRIM1# |
85536-60080-C0 |
— | ||
|
85539A
|
85539A
85539-60020 Label, Power Outlet Notice[07.2009 - 01.2012] GRJ200,URJ200,UZJ200,VDJ200..G |
85539-60020 |
US $1.41 |
||
|
9011906915
|
9011906915
90119-06915 BOLT W-WASHER |
90119-06915 |
from US $0.70 |
||
|
9011906983
|
9011906983
90119-06983 New Genuine Part |
90119-06983 |
US $0.96 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
from US $1.12 |
||
|
9018906227
|
9018906227
90189-06227 GROMMET SCREW |
90189-06227 |
from US $0.72 |
||
|
9090148003
|
9090148003
90901-48003 Screw Hex Lobular |
90901-48003 |
US $1.76 |
||
