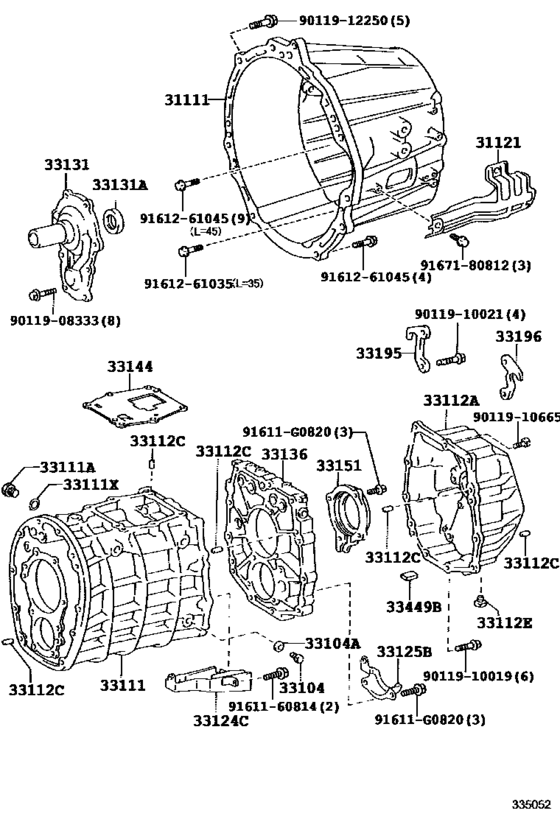

Clutch Housing & Transmission Case (Mtm) ([08.2014 - ] H150 (1408- )) Diagram Toyota LAND CRUISER
- Year
- 2014 - 2015
- Sales region
- Japan
- Frame
- GRJ76
- grade
- LX
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 08.2014
- To
- 07.2015
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Vehicle Model
- Land Cruiser
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31111
|
31111
31111-60400 Housing, ClutchCLUTCH [08.2014 - 07.2015] GRJ7# |
31111-60400 |
US $464.46 |
||
|
31121
|
31121
31101-60030 Cover, Clutch Housing, No.1CLUTCH HOUSING, NO.1 [08.2014 - 07.2015] GRJ7# |
31101-60030 |
US $30.14 |
||
|
33104
|
33104
90341-18006 Plug (No magnet)[08.2014 - 07.2015] GRJ7# |
90341-18006 |
from US $3.23 |
||
|
33104A
|
33104A
90430-18008 Gasket[08.2014 - 07.2015] GRJ7# |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
33104A
|
33104A
90430-T0021 Gasket(For Manual Transmission Filler Plug)[08.2014 - 07.2015] GRJ7# |
90430-T0021 |
US $1.01 |
||
|
33111
|
33111
33111-60300 Case, Manual TransmissionMANUAL TRANSMISSION [08.2014 - 07.2015] GRJ7# |
33111-60300 |
US $394.58 |
||
|
33111A
|
33111A
90341-18006 Plug (No magnet)[08.2014 - 07.2015] GRJ7# |
90341-18006 |
from US $3.23 |
||
|
33111X
|
33111X
90430-18008 Gasket[08.2014 - 07.2015] GRJ7# |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
33111X
|
33111X
90430-T0021 Gasket(For Manual Transmission Filler Plug)[08.2014 - 07.2015] GRJ7# |
90430-T0021 |
US $1.01 |
||
|
33112A
|
33112A
36117-60170 Adapter, Transfer[08.2014 - 07.2015] GRJ7# |
36117-60170 |
US $313.04 |
||
|
33112C
|
33112C
90250-10025 Pin, Straight(For Transfer Adapter)[08.2014 - 07.2015] GRJ7# 長さ＝１０、外径＝１０ |
90250-10025 |
US $0.96 |
||
|
33112C
|
33112C
90250-12002 Pin, Straight(For Manual Transmission Case)[08.2014 - 07.2015] GRJ7# 長さ＝１６、外径＝１２ |
90250-12002 |
from US $1.27 |
||
|
33112E
|
33112E
90341-12008 Plug, W/head Straight Screw(For Transfer Adapter)[08.2014 - 07.2015] GRJ7# |
90341-12008 |
from US $3.33 |
||
|
33124C
|
33124C
33124-60020
Pipe, Oil Receiver, No.1(Mtm)
[08.2014 - 07.2015] GRJ7# |
33124-60020 |
— | ||
| replacement | |||||
|
33124C
|
33124C
33124-60070 Pipe, Oil Receiver, No.1(Mtm)[08.2014 - 07.2015] GRJ7# |
33124-60070 |
US $15.72 |
||
|
33125B
|
33125B
33125-60010 Receiver, Manual Transmission Case[08.2014 - 07.2015] GRJ7# |
33125-60010 |
from US $7.13 |
||
|
33131
|
33131
33131-60100 Retainer, Bearing, Front(Mtm)BEARING, FRONT(MTM) [08.2014 - 07.2015] GRJ7# |
33131-60100 |
from US $97.55 |
||
|
33131A
|
33131A
90311-35023 Seal, Oil(For Transmission Front Bearing Retainer)[08.2014 - 07.2015] GRJ7# |
90311-35023 |
from US $4.30 |
||
|
33136
|
33136
33136-60021 Plate, Transmission Intermediate[08.2014 - 07.2015] GRJ7# |
33136-60021 |
US $167.44 |
||
|
33144
|
33144
33144-60070 Deflector, Extension Housing Oil(Mtm)EXTENSION HOUSING OIL(MTM) [08.2014 - 07.2015] GRJ7# |
33144-60070 |
US $5.40 |
||
|
33151
|
33151
33151-60030 Retainer, Output Shaft Rear Bearing(Mtm)[08.2014 - 07.2015] GRJ7# |
33151-60030 |
US $24.98 |
||
|
33195
|
33195
33195-60012 Hanger, Transmission Case, No.1[08.2014 - 07.2015] GRJ7# |
33195-60012 |
US $6.26 |
||
|
33196
|
33196
33196-60010 Hanger, Transmission Case, No.2[08.2014 - 07.2015] GRJ7# |
33196-60010 |
US $5.10 |
||
|
33449B
|
33449B
33449-35010 Magnet, Transmission[08.2014 - 07.2015] GRJ7# |
33449-35010 |
US $6.29 |
||
|
91611G0820
|
91611G0820
91611-G0820 Bolt |
91611-G0820 |
from US $1.21 |
||
|
9011908333
|
9011908333
90119-08333 BOLT |
90119-08333 |
US $2.15 |
||
|
9011910019
|
9011910019
90119-10019 Bolt(For Transmission Case & Engine Setting) |
90119-10019 |
US $5.02 |
||
|
9011910021
|
9011910021
90119-10021 Bolt, Hexagon(For Idler Arm Support Setting) |
90119-10021 |
US $5.24 |
||
|
9011910665
|
9011910665
90119-10665 BOLT WWASHER |
90119-10665 |
US $2.04 |
||
|
9011912250
|
9011912250
90119-12250 Bolt(For Transaxle & Engine Setting) |
90119-12250 |
from US $1.60 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9161261035
|
9161261035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.13 |
||
|
9161261045
|
9161261045
91612-61045 Bolt(For Transaxle & Engine Setting) |
91612-61045 |
from US $1.15 |
||
|
9167180812
|
9167180812
91671-80812 BOLT FLANGE |
91671-80812 |
US $1.43 |
||
