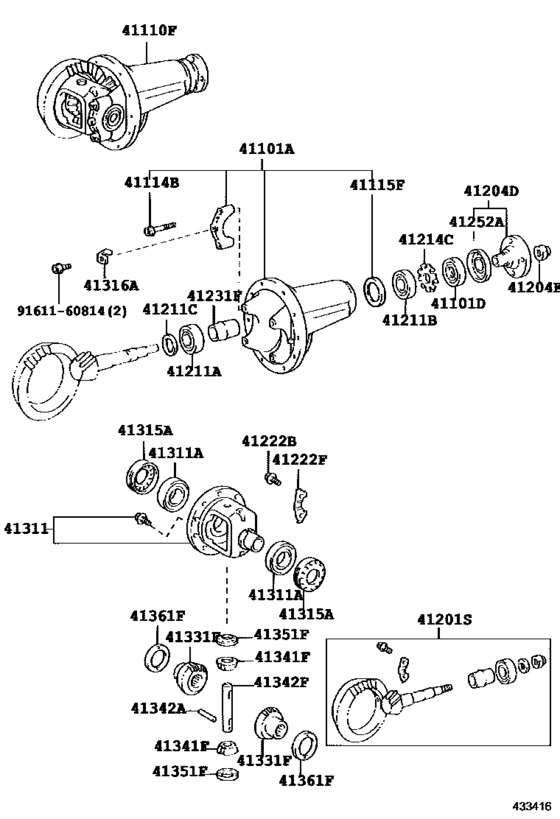

Front Axle Housing & Differential ([08.2014 - ] (1408- )) Diagram Toyota LAND CRUISER
- Year
- 2014 - 2015
- Sales region
- Japan
- Frame
- GRJ76
- grade
- LX
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 08.2014
- To
- 07.2015
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Vehicle Model
- Land Cruiser
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41101A
|
41101A
41101-60090
Carrier Sub-Assy, Differential, Front
[08.2014 - 07.2015] GRJ7# |
41101-60090 |
— | ||
| replacement | |||||
|
41101A
|
41101A
41101-60091 Carrier Sub-Assy, Differential, Front[08.2014 - 07.2015] GRJ7# |
41101-60091 |
from US $457.12 |
||
|
41101D
|
41101D
90311-41009 Seal, Oil (For Front Differential Carrier)[08.2014 - 07.2015] GRJ7# |
90311-41009 |
from US $10.93 |
||
|
41110F
|
41110F
41110-60280 Carrier Assy, Differential, Front[08.2014 - 07.2015] GRJ76 ＊ＦＧＲ＝４１：１０＝４．１００ |
41110-60280 |
US $1,659.84 |
||
| replacement | |||||
|
41110F
|
41110F
41110-60281
Carrier Assy, Differential, Front
[08.2014 - 07.2015] GRJ76 ＊ＦＧＲ＝４１：１０＝４．１００ |
41110-60281 |
— | ||
|
41110F
|
41110F
41110-6A301 Carrier Assy, Differential, Front[08.2014 - 07.2015] GRJ76 SＰ，デフロック |
41110-6A301 |
US $1,732.64 |
||
| replacement | |||||
|
41110F
|
41110F
41110-6A302 Carrier Assy, Differential, Front[08.2014 - 07.2015] GRJ76 SＰ，デフロック |
41110-6A302 |
US $1,572.48 |
||
|
41114B
|
41114B
90105-12053 Bolt (For Rear Differential Carrier)[08.2014 - 07.2015] GRJ7# |
90105-12053 |
from US $1.46 |
||
|
41115F
|
41115F
41115-35010 Ring, Differential Oil Storage[08.2014 - 07.2015] GRJ7# |
41115-35010 |
from US $3.08 |
||
|
41201S
|
41201S
41201-69805 Final Gear Kit, Differential, Front[08.2014 - 07.2015] GRJ76 ＊ＦＧＲ＝４１：１０＝４．１００ |
41201-69805 |
from US $752.13 |
||
|
41201S
|
41201S
41201-80472 Final Gear Kit, Differential, Front[08.2014 - 07.2015] GRJ76 SＰ，デフロック |
41201-80472 |
from US $599.44 |
||
|
41204D
|
41204D
41204-35082 Flange Sub-Assy, Rear Drive Pinion Companion, Rear[08.2014 - 07.2015] GRJ7# |
41204-35082 |
from US $75.25 |
||
|
41204E
|
41204E
90177-22003 Nut (For Rear Drive Pinion)[08.2014 - 07.2015] GRJ7# |
90177-22003 |
from US $2.30 |
||
|
41211A
|
41211A
90366-35087 Bearing , Tapered Roller (for front drive pinion)[08.2014 - 07.2015] GRJ7# |
90366-35087 |
from US $58.80 |
||
|
41211B
|
41211B
90366-30105 Bearing (For Rear Drive Pinion Front)[08.2014 - 07.2015] GRJ7# |
90366-30105 |
from US $46.41 |
||
|
41211C
|
41211C
90201-35497 Washer, Plate (For Rear Differential Drive Pinion)[08.2014 - 07.2015] GRJ7# 厚さ＝１．７０ |
90201-35497 |
from US $2.83 |
||
|
41211C
|
41211C
90201-35498 Washer, Plate (For Rear Differential Drive Pinion)[08.2014 - 07.2015] GRJ7# 厚さ＝１．７３ |
90201-35498 |
from US $2.81 |
||
|
41211C
|
41211C
90201-35499 Washer, Plate (For Rear Differential Drive Pinion)[08.2014 - 07.2015] GRJ7# 厚さ＝１．７６ |
90201-35499 |
from US $2.79 |
||
|
41211C
|
41211C
90201-35500 Washer, Plate (For Rear Differential Drive Pinion)[08.2014 - 07.2015] GRJ7# 厚さ＝１．７９ |
90201-35500 |
from US $2.81 |
||
|
41211C
|
41211C
90201-35501 Washer, Plate (For Rear Differential Drive Pinion)[08.2014 - 07.2015] GRJ7# 厚さ＝１．８２ |
90201-35501 |
from US $2.81 |
||
|
41211C
|
41211C
90201-35502 Washer, Plate (For Rear Differential Drive Pinion)[08.2014 - 07.2015] GRJ7# 厚さ＝１．８５ |
90201-35502 |
from US $3.10 |
||
|
41211C
|
41211C
90201-35503 Washer, Plate (For Rear Differential Drive Pinion)[08.2014 - 07.2015] GRJ7# 厚さ＝１．８８ |
90201-35503 |
from US $2.93 |
||
|
41211C
|
41211C
90201-35504 Washer, Plate (For Rear Differential Drive Pinion)[08.2014 - 07.2015] GRJ7# 厚さ＝１．９１ |
90201-35504 |
US $3.23 |
||
|
41211C
|
41211C
90201-35505 Washer, Plate (For Rear Differential Drive Pinion)[08.2014 - 07.2015] GRJ7# 厚さ＝１．９４ |
90201-35505 |
US $3.23 |
||
|
41211C
|
41211C
90201-35506 Washer, Plate (For Rear Differential Drive Pinion)[08.2014 - 07.2015] GRJ7# 厚さ＝１．９７ |
90201-35506 |
US $3.23 |
||
|
41211C
|
41211C
90201-35507 Washer, Plate (For Rear Differential Drive Pinion)[08.2014 - 07.2015] GRJ7# 厚さ＝２．００ |
90201-35507 |
from US $2.89 |
||
|
41211C
|
41211C
90201-35508 Washer, Plate (For Rear Differential Drive Pinion)[08.2014 - 07.2015] GRJ7# 厚さ＝２．０３ |
90201-35508 |
from US $2.93 |
||
|
41211C
|
41211C
90201-35509 Washer, Plate (For Rear Differential Drive Pinion)[08.2014 - 07.2015] GRJ7# 厚さ＝２．０６ |
90201-35509 |
from US $2.91 |
||
|
41211C
|
41211C
90201-35510 Washer, Plate (For Rear Differential Drive Pinion)[08.2014 - 07.2015] GRJ7# 厚さ＝２．０９ |
90201-35510 |
from US $3.23 |
||
|
41211C
|
41211C
90201-35511 Washer, Plate (For Rear Differential Drive Pinion)[08.2014 - 07.2015] GRJ7# 厚さ＝２．１２ |
90201-35511 |
from US $2.91 |
||
|
41211C
|
41211C
90201-35512 Washer, Plate (For Rear Differential Drive Pinion)[08.2014 - 07.2015] GRJ7# 厚さ＝２．１５ |
90201-35512 |
from US $2.93 |
||
|
41211C
|
41211C
90201-35513 Washer, Plate (For Rear Differential Drive Pinion)[08.2014 - 07.2015] GRJ7# 厚さ＝２．１８ |
90201-35513 |
from US $2.83 |
||
|
41211C
|
41211C
90201-35514 Washer, Plate (For Rear Differential Drive Pinion)[08.2014 - 07.2015] GRJ7# 厚さ＝２．２１ |
90201-35514 |
from US $3.23 |
||
|
41211C
|
41211C
90201-35515 Washer, Plate (For Rear Differential Drive Pinion)[08.2014 - 07.2015] GRJ7# 厚さ＝２．２４，マーク ０１ |
90201-35515 |
US $2.15 |
||
|
41211C
|
41211C
90201-35516 Washer, Plate (For Rear Differential Drive Pinion)[08.2014 - 07.2015] GRJ7# 厚さ＝２．２７，マーク ０２ |
90201-35516 |
from US $2.15 |
||
|
41211C
|
41211C
90201-35517 Washer, Plate (For Rear Differential Drive Pinion)[08.2014 - 07.2015] GRJ7# 厚さ＝２．３０，マーク ０３ |
90201-35517 |
from US $2.15 |
||
|
41211C
|
41211C
90201-35518 Washer, Plate (For Rear Differential Drive Pinion)[08.2014 - 07.2015] GRJ7# 厚さ＝２．３３，マーク ０４ |
90201-35518 |
from US $2.15 |
||
|
41214C
|
41214C
41214-60011 Slinger, Front Differential Drive Pinion Oil[08.2014 - 07.2015] GRJ7# |
41214-60011 |
from US $4.06 |
||
|
41222B
|
41222B
90101-11353 Bolt (For Rear Differential Ring Gear Set)[08.2014 - 07.2015] GRJ7# |
90101-11353 |
from US $0.90 |
||
|
41222F
|
41222F
41222-35020 Plate, Rear Differential Ring Gear Set Bolt Lock[08.2014 - 07.2015] GRJ7# |
41222-35020 |
from US $2.73 |
||
|
41222F
|
41222F
41222-60010 Plate, Rear Differential Ring Gear Set Bolt Lock[08.2014 - 07.2015] GRJ76 リヤディファレンシャル−最終減速比＝４．１００，４Ｐ，デフロック; GRJ79 リヤディファレンシャル−最終減速比＝４．３００，４Ｐ，デフロック |
41222-60010 |
from US $2.20 |
||
|
41231F
|
41231F
41231-24010 Spacer, Rear Differential Drive Pinion Bearing[08.2014 - 07.2015] GRJ7# |
41231-24010 |
from US $11.47 |
||
|
41252A
|
41252A
41252-35041 Deflector, Dust (For Rear Differential)[08.2014 - 07.2015] GRJ7# |
41252-35041 |
from US $7.35 |
||
|
41311
|
41311
41301-60060
Case Sub-Assy, Rear Differential
[08.2014 - 07.2015] GRJ76 リヤディファレンシャル−最終減速比＝４．１００，４Ｐ，デフロック; GRJ79 リヤディファレンシャル−最終減速比＝４．３００，４Ｐ，デフロック |
41301-60060 |
— | ||
| replacement | |||||
|
41311
|
41311
41301-60061 CASE SUBASSY[08.2014 - 07.2015] GRJ76 リヤディファレンシャル−最終減速比＝４．１００，４Ｐ，デフロック; GRJ79 リヤディファレンシャル−最終減速比＝４．３００，４Ｐ，デフロック |
41301-60061 |
from US $389.63 |
||
|
41311
|
41311
41311-60060
Case Sub-Assy, Rear Differential
[08.2014 - 07.2015] GRJ7# |
41311-60060 |
— | ||
| replacements | |||||
|
41311
|
41311
41311-60061 CASE DIFFERENTIAL[08.2014 - 07.2015] GRJ7# |
41311-60061 |
US $256.84 |
||
|
41311
|
41311
90105-11063 Bolt (For Rear Differential Ring Gear Set)[08.2014 - 07.2015] GRJ7# |
90105-11063 |
US $1.79 |
||
|
41311A
|
41311A
90366-50007 Bearing(For Rear Differential Case)[08.2014 - 07.2015] GRJ76 リヤディファレンシャル−最終減速比＝４．１００，４Ｐ，デフロック,左側; GRJ79 リヤディファレンシャル−最終減速比＝４．３００，４Ｐ，デフロック,左側 |
90366-50007 |
from US $44.40 |
||
|
41311A
|
41311A
90366-75001 Bearing(For Rear Differential Case)[08.2014 - 07.2015] GRJ76 リヤディファレンシャル−最終減速比＝４．１００，４Ｐ，デフロック,右側; GRJ79 リヤディファレンシャル−最終減速比＝４．３００，４Ｐ，デフロック,右側 |
90366-75001 |
from US $28.04 |
||
|
41315A
|
41315A
41315-35020 Nut, Rear Differential Bearing Adjusting[08.2014 - 07.2015] GRJ76 リヤディファレンシャル−最終減速比＝４．１００，４Ｐ，デフロック,右側; GRJ79 リヤディファレンシャル−最終減速比＝４．３００，４Ｐ，デフロック,右側 |
41315-35020 |
from US $6.63 |
||
|
41315A
|
41315A
41315-60010 Nut, Rear Differential Bearing Adjusting[08.2014 - 07.2015] GRJ76 リヤディファレンシャル−最終減速比＝４．１００，４Ｐ，デフロック,左側; GRJ79 リヤディファレンシャル−最終減速比＝４．３００，４Ｐ，デフロック,左側 |
41315-60010 |
from US $17.67 |
||
|
41316A
|
41316A
41316-35010 Lock, Rear Differential Bearing Adjusting Nut[08.2014 - 07.2015] GRJ7# |
41316-35010 |
US $1.61 |
||
|
41331F
|
41331F
41331-35011 Gear, Rear Differential Side[08.2014 - 07.2015] GRJ7# |
41331-35011 |
from US $60.98 |
||
|
41341F
|
41341F
41341-35020 Pinion, Rear Differential[08.2014 - 07.2015] GRJ7# |
41341-35020 |
from US $28.39 |
||
|
41342A
|
41342A
90250-06085 Pin, Straight (For Front Differential Pinion Shaft)[08.2014 - 07.2015] GRJ7# |
90250-06085 |
from US $0.99 |
||
|
41342F
|
41342F
41342-39610 Shaft, Rear Differential Pinion[08.2014 - 07.2015] GRJ7# |
41342-39610 |
from US $14.18 |
||
|
41351F
|
41351F
41351-30052 Washer, Rear Differential Pinion Thrust[08.2014 - 07.2015] GRJ7# |
41351-30052 |
from US $1.48 |
||
|
41351F
|
41351F
41351-30060 Washer, Rear Differential Pinion Thrust[08.2014 - 07.2015] GRJ76 リヤディファレンシャル−最終減速比＝４．１００，４Ｐ，デフロック; GRJ79 リヤディファレンシャル−最終減速比＝４．３００，４Ｐ，デフロック |
41351-30060 |
from US $2.32 |
||
|
41361F
|
41361F
41361-35310 Washer, Rear Differential Side Gear Thrust, No.1[08.2014 - 07.2015] GRJ76 厚さ＝０．９,リヤディファレンシャル−最終減速比＝４．１００，４Ｐ，デフロック,右側 ，内径＝４６; GRJ79 厚さ＝０．９,リヤディファレンシャル−最終減速比＝４．３００，４Ｐ，デフロック,右側 ，内径＝４６ |
41361-35310 |
from US $3.32 |
||
|
41361F
|
41361F
41361-35320 Washer, Rear Differential Side Gear Thrust, No.1[08.2014 - 07.2015] GRJ76 厚さ＝１．０,リヤディファレンシャル−最終減速比＝４．１００，４Ｐ，デフロック,右側 ，内径＝４６; GRJ79 厚さ＝１．０,リヤディファレンシャル−最終減速比＝４．３００，４Ｐ，デフロック,右側 ，内径＝４６ |
41361-35320 |
US $3.32 |
||
|
41361F
|
41361F
41361-35330 Washer, Rear Differential Side Gear Thrust, No.1[08.2014 - 07.2015] GRJ76 厚さ＝１．１,リヤディファレンシャル−最終減速比＝４．１００，４Ｐ，デフロック,右側 ，内径＝４６; GRJ79 厚さ＝１．１,リヤディファレンシャル−最終減速比＝４．３００，４Ｐ，デフロック,右側 ，内径＝４６ |
41361-35330 |
from US $3.49 |
||
|
41361F
|
41361F
41361-35340 Washer, Rear Differential Side Gear Thrust, No.1[08.2014 - 07.2015] GRJ76 厚さ＝１．２,リヤディファレンシャル−最終減速比＝４．１００，４Ｐ，デフロック,右側 ，内径＝４６; GRJ79 厚さ＝１．２,リヤディファレンシャル−最終減速比＝４．３００，４Ｐ，デフロック,右側 ，内径＝４６ |
41361-35340 |
US $4.02 |
||
|
41361F
|
41361F
41361-35350 Washer, Rear Differential Side Gear Thrust, No.1[08.2014 - 07.2015] GRJ76 厚さ＝１．３,リヤディファレンシャル−最終減速比＝４．１００，４Ｐ，デフロック,右側 ，内径＝４６; GRJ79 厚さ＝１．３,リヤディファレンシャル−最終減速比＝４．３００，４Ｐ，デフロック,右側 ，内径＝４６ |
41361-35350 |
US $4.72 |
||
|
41361F
|
41361F
41361-40021 Washer, Rear Differential Side Gear Thrust, No.1[08.2014 - 07.2015] GRJ7# 厚さ＝１．６ |
41361-40021 |
from US $6.81 |
||
|
41361F
|
41361F
41361-60290 Washer, Rear Differential Side Gear Thrust, No.1[08.2014 - 07.2015] GRJ76 厚さ＝０．９０,リヤディファレンシャル−最終減速比＝４．１００，４Ｐ，デフロック,右 側＆左側，内径＝５４; GRJ79 厚さ＝０．９０,リヤディファレンシャル−最終減速比＝４．３００，４Ｐ，デフロック,右 側＆左側，内径＝５４ |
41361-60290 |
US $3.30 |
||
|
41361F
|
41361F
41361-60300 Washer, Rear Differential Side Gear Thrust, No.1[08.2014 - 07.2015] GRJ76 厚さ＝１．００,リヤディファレンシャル−最終減速比＝４．１００，４Ｐ，デフロック,右 側＆左側，内径＝５４; GRJ79 厚さ＝１．００,リヤディファレンシャル−最終減速比＝４．３００，４Ｐ，デフロック,右 側＆左側，内径＝５４ |
41361-60300 |
from US $4.66 |
||
|
41361F
|
41361F
41361-60310 Washer, Rear Differential Side Gear Thrust, No.1[08.2014 - 07.2015] GRJ76 厚さ＝１．１０,リヤディファレンシャル−最終減速比＝４．１００，４Ｐ，デフロック,右 側＆左側，内径＝５４; GRJ79 厚さ＝１．１０,リヤディファレンシャル−最終減速比＝４．３００，４Ｐ，デフロック,右 側＆左側，内径＝５４ |
41361-60310 |
from US $3.30 |
||
|
41361F
|
41361F
41361-60320 Washer, Rear Differential Side Gear Thrust, No.1[08.2014 - 07.2015] GRJ76 厚さ＝１．２０,リヤディファレンシャル−最終減速比＝４．１００，４Ｐ，デフロック,右 側＆左側，内径＝５４; GRJ79 厚さ＝１．２０,リヤディファレンシャル−最終減速比＝４．３００，４Ｐ，デフロック,右 側＆左側，内径＝５４ |
41361-60320 |
from US $5.25 |
||
|
41361F
|
41361F
41361-60330 Washer, Rear Differential Side Gear Thrust, No.1[08.2014 - 07.2015] GRJ76 厚さ＝１．３０,リヤディファレンシャル−最終減速比＝４．１００，４Ｐ，デフロック,右 側＆左側，内径＝５４; GRJ79 厚さ＝１．３０,リヤディファレンシャル−最終減速比＝４．３００，４Ｐ，デフロック,右 側＆左側，内径＝５４ |
41361-60330 |
from US $3.99 |
||
|
41361F
|
41361F
41362-40021 Washer, Rear Differential Side Gear Thrust, No.1[08.2014 - 07.2015] GRJ7# 厚さ＝１．７ |
41362-40021 |
US $6.81 |
||
|
41361F
|
41361F
41363-40021 Washer, Rear Differential Side Gear Thrust, No.1[08.2014 - 07.2015] GRJ7# 厚さ＝１．８ |
41363-40021 |
from US $6.81 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
