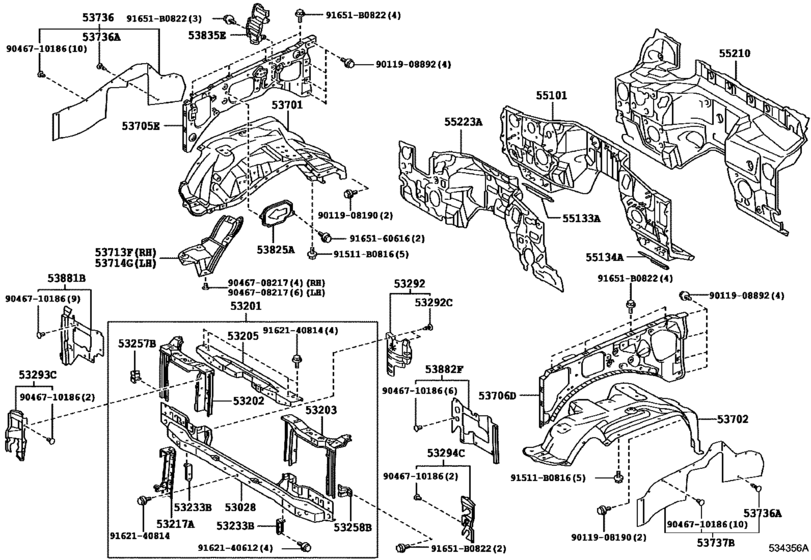

Front Fender Apron & Dash Panel ([08.2014 - ] (1408- )) Diagram Toyota LAND CRUISER
- Year
- 2014 - 2015
- Sales region
- Japan
- Frame
- GRJ76
- grade
- LX
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 08.2014
- To
- 07.2015
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Vehicle Model
- Land Cruiser
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53028
|
53028
53028-60030
Support Sub-Assy, Radiator, Lower
[08.2014 - 07.2015] GRJ7# |
53028-60030 |
— | ||
| replacement | |||||
|
53028
|
53028
53028-60070 Support Sub-Assy, Radiator, Lower[08.2014 - 07.2015] GRJ7# |
53028-60070 |
US $269.16 |
||
|
53201
|
53201
53210-60530
Support Sub-Assy, Radiator
[08.2014 - 07.2015] GRJ7# |
53210-60530 |
— | ||
| replacement | |||||
|
53201
|
53201
53210-60520 Support Sub-Assy, Radiator[08.2014 - 07.2015] GRJ7# |
53210-60520 |
from US $507.47 |
||
|
53202
|
53202
53202-60240 Support Sub-Assy, Radiator, RhRADIATOR, RH [08.2014 - 07.2015] GRJ7# |
53202-60240 |
US $90.27 |
||
|
53203
|
53203
53203-60250 Support Sub-Assy, Radiator, LhRADIATOR, LH [08.2014 - 07.2015] GRJ7# |
53203-60250 |
from US $90.29 |
||
|
53205
|
53205
53205-60050 Support Sub-Assy, Radiator, UpperRADIATOR, UPPER [08.2014 - 07.2015] GRJ7# |
53205-60050 |
from US $57.74 |
||
|
53217A
|
53217A
53209-60100 Brace, Hood Lock SupportHOOD LOCK SUPPORT [08.2014 - 07.2015] GRJ7# |
53209-60100 |
from US $18.07 |
||
|
53233B
|
53233B
53233-60010 Bracket, Headlamp, Inner RhHEADLAMP, INNER RH [08.2014 - 07.2015] GRJ7# |
53233-60010 |
US $5.07 |
||
|
53257B
|
53257B
53257-60040 Bracket, Radiator Support To Front FenderRADIATOR SUPPORT TO FRONT FENDER [08.2014 - 07.2015] GRJ7# |
53257-60040 |
US $6.70 |
||
|
53258B
|
53258B
53258-60020 Bracket, Radiator Support To Front Fender, LhRADIATOR SUPPORT TO FRONT FENDER, LH [08.2014 - 07.2015] GRJ7# |
53258-60020 |
US $7.16 |
||
|
53292
|
53292
53292-60010 Seal, Radiator Support To Frame, LhRADIATOR SUPPORT TO FRAME, LH [08.2014 - 07.2015] GRJ7# |
53292-60010 |
US $14.27 |
||
|
53292C
|
53292C
90467-08186-C0 Clip(For Front Bumper), No.1[08.2014 - 07.2015] GRJ7# BLACK |
90467-08186-C0 |
from US $0.90 |
||
|
53293C
|
53293C
53293-60060 Deflector, Radiator Side, RhRADIATOR SIDE, RH [08.2014 - 07.2015] GRJ7# |
53293-60060 |
US $14.15 |
||
|
53294C
|
53294C
53294-60070 Deflector, Radiator Side, LhRADIATOR SIDE, LH [08.2014 - 07.2015] GRJ7# |
53294-60070 |
US $13.10 |
||
|
53701
|
53701
53701-60D31 Apron Sub-Assy, Front Fender, Rh[08.2014 - 07.2015] GRJ7# |
53701-60D31 |
US $302.85 |
||
| replacements | |||||
|
53701
|
53701
53701-60D32 Apron Sub-Assy, Front Fender, Rh[08.2014 - 07.2015] GRJ7# |
53701-60D32 |
US $302.85 |
||
|
53701
|
53701
53736-60270 Seal, Front Fender Apron, Rh[08.2014 - 07.2015] GRJ7# |
53736-60270 |
from US $55.04 |
||
|
53702
|
53702
53702-60A80 Apron Sub-Assy, Front Fender, Lh[08.2014 - 07.2015] GRJ7# |
53702-60A80 |
US $247.52 |
||
|
53705E
|
53705E
53705-60050 Member Sub-Assy, Front Apron To Cowl Side, Rh[08.2014 - 07.2015] GRJ7# |
53705-60050 |
from US $108.33 |
||
|
53706D
|
53706D
53706-60040 Member Sub-Assy, Front Apron To Cowl Side, Lh[08.2014 - 07.2015] GRJ7# |
53706-60040 |
from US $108.33 |
||
|
53713F
|
53713F
53713-60070 Plate, Fender Apron Splash, RhFENDER APRON SPLASH, RH [08.2014 - 07.2015] GRJ7# |
53713-60070 |
from US $22.89 |
||
|
53714G
|
53714G
53714-60020 Plate, Fender Apron Splash, LhFENDER APRON SPLASH, LH [08.2014 - 07.2015] GRJ7# |
53714-60020 |
from US $22.89 |
||
|
53736
|
53736
53736-60210
Seal, Front Fender Apron, Rh
[08.2014 - 07.2015] GRJ7# |
53736-60210 |
— | ||
| replacement | |||||
|
53736
|
53736
53736-60270 Seal, Front Fender Apron, Rh[08.2014 - 07.2015] GRJ7# |
53736-60270 |
from US $55.04 |
||
|
53736A
|
53736A
90467-08154-22 Clip(For Front Fender Apron Seal)[08.2014 - 07.2015] GRJ7# BLACK |
90467-08154-22 |
from US $1.07 |
||
|
53737B
|
53737B
53737-60140 Seal, Front Fender Apron, Lh[08.2014 - 07.2015] GRJ7# |
53737-60140 |
from US $47.35 |
||
|
53825A
|
53825A
53825-60040 Protector, Front Fender, Upper RhFRONT FENDER, UPPER RH [08.2014 - 07.2015] GRJ7# |
53825-60040 |
US $15.03 |
||
|
53835E
|
53835E
53835-60070 Brace, Front Fender To Apron, Rh[08.2014 - 07.2015] GRJ7# |
53835-60070 |
US $17.30 |
||
|
53881B
|
53881B
53881-60020 Seal, Cooling Fan Air Duct, No.1COOLING FAN AIR DUCT, NO.1 [08.2014 - 07.2015] GRJ7# |
53881-60020 |
from US $24.29 |
||
|
53882F
|
53882F
53882-60060 Seal, Front FenderFRONT FENDER [08.2014 - 07.2015] GRJ7# |
53882-60060 |
from US $17.82 |
||
|
55101
|
55101
55101-60G80 Panel Sub-Assy, Dash[08.2014 - 07.2015] GRJ7# |
55101-60G80 |
US $446.99 |
||
|
55133A
|
55133A
55133-60020 Reinforcement, Dash To Floor, Rh[08.2014 - 07.2015] GRJ7# |
55133-60020 |
US $17.47 |
||
|
55134A
|
55134A
55134-60040 Reinforcement, Dash To Floor, LhDASH TO FLOOR, LH [08.2014 - 07.2015] GRJ7# |
55134-60040 |
US $16.42 |
||
|
55210
|
55210
55210-60281 Insulator Assy, Dash Panel[08.2014 - 05.2015] GRJ7# |
55210-60281 |
US $199.18 |
||
|
55210
|
55210
55210-60283 Insulator Assy, Dash Panel[05.2015 - 07.2015] GRJ7# |
55210-60283 |
US $208.21 |
||
| replacement | |||||
|
55210
|
55210
55210-60281 Insulator Assy, Dash Panel[05.2015 - 07.2015] GRJ7# |
55210-60281 |
US $199.18 |
||
|
55223A
|
55223A
55223-60410
Insulator, Dash Panel, Outer
[08.2014 - 07.2015] GRJ7# |
55223-60410 |
— | ||
| replacement | |||||
|
55223A
|
55223A
55223-60411 Insulator, Dash Panel, Outer[08.2014 - 07.2015] GRJ7# |
55223-60411 |
US $108.33 |
||
|
91511B0816
|
91511B0816
91511-B0816 BOLT |
91511-B0816 |
US $0.84 |
||
| replacement | |||||
|
91511B0816
|
91511B0816
90080-10159 New Genuine Part |
90080-10159 |
US $3.21 |
||
|
91651B0822
|
91651B0822
91651-B0822 BOLT WWASHER |
91651-B0822 |
from US $0.92 |
||
|
9011908190
|
9011908190
90119-08190 BOLT |
90119-08190 |
US $2.15 |
||
|
9011908892
|
9011908892
90119-08892 BOLT WWASHER |
90119-08892 |
from US $0.98 |
||
|
9046708217
|
9046708217
90467-08217 Clip(For Radiator Side Air Seal) |
90467-08217 |
from US $0.90 |
||
|
9046710186
|
9046710186
90467-10186 Clip(For Front Fender Apron Seal) |
90467-10186 |
from US $1.33 |
||
|
9162140612
|
9162140612
91621-40612 BOLTWWASHER |
91621-40612 |
from US $0.74 |
||
|
9162140814
|
9162140814
91621-40814 New Genuine Part |
91621-40814 |
US $1.61 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.94 |
||
