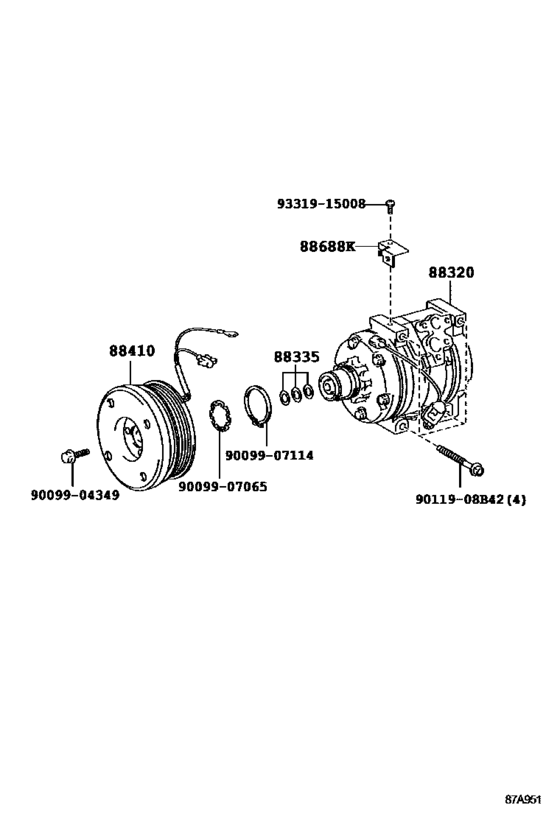

Heating & Air Conditioning - Compressor ([08.2014 - ] (1408- )) Diagram Toyota LAND CRUISER
- Year
- 2014 - 2015
- Sales region
- Japan
- Frame
- GRJ76
- grade
- LX
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 08.2014
- To
- 07.2015
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Vehicle Model
- Land Cruiser
- Fuel Induction
- HTWC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88320
|
88320
88320-6A370
Compressor Assy, Cooler
[08.2014 - 07.2015] GRJ7# |
88320-6A370 |
— | ||
|
88335
|
88335
88335-14020 Washer[08.2014 - 07.2015] GRJ7# |
88335-14020 |
from US $1.24 |
||
|
88410
|
88410
88410-6A130 Clutch Assy, MagnetMAGNET [08.2014 - 07.2015] GRJ7# |
88410-6A130 |
from US $366.91 |
||
|
88688K
|
88688K
88688-32670 Bracket, Cooler Compressor[08.2014 - 07.2015] GRJ7# |
88688-32670 |
US $5.50 |
||
|
9011908B42
|
9011908B42
90119-08B42 BOLT WWASHER |
90119-08B42 |
from US $1.15 |
||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009907065
|
9009907065
90099-07065 SNAP RING |
90099-07065 |
from US $1.13 |
||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.07 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $3.05 |
