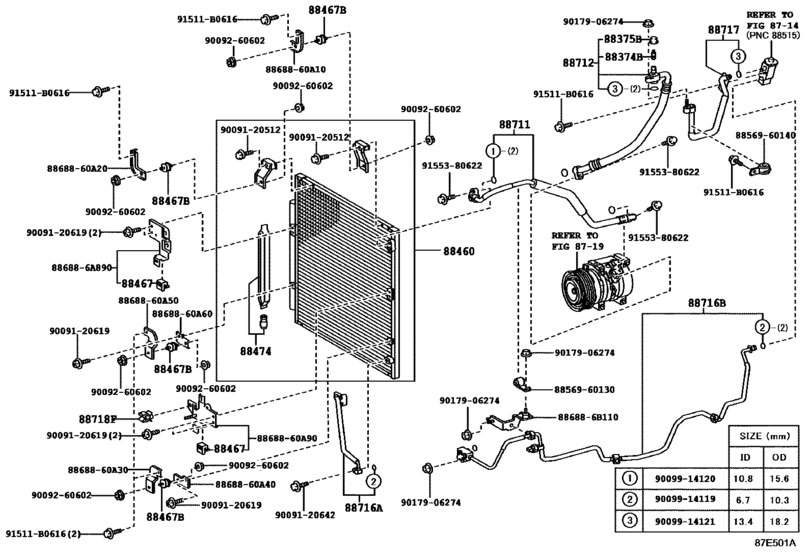

Heating & Air Conditioning - Cooler Piping ([08.2014 - ] (1408- )) Diagram Toyota LAND CRUISER
- Year
- 2014 - 2015
- Sales region
- Japan
- Frame
- GRJ76
- grade
- LX
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 08.2014
- To
- 07.2015
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Vehicle Model
- Land Cruiser
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88374B
|
88374B
88374-30010 Valve, Service, No.1[08.2014 - 07.2015] GRJ7# |
88374-30010 |
from US $3.12 |
||
|
88375B
|
88375B
88375-30290 Cap, Service Valve (For Cooler Pipe)[08.2014 - 07.2015] GRJ7# |
88375-30290 |
from US $0.88 |
||
|
88460
|
88460
88460-60470 Condenser Assy, Cooler[08.2014 - 07.2015] GRJ7# |
88460-60470 |
from US $375.65 |
||
|
88467
|
88467
88467-35080 Cushion, Cooler Condenser, No.1[08.2014 - 07.2015] GRJ7# |
88467-35080 |
from US $3.84 |
||
|
88467B
|
88467B
88467-30270 Cushion, Cooler Condenser, No.1[08.2014 - 07.2015] GRJ7# |
88467-30270 |
from US $1.75 |
||
|
88474
|
88474
88474-12030 Dryer, Cooler[08.2014 - 07.2015] GRJ7# |
88474-12030 |
from US $66.04 |
||
|
88711
|
88711
88711-60860 Hose, Cooler Refrigerant Discharge, No.1COOLER REFRIGERANT DISCHARGE, NO.1 [08.2014 - 07.2015] GRJ7# |
88711-60860 |
US $124.05 |
||
|
88712
|
88712
88712-60A00 Hose, Cooler Refrigerant Suction, No.1[08.2014 - 07.2015] GRJ7# |
88712-60A00 |
US $107.74 |
||
|
88716A
|
88716A
88716-6C250 Pipe, Cooler Refrigerant Liquid, ACOOLER REFRIGERANT LIQUID, A [08.2014 - 07.2015] GRJ7# |
88716-6C250 |
US $36.68 |
||
|
88716B
|
88716B
88716-6C360 Pipe, Cooler Refrigerant Liquid, BCOOLER REFRIGERANT LIQUID, B [08.2014 - 07.2015] GRJ7# |
88716-6C360 |
US $241.60 |
||
|
88717
|
88717
88717-6B160 Pipe, Cooler Refrigerant Suction, No.1COOLER REFRIGERANT SUCTION, NO.1 [08.2014 - 07.2015] GRJ7# |
88717-6B160 |
US $61.44 |
||
|
88718F
|
88718F
88718-2F110 Clamp(For Cooler Refrigerant Hose), No.1[08.2014 - 07.2015] GRJ7# |
88718-2F110 |
from US $1.67 |
||
|
91511B0616
|
91511B0616
91511-B0616 BOLTFLANGE |
91511-B0616 |
from US $0.86 |
||
| replacement | |||||
|
91511B0616
|
91511B0616
90080-10164 New Genuine Part |
90080-10164 |
US $2.67 |
||
|
886886A890
|
886886A890
88688-6A890
Bracket, Cooler Diaphragm
|
88688-6A890 |
— | ||
|
886886B110
|
886886B110
88688-6B110
Bracket, Cooler Diaphragm
|
88688-6B110 |
— | ||
|
8868860A10
|
8868860A10
88688-60A10
Bracket, Cooler Diaphragm
|
88688-60A10 |
— | ||
|
8868860A20
|
8868860A20
88688-60A20
Bracket, Cooler Diaphragm
|
88688-60A20 |
— | ||
|
8868860A30
|
8868860A30
88688-60A30
Bracket, Cooler Diaphragm
|
88688-60A30 |
— | ||
|
8868860A40
|
8868860A40
88688-60A40
Bracket, Cooler Diaphragm
|
88688-60A40 |
— | ||
|
8868860A50
|
8868860A50
88688-60A50
Bracket, Cooler Diaphragm
|
88688-60A50 |
— | ||
|
8868860A60
|
8868860A60
88688-60A60
Bracket, Cooler Diaphragm
|
88688-60A60 |
— | ||
|
8868860A90
|
8868860A90
88688-60A90
Bracket, Cooler Diaphragm
|
88688-60A90 |
— | ||
|
8856960130
|
8856960130
88569-60130
Clamp (for Cooler Relay)
|
88569-60130 |
— | ||
|
8856960140
|
8856960140
88569-60140
Clamp (for Cooler Relay)
|
88569-60140 |
— | ||
|
9009120512
|
9009120512
90091-20512 BOLT WWASHER |
90091-20512 |
US $0.28 |
||
|
9009120619
|
9009120619
90091-20619 BOLT |
90091-20619 |
US $0.28 |
||
|
9009120642
|
9009120642
90091-20642 BOLT WWASHER |
90091-20642 |
US $1.08 |
||
|
9009260602
|
9009260602
90092-60602 NUT |
90092-60602 |
US $0.96 |
||
|
9009914119
|
9009914119
90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe) |
90099-14119 |
from US $1.66 |
||
| replacement | |||||
|
9009914119
|
9009914119
90099-14119-TH O RING |
90099-14119-TH |
US $0.68 |
||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $1.83 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.56 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9155380622
|
9155380622
91553-80622 BOLT FLANGE |
91553-80622 |
US $1.08 |
||
