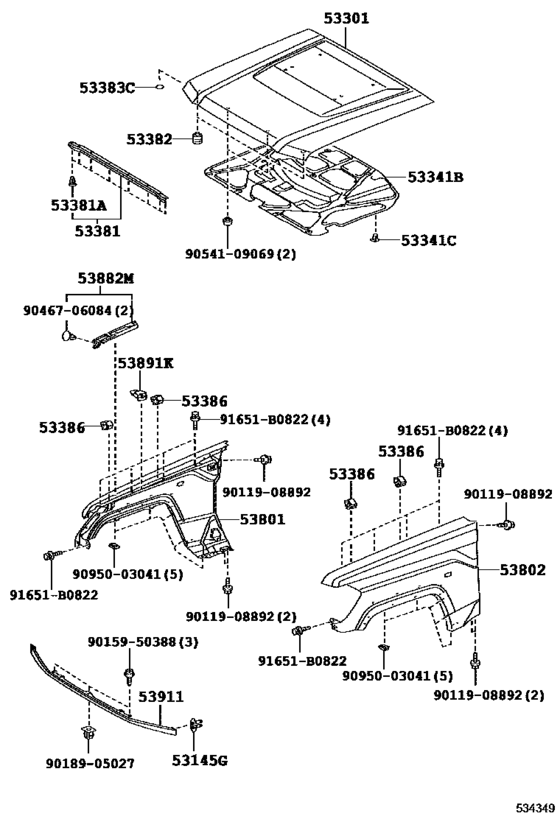

Hood & Front Fender ([08.2014 - ] (1408- )) Diagram Toyota LAND CRUISER
- Year
- 2014 - 2015
- Sales region
- Japan
- Frame
- GRJ76
- grade
- LX
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 08.2014
- To
- 07.2015
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Vehicle Model
- Land Cruiser
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53145G
|
53145G
53145-60020 Clip, Radiator GrilleRADIATOR GRILLE [08.2014 - 07.2015] GRJ7# |
53145-60020 |
from US $4.72 |
||
|
53301
|
53301
53301-60580
Hood Sub-Assy
[08.2014 - 07.2015] GRJ7# |
53301-60580 |
— | ||
| replacements | |||||
|
53301
|
53301
53301-60581 Hood Sub-Assy[08.2014 - 07.2015] GRJ7# |
53301-60581 |
from US $406.69 |
||
|
53301
|
53301
85371-12040 Clamp, Rear Washer Hose[08.2014 - 07.2015] GRJ7# |
85371-12040 |
from US $0.90 |
||
|
53341B
|
53341B
53341-60300 Insulator, HoodHOOD [08.2014 - 07.2015] GRJ7# |
53341-60300 |
US $200 |
||
|
53341C
|
53341C
90467-09050 Clip(For Hood Insulator)[08.2014 - 07.2015] GRJ7# |
90467-09050 |
from US $0.86 |
||
|
53381
|
53381
53381-60080 Seal, Hood To Radiator SupportHOOD TO RADIATOR SUPPORT [08.2014 - 07.2015] GRJ7# |
53381-60080 |
US $16.07 |
||
|
53381A
|
53381A
90467-08011 Clip(For Headlamp Cover Seal)[08.2014 - 07.2015] GRJ7# |
90467-08011 |
from US $0.33 |
||
| replacements | |||||
|
53381A
|
53381A
90467-08011-TH CLIP[08.2014 - 07.2015] GRJ7# |
90467-08011-TH |
US $0.31 |
||
|
53381A
|
53381A
90467-08011-83 Clip(For Headlamp Cover Seal)Clip(For Headlamp Cover Seal) [08.2014 - 07.2015] GRJ7# |
90467-08011-83 |
US $3.60 |
||
|
53382
|
53382
53382-60030 Bumper, Hood To Front Shroud[08.2014 - 07.2015] GRJ7# |
53382-60030 |
from US $6.09 |
||
|
53383C
|
53383C
53397-60010 Seal, Hood To Cowl Top[08.2014 - 07.2015] GRJ7# |
53397-60010 |
from US $5.38 |
||
|
53386
|
53386
53384-60060 Bumper, Hood, RearHOOD, REAR [08.2014 - 07.2015] GRJ7# |
53384-60060 |
from US $6.81 |
||
|
53801
|
53801
53801-60B10 Fender Sub-Assy, Front RhFRONT RH [08.2014 - 07.2015] GRJ76 |
53801-60B10 |
from US $294.12 |
||
|
53802
|
53802
53802-60D30 Fender Sub-Assy, Front Lh[08.2014 - 07.2015] GRJ76 |
53802-60D30 |
US $525.62 |
||
|
53882M
|
53882M
53883-60040 Seal, Front FenderFRONT FENDER [08.2014 - 07.2015] GRJ7# |
53883-60040 |
from US $13.45 |
||
|
53891K
|
53891K
53891-60010 Seal, Front Fender Splash Sheild, FrontFRONT FENDER SPLASH SHEILD, FRONT [08.2014 - 07.2015] GRJ7# |
53891-60010 |
US $2.91 |
||
|
53911
|
53911
53911-60030 Panel, Front ValanceFRONT VALANCE [08.2014 - 07.2015] GRJ7# |
53911-60030 |
from US $61.82 |
||
|
91651B0822
|
91651B0822
91651-B0822 BOLT WWASHER |
91651-B0822 |
from US $0.92 |
||
|
9011908892
|
9011908892
90119-08892 BOLT WWASHER |
90119-08892 |
from US $0.98 |
||
|
9015950388
|
9015950388
90159-50388 SCREW, W/WASHER |
90159-50388 |
from US $0.62 |
||
|
9018905027
|
9018905027
90189-05027 GROMMET |
90189-05027 |
from US $0.70 |
||
|
9046706084
|
9046706084
90467-06084 Clip(For Headlamp Cover Seal) |
90467-06084 |
from US $1.01 |
||
|
9054109069
|
9054109069
90541-09069 Cushion, Hood Bumper |
90541-09069 |
from US $2.22 |
||
|
9095003041
|
9095003041
90950-03041 CASE |
90950-03041 |
from US $2.52 |
||
