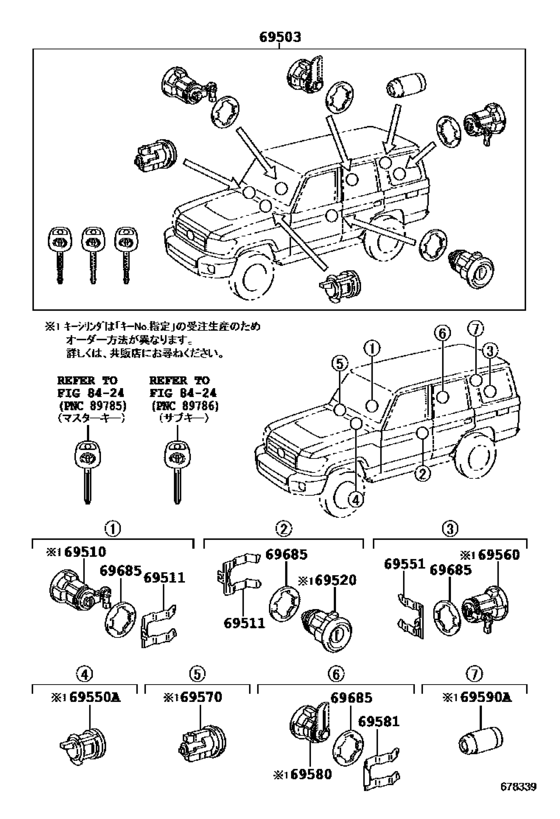

Lock Cylinder Set ([08.2014 - ] (1408- )GRJ76) Diagram Toyota LAND CRUISER
- Year
- 2014 - 2015
- Sales region
- Japan
- Frame
- GRJ76
- grade
- LX
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 08.2014
- To
- 07.2015
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Vehicle Model
- Land Cruiser
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69503
|
69503
69005-60C80
Cylinder Set, Lock
[08.2014 - 07.2015] GRJ76 |
69005-60C80 |
— | ||
|
69510
|
69510
69510-60310 Cylinder Assy, Front Door Lock, Rh[08.2014 - 07.2015] GRJ7# |
69510-60310 |
US $82.99 |
||
|
69511
|
69511
69511-60010 Retainer, Front Door Lock Cylinder[08.2014 - 07.2015] GRJ7# |
69511-60010 |
from US $8.39 |
||
|
69520
|
69520
69520-60270 Cylinder Assy, Front Door Lock, Lh[08.2014 - 07.2015] GRJ7# |
69520-60270 |
US $82.99 |
||
|
69550A
|
69550A
69550-21030 Cylinder Assy, Glove Compartment Door Lock[08.2014 - 07.2015] GRJ7# |
69550-21030 |
US $88.82 |
||
|
69551
|
69551
69511-60010 Retainer, Front Door Lock Cylinder[08.2014 - 07.2015] GRJ76 |
69511-60010 |
from US $8.39 |
||
|
69560
|
69560
69520-60270 Cylinder Assy, Front Door Lock, Lh[08.2014 - 07.2015] GRJ76 |
69520-60270 |
US $82.99 |
||
|
69570
|
69570
69570-60210 Cylinder Assy, Ignition Switch Lock[08.2014 - 07.2015] GRJ7# |
69570-60210 |
US $110.66 |
||
|
69580
|
69580
69580-60020 Cylinder Assy, Fuel Filler Opening Lid[08.2014 - 07.2015] GRJ76 |
69580-60020 |
US $82.99 |
||
|
69581
|
69581
69512-87001 Retainer, Front Door Lock Cylinder[08.2014 - 07.2015] GRJ76 |
69512-87001 |
US $1.79 |
||
|
69590A
|
69590A
69590-60140 Cylinder Assy, Spare Wheel Lock[08.2014 - 07.2015] GRJ7# |
69590-60140 |
US $119.39 |
||
|
69685
|
69685
69513-32010 Pad, Lock Cylinder[08.2014 - 07.2015] GRJ76 |
69513-32010 |
from US $1.40 |
