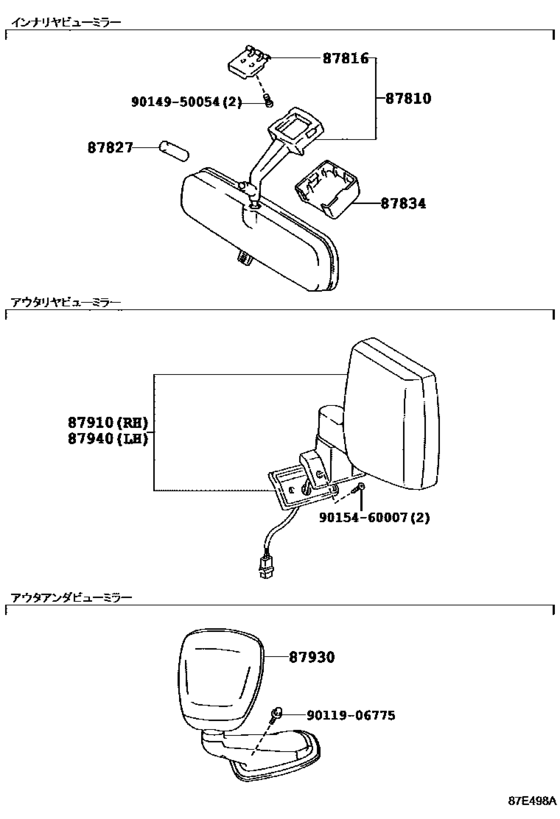

Mirror ([08.2014 - ] (1408- )) Diagram Toyota LAND CRUISER
- Year
- 2014 - 2015
- Sales region
- Japan
- Frame
- GRJ76
- grade
- LX
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 08.2014
- To
- 07.2015
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Vehicle Model
- Land Cruiser
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87810
|
87810
87810-90K05-B1 Mirror Assy, Inner Rear View[08.2014 - 07.2015] GRJ7# LT.GRAY,TRIM1# |
87810-90K05-B1 |
from US $51.91 |
||
|
87816
|
87816
74372-30030 Spring, Inner Rear View Mirror[08.2014 - 07.2015] GRJ7# |
74372-30030 |
from US $2.34 |
||
|
87827
|
87827
87828-10010 Absorber, Inner Rear View Mirror[08.2014 - 07.2015] GRJ7# 長さ＝４１．５ |
87828-10010 |
from US $4 |
||
|
87834
|
87834
87834-20080-B6 Cover, Inner Rear View Mirror Stay Holder[08.2014 - 07.2015] GRJ7# LIGHT GRAY,TRIM1# |
87834-20080-B6 |
from US $1.68 |
||
|
87910
|
87910
87910-60E90 Mirror Assy, Outer Rear View, RhOUTER REAR VIEW, RH [08.2014 - 07.2015] GRJ7# |
87910-60E90 |
US $278.40 |
||
|
87930
|
87930
87930-60101 Device Assy, Front Fender Side View, Lh[08.2014 - 07.2015] GRJ7# |
87930-60101 |
from US $97.27 |
||
|
87940
|
87940
87940-60C80 Mirror Assy, Outer Rear View, LhOUTER REAR VIEW, LH [08.2014 - 07.2015] GRJ7# |
87940-60C80 |
US $278.40 |
||
|
9011906775
|
9011906775
90119-06775 BOLT WWASHER |
90119-06775 |
from US $1.07 |
||
|
9014950054
|
9014950054
90149-50054 SCREW |
90149-50054 |
US $1.25 |
||
|
9015460007
|
9015460007
90154-60007 SCREW |
90154-60007 |
from US $1.09 |
