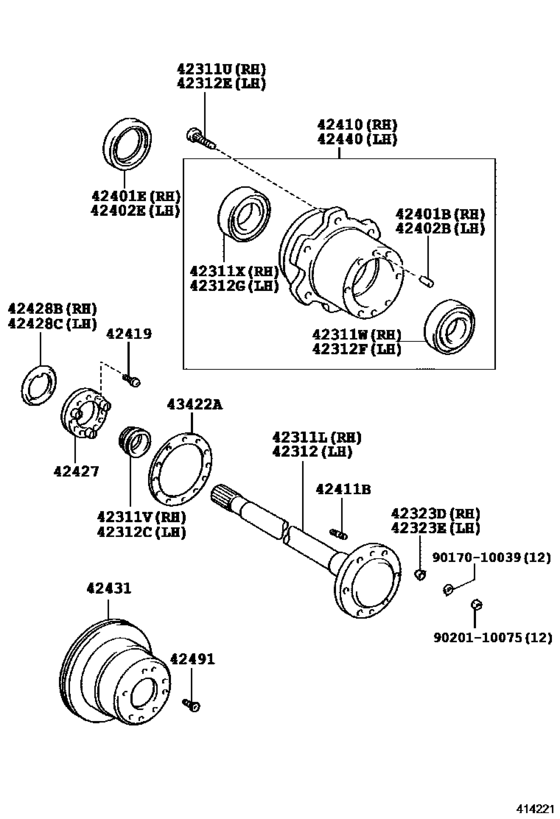

Rear Axle Shaft & Hub ([08.2014 - ] (1408- )) Diagram Toyota LAND CRUISER
- Year
- 2014 - 2015
- Sales region
- Japan
- Frame
- GRJ76
- grade
- LX
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 08.2014
- To
- 07.2015
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Vehicle Model
- Land Cruiser
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42311L
|
42311L
42311-60200
Shaft, Rear Axle, Rh
[08.2014 - 07.2015] GRJ7# |
42311-60200 |
— | ||
| replacement | |||||
|
42311L
|
42311L
42311-60201 Shaft, Rear Axle, Rh[08.2014 - 07.2015] GRJ7# |
42311-60201 |
from US $305.76 |
||
|
42311U
|
42311U
90942-02083 Bolt, Hub (For Rear Axle)[08.2014 - 07.2015] GRJ7# |
90942-02083 |
from US $3.06 |
||
|
42311V
|
42311V
90310-36003 Seal, Oil (For Rear Axle Shaft Outer)[08.2014 - 07.2015] GRJ7# |
90310-36003 |
from US $3.40 |
||
|
42311W
|
42311W
90368-45087 Bearing (For Axle Shaft Outer)[08.2014 - 07.2015] GRJ7# |
90368-45087 |
from US $43.66 |
||
|
42311X
|
42311X
90368-49084 Bearing (For Axle Shaft Inner)[08.2014 - 07.2015] GRJ7# |
90368-49084 |
from US $54.37 |
||
|
42312
|
42312
42312-60140
Shaft, Rear Axle, Lh
[08.2014 - 07.2015] GRJ7# |
42312-60140 |
— | ||
| replacement | |||||
|
42312
|
42312
42312-60141 Shaft, Rear Axle, Lh[08.2014 - 07.2015] GRJ7# |
42312-60141 |
from US $375.65 |
||
|
42312C
|
42312C
90310-36003 Seal, Oil (For Rear Axle Shaft Outer)[08.2014 - 07.2015] GRJ7# |
90310-36003 |
from US $3.40 |
||
|
42312E
|
42312E
90942-02083 Bolt, Hub (For Rear Axle)[08.2014 - 07.2015] GRJ7# |
90942-02083 |
from US $3.06 |
||
|
42312F
|
42312F
90368-45087 Bearing (For Axle Shaft Outer)[08.2014 - 07.2015] GRJ7# |
90368-45087 |
from US $43.66 |
||
|
42312G
|
42312G
90368-49084 Bearing (For Axle Shaft Inner)[08.2014 - 07.2015] GRJ7# |
90368-49084 |
from US $54.37 |
||
|
42323D
|
42323D
42323-60030 Washer, Cone (For Front Axle Shaft Rh)[08.2014 - 07.2015] GRJ7# |
42323-60030 |
from US $1.09 |
||
|
42323E
|
42323E
42323-60030 Washer, Cone (For Front Axle Shaft Rh)[08.2014 - 07.2015] GRJ7# |
42323-60030 |
from US $1.09 |
||
|
42401B
|
42401B
90250-10032 Pin, Straight (For Rear Axle Hub Rh)[08.2014 - 07.2015] GRJ7# |
90250-10032 |
from US $1.35 |
||
|
42401E
|
42401E
90311-62002 Seal, Oil (For Rear Axle Hub)[08.2014 - 07.2015] GRJ7# |
90311-62002 |
from US $15.05 |
||
|
42402B
|
42402B
90250-10032 Pin, Straight (For Rear Axle Hub Rh)[08.2014 - 07.2015] GRJ7# |
90250-10032 |
from US $1.35 |
||
|
42402E
|
42402E
90311-62002 Seal, Oil (For Rear Axle Hub)[08.2014 - 07.2015] GRJ7# |
90311-62002 |
from US $15.05 |
||
|
42410
|
42410
42407-69005 Hub & Bearing Assy, Rear Axle, Rh[08.2014 - 07.2015] GRJ7# |
42407-69005 |
from US $231.45 |
||
|
42411B
|
42411B
90116-10201 Bolt, Stud (For Rear Axle Hub)[08.2014 - 07.2015] GRJ7# |
90116-10201 |
from US $1.13 |
||
|
42419
|
42419
42419-60011 Screw, Rear Axle Bearing Lock Nut[08.2014 - 07.2015] GRJ7# |
42419-60011 |
from US $1.40 |
||
|
42427
|
42427
42427-60021 Nut, Rear Axle Bearing Lock[08.2014 - 07.2015] GRJ7# |
42427-60021 |
from US $36.96 |
||
|
42428B
|
42428B
42428-60011 Plate, Rear Axle Lock Nut[08.2014 - 07.2015] GRJ7# |
42428-60011 |
from US $18.82 |
||
|
42428C
|
42428C
42428-60011 Plate, Rear Axle Lock Nut[08.2014 - 07.2015] GRJ7# |
42428-60011 |
from US $18.82 |
||
|
42431
|
42431
42431-60261 Disc, Rear[08.2014 - 07.2015] GRJ7# |
42431-60261 |
from US $142.68 |
||
|
42440
|
42440
42407-69005 Hub & Bearing Assy, Rear Axle, Rh[08.2014 - 07.2015] GRJ7# |
42407-69005 |
from US $231.45 |
||
|
42491
|
42491
47491-22020 Plug, Shoe Adjusting Hole (For Parking Brake)[08.2014 - 07.2015] GRJ7# |
47491-22020 |
from US $1.77 |
||
|
43422A
|
43422A
43422-60070 Gasket, Axle Outer Shaft Flange[08.2014 - 07.2015] GRJ7# |
43422-60070 |
from US $1.44 |
||
|
9017010039
|
9017010039
90170-10039 NUT, HEXAGON |
90170-10039 |
from US $0.80 |
||
|
9020110075
|
9020110075
90201-10075 WASHER |
90201-10075 |
from US $0.92 |
||
