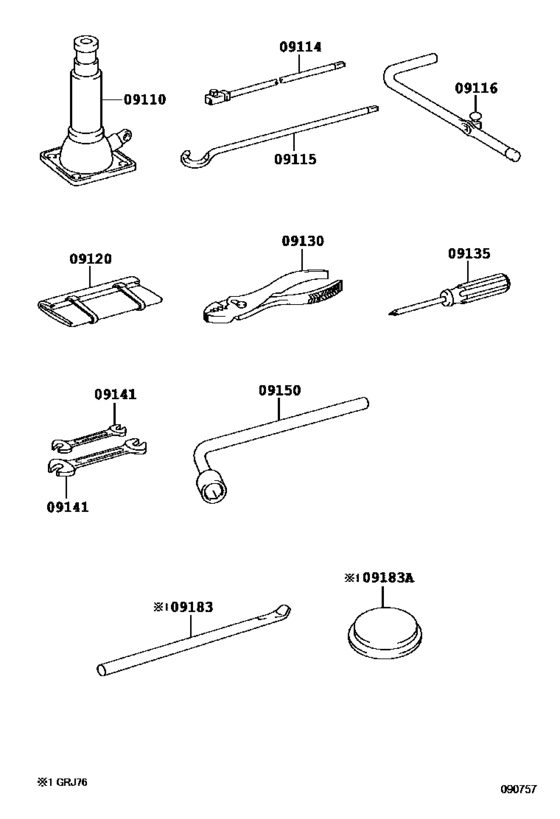

Standard Tool ([08.2014 - ] (1408- )) Diagram Toyota LAND CRUISER
- Year
- 2014 - 2015
- Sales region
- Japan
- Frame
- GRJ76
- grade
- LX
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 08.2014
- To
- 07.2015
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Vehicle Model
- Land Cruiser
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
09110
|
09110
09111-60092
Jack Assy
[08.2014 - 07.2015] GRJ7# |
09111-60092 |
— | ||
| replacement | |||||
|
09110
|
09110
09111-60180 Jack Assy[08.2014 - 07.2015] GRJ7# |
09111-60180 |
US $95.12 |
||
|
09114
|
09114
09114-60070 Extension Sub-Assy, Jack Handle[08.2014 - 07.2015] GRJ76 |
09114-60070 |
from US $8.06 |
||
|
09115
|
09115
09115-60040 Rod Sub-Assy, Jack Handle[08.2014 - 07.2015] GRJ76 |
09115-60040 |
from US $8.60 |
||
|
09116
|
09116
09116-60010 Lever, Jack Handle[08.2014 - 07.2015] GRJ7# |
09116-60010 |
US $10.75 |
||
|
09120
|
09120
09120-60160
Bag, Tool
[08.2014 - 07.2015] GRJ7# |
09120-60160 |
— | ||
| replacement | |||||
|
09120
|
09120
09120-60161
Bag, Tool
[08.2014 - 07.2015] GRJ7# |
09120-60161 |
— | ||
|
09130
|
09130
99913-11500 Pliers (China)No Toyota stamp [08.2014 - 07.2015] GRJ7# |
99913-11500 |
from US $7.17 |
||
|
09135
|
09135
99915-10700 Driver, ScrewNo Toyota stamp [08.2014 - 07.2015] GRJ7# |
99915-10700 |
from US $8.24 |
||
| replacement | |||||
|
09135
|
09135
90089-99009 Driver, Screw (ATC) (Thailand)Screw Driver (ATC) [08.2014 - 07.2015] GRJ7# |
90089-99009 |
from US $2.46 |
||
|
09141
|
09141
99914-10810 Spanner (China)No Toyota stamp [08.2014 - 07.2015] GRJ7# ８ Ｘ １０ |
99914-10810 |
from US $4.30 |
||
| replacement | |||||
|
09141
|
09141
09141-0K030 Spanner (ATC) (Thailand)8x10 [08.2014 - 07.2015] GRJ7# ８ Ｘ １０ |
09141-0K030 |
from US $6.99 |
||
|
09141
|
09141
99914-11214 Spanner (China)No Toyota stamp [08.2014 - 07.2015] GRJ7# １２ Ｘ １４ |
99914-11214 |
from US $6.45 |
||
| replacement | |||||
|
09141
|
09141
09141-0K040 Spanner (Thailand)[08.2014 - 07.2015] GRJ7# １２ Ｘ １４ |
09141-0K040 |
from US $10.48 |
||
|
09150
|
09150
09150-60030 Wrench, Hub Nut Box[08.2014 - 07.2015] GRJ7# |
09150-60030 |
from US $25.20 |
||
|
09183
|
09183
09183-00030 Wrench, Wheel Cap[08.2014 - 07.2015] GRJ76 |
09183-00030 |
from US $8.76 |
||
|
09183A
|
09183A
09183-60040 Replacer, Wheel Cap[08.2014 - 07.2015] GRJ76 |
09183-60040 |
US $9.61 |
||
