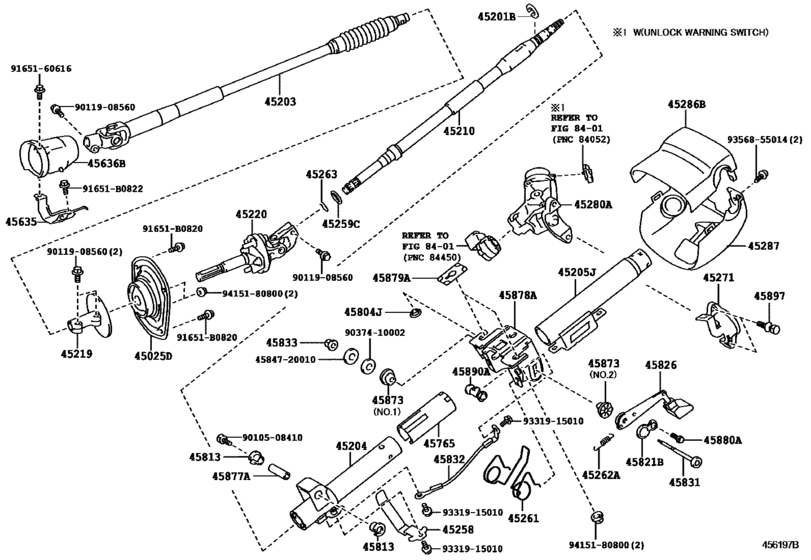

Steering Column & Shaft ([08.2014 - ] (1408- )) Diagram Toyota LAND CRUISER
- Year
- 2014 - 2015
- Sales region
- Japan
- Frame
- GRJ76
- grade
- LX
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 08.2014
- To
- 07.2015
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Vehicle Model
- Land Cruiser
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45025D
|
45025D
45025-60230 Cover Sub-Assy, Steering Column Hole, No.1[08.2014 - 07.2015] GRJ7# |
45025-60230 |
US $17.65 |
||
|
45201B
|
45201B
90520-21023 Ring, Shaft Snap(For Steering Main Shaft)[08.2014 - 07.2015] GRJ7# 厚さ＝１．２０ |
90520-21023 |
US $0.51 |
||
|
45203
|
45203
45203-60190 Shaft Sub-Assy, Steering Intermediate, No.2STEERING INTERMEDIATE, NO.2 [08.2014 - 07.2015] GRJ7# |
45203-60190 |
from US $204.42 |
||
|
45204
|
45204
45204-60040 Tube Assy, Steering Column, Lower[08.2014 - 07.2015] GRJ7# |
45204-60040 |
US $40.19 |
||
|
45205J
|
45205J
45205-22260 Tube Sub-Assy, Steering Column, Upper[08.2014 - 07.2015] GRJ7# |
45205-22260 |
US $37.51 |
||
|
45210
|
45210
45210-60170 Shaft Assy, Steering MainSTEERING MAIN [08.2014 - 07.2015] GRJ7# |
45210-60170 |
from US $202.68 |
||
|
45219
|
45219
45219-60100 Yoke, Steering SlidingSTEERING SLIDING [08.2014 - 07.2015] GRJ7# |
45219-60100 |
from US $15.03 |
||
|
45220
|
45220
45220-60290
Shaft Assy, Steering Intermediate
[08.2014 - 07.2015] GRJ7# |
45220-60290 |
— | ||
| replacement | |||||
|
45220
|
45220
45220-60310 Shaft Assy, Steering Intermediate[08.2014 - 07.2015] GRJ7# |
45220-60310 |
from US $129.29 |
||
|
45258
|
45258
45258-60010 Bracket, Steering Column Tube[08.2014 - 07.2015] GRJ7# |
45258-60010 |
US $2.62 |
||
|
45259C
|
45259C
45259-35010 Sheet, Steering Main Shaft BearingSTEERING MAIN SHAFT BEARING [08.2014 - 07.2015] GRJ7# |
45259-35010 |
US $0.68 |
||
|
45261
|
45261
45261-35020 Spring, Tilt Steering Jump Up[08.2014 - 07.2015] GRJ7# |
45261-35020 |
US $4.54 |
||
|
45262A
|
45262A
45262-35010 Spring, Tilt Lever Return[08.2014 - 07.2015] GRJ7# |
45262-35010 |
US $0.71 |
||
|
45263
|
45263
45263-35010 Ring, Steering Column, No.1STEERING COLUMN, NO.1 [08.2014 - 07.2015] GRJ7# |
45263-35010 |
US $0.71 |
||
|
45271
|
45271
45271-22020 Clamp, Steering Column, Upper[08.2014 - 07.2015] GRJ7# |
45271-22020 |
US $8.04 |
||
|
45280A
|
45280A
45280-60640 Bracket Assy, Steering Column, UpperSTEERING COLUMN, UPPER [08.2014 - 07.2015] GRJ7# |
45280-60640 |
from US $119.39 |
||
|
45286B
|
45286B
45286-22510-B0 Cover, Steering Column, Upr (Bluish Gray)[08.2014 - 07.2015] GRJ7# BLUISH GRAY,TRIM1# |
45286-22510-B0 |
from US $19.04 |
||
|
45287
|
45287
45287-22480-B0 Cover, Steering Column, Lwr[08.2014 - 07.2015] GRJ7# BLUISH GRAY,TRIM1# |
45287-22480-B0 |
US $42.98 |
||
|
45635
|
45635
45635-60050 Support, Intermediate Link Joint Protector[08.2014 - 07.2015] GRJ7# |
45635-60050 |
US $4.72 |
||
|
45636B
|
45636B
45636-60051 Protector, Intermediate Link Joint[08.2014 - 07.2015] GRJ7# |
45636-60051 |
US $7.69 |
||
|
45765
|
45765
45765-35010 Guide, Telescopic Steering[08.2014 - 07.2015] GRJ7# |
45765-35010 |
US $8.37 |
||
|
45804J
|
45804J
45804-22030 Collar Sub-Assy, Break Away[08.2014 - 07.2015] GRJ7# |
45804-22030 |
US $3.67 |
||
|
45813
|
45813
45813-12020 Collar, Tilt Steering Support, No.1[08.2014 - 07.2015] GRJ7# 外径＝２４−１６ |
45813-12020 |
from US $0.82 |
||
|
45821B
|
45821B
45821-35020 Reinforce, Tilt Steering Support, No.1[08.2014 - 07.2015] GRJ7# |
45821-35020 |
US $0.86 |
||
|
45826
|
45826
45826-22130 Lever, Steering Tilt[08.2014 - 07.2015] GRJ7# |
45826-22130 |
US $4.37 |
||
|
45831
|
45831
45831-35010 Bolt, Tilt Lever Lock, No.1[08.2014 - 07.2015] GRJ7# |
45831-35010 |
US $2.62 |
||
|
45832
|
45832
45832-60020 Cable, Tilt Steering Support Bond[08.2014 - 07.2015] GRJ7# |
45832-60020 |
US $5.94 |
||
|
45833
|
45833
45833-20030 Nut, Tilt Steering Adjusting, No.1[08.2014 - 07.2015] GRJ7# |
45833-20030 |
US $0.71 |
||
|
45873
|
45873
45873-20050 Stopper, Steering Column Tube[08.2014 - 07.2015] GRJ7# ＮＯ．１ |
45873-20050 |
US $2.52 |
||
|
45873
|
45873
45873-35010 Stopper, Steering Column Tube[08.2014 - 07.2015] GRJ7# ＮＯ．２ |
45873-35010 |
US $2.52 |
||
|
45877A
|
45877A
45877-35030 Spacer, Steering Column Bracket[08.2014 - 07.2015] GRJ7# |
45877-35030 |
US $2.80 |
||
|
45878A
|
45878A
45878-35161 Bracket, Break Away[08.2014 - 07.2015] GRJ7# |
45878-35161 |
US $29.53 |
||
|
45879A
|
45879A
45879-22070 Capsule, Break Away[08.2014 - 07.2015] GRJ7# |
45879-22070 |
US $0.99 |
||
|
45880A
|
45880A
45832-12010 Bolt(For Steering Tilt Lever)[08.2014 - 07.2015] GRJ7# |
45832-12010 |
US $2.62 |
||
|
45890A
|
45890A
45823-35020 Pawl Assy, Tilt Steering[08.2014 - 07.2015] GRJ7# |
45823-35020 |
from US $1.41 |
||
|
45897
|
45897
45897-12030 Bolt, Hexagon(For Steering Column Bracket)[08.2014 - 07.2015] GRJ7# チルト |
45897-12030 |
US $8.56 |
||
|
91651B0820
|
91651B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.99 |
||
| replacement | |||||
|
91651B0820
|
91651B0820
90080-11347 New Genuine Part |
90080-11347 |
US $3.11 |
||
|
91651B0822
|
91651B0822
91651-B0822 BOLT WWASHER |
91651-B0822 |
from US $0.92 |
||
|
4584720010
|
4584720010
45847-20010 ROTOR TILT STEERING |
45847-20010 |
US $2.62 |
||
|
9010508410
|
9010508410
90105-08410 New Genuine Part |
90105-08410 |
US $1.40 |
||
|
9011908560
|
9011908560
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.13 |
||
| replacement | |||||
|
9011908560
|
9011908560
90080-11555 Bolt w-washer |
90080-11555 |
US $44.70 |
||
|
9037410002
|
9037410002
90374-10002 New Genuine Part |
90374-10002 |
US $4.89 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.94 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $0.83 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.80 |
||
