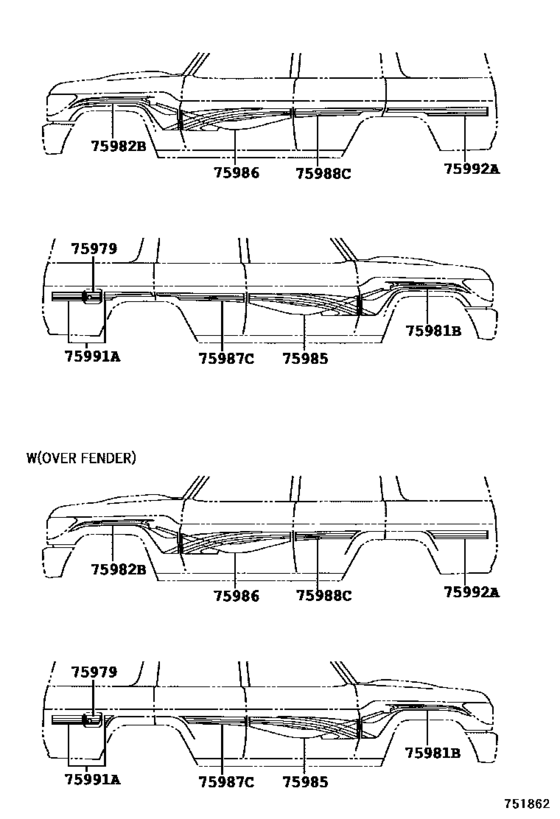

Body Stripe ([01.2007 - 08.2012] (0701-1208)FZJ76,GRJ76,HZJ76) Diagram Toyota LAND CRUISER
- Year
- 2009 - 2018
- Sales region
- U.S.A.
- Frame
- GRJ76
- grade
- STD
- body
- HT
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 70
- From
- 07.2009
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75979
|
75979
75979-60390
Stripe, Fuel Filler Opening Lid
[07.2009 - 08.2012] GRJ76,HZJ76 BODY STRIPE-WITH; GRJ76,HZJ76 BODY STRIPE-WITH&TIRE & DISK WHEEL-265/70R16C 7JJ ALUMINUM W(TUBE); HZJ76..RHD BODY STRIPE-WITH&SOUTH AFRICA SPEC; HZJ76..RHD BODY STRIPE-WITH&SOUTH AFRICA SPEC&TIRE & DISK WHEEL-265/70R16C 7JJ |
75979-60390 |
— | ||
|
75979
|
75979
75979-60420 Stripe, Fuel Filler Opening Lid[08.2012 - 08.2016] GRJ76,HZJ76 BODY STRIPE-WITH; GRJ76,HZJ76 BODY STRIPE-WITH&TIRE & DISK WHEEL-265/70R16C 7JJ ALUMINUM W(TUBE); HZJ76..RHD BODY STRIPE-WITH&SOUTH AFRICA SPEC; HZJ76..RHD BODY STRIPE-WITH&SOUTH AFRICA SPEC&TIRE & DISK WHEEL-265/70R16C 7JJ |
75979-60420 |
US $32.37 |
||
|
75981B
|
75981B
75981-60B80
Stripe, Fender, Rh
[07.2009 - 08.2012] GRJ71,76,79,HZJ71,76,79..(HT,PIC)..GEN..CBU BODY STRIPE-WITH; HZJ79..GEN..CBU BODY STRIPE-WITH&FUEL TANK-W(SUB TANK); GRJ79..GEN..CBU BODY STRIPE-WITH&FUEL TANK-W(SUB TANK); HZJ79..GEN..CBU BODY STRIPE-WITH&FUEL TANK-W(FUEL TANK CAP, W |
75981-60B80 |
— | ||
|
75981B
|
75981B
75981-60C60 Stripe, Fender, Rh[08.2012 - 08.2016] GRJ71,76,79,HZJ71,76,79..(DCB,HT,PIC)..GEN..CBU BODY STRIPE-WITH; HZJ79..PIC..GEN..CBU BODY STRIPE-WITH&FUEL TANK-W(SUB TANK); GRJ79..PIC..GEN..CBU BODY STRIPE-WITH&FUEL TANK-W(SUB TANK); HZJ79..PIC..GEN..CBU BODY STRIPE-WITH&FUEL TANK |
75981-60C60 |
US $115.84 |
||
|
75982B
|
75982B
75982-60B50
Stripe, Fender, Lh
[07.2009 - 08.2012] GRJ71,76,79,HZJ71,76,79..(HT,PIC)..GEN..CBU BODY STRIPE-WITH; HZJ79..GEN..CBU BODY STRIPE-WITH&FUEL TANK-W(SUB TANK); GRJ79..GEN..CBU BODY STRIPE-WITH&FUEL TANK-W(SUB TANK); HZJ79..GEN..CBU BODY STRIPE-WITH&FUEL TANK-W(FUEL TANK CAP, W |
75982-60B50 |
— | ||
|
75982B
|
75982B
75982-60C30 Stripe, Fender, Lh[08.2012 - 08.2016] GRJ71,76,79,HZJ71,76,79..(DCB,HT,PIC)..GEN..CBU BODY STRIPE-WITH; HZJ79..PIC..GEN..CBU BODY STRIPE-WITH&FUEL TANK-W(SUB TANK); GRJ79..PIC..GEN..CBU BODY STRIPE-WITH&FUEL TANK-W(SUB TANK); HZJ79..PIC..GEN..CBU BODY STRIPE-WITH&FUEL TANK |
75982-60C30 |
US $115.84 |
||
|
75985
|
75985
75985-60800
Stripe, Front Door, Rh
[07.2009 - 08.2012] GRJ76,HZJ76 BODY STRIPE-WITH; GRJ76,HZJ76 BODY STRIPE-WITH&TIRE & DISK WHEEL-265/70R16C 7JJ ALUMINUM W(TUBE); HZJ76..RHD BODY STRIPE-WITH&SOUTH AFRICA SPEC; HZJ76..RHD BODY STRIPE-WITH&SOUTH AFRICA SPEC&TIRE & DISK WHEEL-265/70R16C 7JJ |
75985-60800 |
— | ||
|
75985
|
75985
75985-60860 Stripe, Front Door, Rh[08.2012 - 08.2016] GRJ76,79,HZJ76,79..DCB,HT BODY STRIPE-WITH; GRJ76,HZJ76 BODY STRIPE-WITH&TIRE & DISK WHEEL-265/70R16C 7JJ ALUMINUM W(TUBE); GRJ79,HZJ76,79..RHD..(DCB,HT) BODY STRIPE-WITH&SOUTH AFRICA SPEC; HZJ76..RHD BODY STRIPE-WITH&SOUTH AFRICA SPEC |
75985-60860 |
US $134.58 |
||
|
75986
|
75986
75986-60800
Stripe, Front Door, Lh
[07.2009 - 08.2012] GRJ76,HZJ76 BODY STRIPE-WITH; GRJ76,HZJ76 BODY STRIPE-WITH&TIRE & DISK WHEEL-265/70R16C 7JJ ALUMINUM W(TUBE); HZJ76..RHD BODY STRIPE-WITH&SOUTH AFRICA SPEC; HZJ76..RHD BODY STRIPE-WITH&SOUTH AFRICA SPEC&TIRE & DISK WHEEL-265/70R16C 7JJ |
75986-60800 |
— | ||
|
75986
|
75986
75986-60860 Stripe, Front Door, Lh[08.2012 - 08.2016] GRJ76,79,HZJ76,79..DCB,HT BODY STRIPE-WITH; GRJ76,HZJ76 BODY STRIPE-WITH&TIRE & DISK WHEEL-265/70R16C 7JJ ALUMINUM W(TUBE); GRJ79,HZJ76,79..RHD..(DCB,HT) BODY STRIPE-WITH&SOUTH AFRICA SPEC; HZJ76..RHD BODY STRIPE-WITH&SOUTH AFRICA SPEC |
75986-60860 |
US $134.58 |
||
|
75987C
|
75987C
75987-60590
Stripe, Rear Door, Outside, Rh
[07.2009 - 08.2012] GRJ76,HZJ76 BODY STRIPE-WITH&TIRE & DISK WHEEL-265/70R16C 7JJ ALUMINUM W(TUBE); HZJ76..RHD BODY STRIPE-WITH&SOUTH AFRICA SPEC&TIRE & DISK WHEEL-265/70R16C 7JJ ALUMINUM W(TUB E) |
75987-60590 |
— | ||
|
75987C
|
75987C
75987-60600
Stripe, Rear Door, Outside, Rh
[07.2009 - 08.2012] GRJ76,HZJ76 BODY STRIPE-WITH; HZJ76..RHD BODY STRIPE-WITH&SOUTH AFRICA SPEC |
75987-60600 |
— | ||
|
75987C
|
75987C
75987-60650 Stripe, Rear Door, Outside, Rh[08.2012 - 08.2016] GRJ76,HZJ76 BODY STRIPE-WITH&TIRE & DISK WHEEL-265/70R16C 7JJ ALUMINUM W(TUBE); HZJ76..RHD BODY STRIPE-WITH&SOUTH AFRICA SPEC&TIRE & DISK WHEEL-265/70R16C 7JJ ALUMINUM W(TUB E); HZJ76..RHD BODY STRIPE-WITH&SOUTH AFRICA SPEC&TIRE & DISK |
75987-60650 |
US $74.78 |
||
|
75987C
|
75987C
75987-60660
Stripe, Rear Door, Outside, Rh
[08.2012 - 08.2016] GRJ76,HZJ76 BODY STRIPE-WITH; HZJ76..RHD BODY STRIPE-WITH&SOUTH AFRICA SPEC |
75987-60660 |
— | ||
|
75988C
|
75988C
75988-60750 Stripe, Rear Door, Outside LhREAR DOOR, OUTSIDE LH [07.2009 - 08.2012] GRJ76,HZJ76 BODY STRIPE-WITH&TIRE & DISK WHEEL-265/70R16C 7JJ ALUMINUM W(TUBE); HZJ76..RHD BODY STRIPE-WITH&SOUTH AFRICA SPEC&TIRE & DISK WHEEL-265/70R16C 7JJ ALUMINUM W(TUB E) |
75988-60750 |
US $107.74 |
||
|
75988C
|
75988C
75988-60760
Stripe, Rear Door, Outside Lh
[07.2009 - 08.2012] GRJ76,HZJ76 BODY STRIPE-WITH; HZJ76..RHD BODY STRIPE-WITH&SOUTH AFRICA SPEC |
75988-60760 |
— | ||
|
75988C
|
75988C
75988-60820 Stripe, Rear Door, Outside Lh[08.2012 - 08.2016] GRJ76,HZJ76 BODY STRIPE-WITH&TIRE & DISK WHEEL-265/70R16C 7JJ ALUMINUM W(TUBE); HZJ76..RHD BODY STRIPE-WITH&SOUTH AFRICA SPEC&TIRE & DISK WHEEL-265/70R16C 7JJ ALUMINUM W(TUB E); HZJ76..RHD BODY STRIPE-WITH&SOUTH AFRICA SPEC&TIRE & DISK |
75988-60820 |
US $74.78 |
||
|
75988C
|
75988C
75988-60830
Stripe, Rear Door, Outside Lh
[08.2012 - 08.2016] GRJ76,HZJ76 BODY STRIPE-WITH; HZJ76..RHD BODY STRIPE-WITH&SOUTH AFRICA SPEC |
75988-60830 |
— | ||
|
75991A
|
75991A
75991-60D50
Stripe, Quarter, Rh
[07.2009 - 08.2012] GRJ76,HZJ76 BODY STRIPE-WITH&TIRE & DISK WHEEL-265/70R16C 7JJ ALUMINUM W(TUBE); HZJ76..RHD BODY STRIPE-WITH&SOUTH AFRICA SPEC&TIRE & DISK WHEEL-265/70R16C 7JJ ALUMINUM W(TUB E) |
75991-60D50 |
— | ||
|
75991A
|
75991A
75991-60D60
Stripe, Quarter, Rh
[07.2009 - 08.2012] GRJ76,HZJ76 BODY STRIPE-WITH; HZJ76..RHD BODY STRIPE-WITH&SOUTH AFRICA SPEC |
75991-60D60 |
— | ||
|
75991A
|
75991A
75991-60E30 Stripe, Quarter, Rh[08.2012 - 08.2016] GRJ76,HZJ76 BODY STRIPE-WITH&TIRE & DISK WHEEL-265/70R16C 7JJ ALUMINUM W(TUBE); HZJ76..RHD BODY STRIPE-WITH&SOUTH AFRICA SPEC&TIRE & DISK WHEEL-265/70R16C 7JJ ALUMINUM W(TUB E); HZJ76..RHD BODY STRIPE-WITH&SOUTH AFRICA SPEC&TIRE & DISK |
75991-60E30 |
US $54 |
||
|
75991A
|
75991A
75991-60E40
Stripe, Quarter, Rh
[08.2012 - 08.2016] GRJ76,HZJ76 BODY STRIPE-WITH; HZJ76..RHD BODY STRIPE-WITH&SOUTH AFRICA SPEC |
75991-60E40 |
— | ||
|
75992A
|
75992A
75992-60D50
Stripe, Quarter, Lh
[07.2009 - 08.2012] GRJ76,HZJ76 BODY STRIPE-WITH&TIRE & DISK WHEEL-265/70R16C 7JJ ALUMINUM W(TUBE); HZJ76..RHD BODY STRIPE-WITH&SOUTH AFRICA SPEC&TIRE & DISK WHEEL-265/70R16C 7JJ ALUMINUM W(TUB E) |
75992-60D50 |
— | ||
|
75992A
|
75992A
75992-60D60
Stripe, Quarter, Lh
[07.2009 - 08.2012] GRJ76,HZJ76 BODY STRIPE-WITH; HZJ76..RHD BODY STRIPE-WITH&SOUTH AFRICA SPEC |
75992-60D60 |
— | ||
|
75992A
|
75992A
75992-60E30 Stripe, Quarter, Lh[08.2012 - 08.2016] GRJ76,HZJ76 BODY STRIPE-WITH&TIRE & DISK WHEEL-265/70R16C 7JJ ALUMINUM W(TUBE); HZJ76..RHD BODY STRIPE-WITH&SOUTH AFRICA SPEC&TIRE & DISK WHEEL-265/70R16C 7JJ ALUMINUM W(TUB E); HZJ76..RHD BODY STRIPE-WITH&SOUTH AFRICA SPEC&TIRE & DISK |
75992-60E30 |
US $64.56 |
||
|
75992A
|
75992A
75992-60E40
Stripe, Quarter, Lh
[08.2012 - 08.2016] GRJ76,HZJ76 BODY STRIPE-WITH; HZJ76..RHD BODY STRIPE-WITH&SOUTH AFRICA SPEC |
75992-60E40 |
— |
