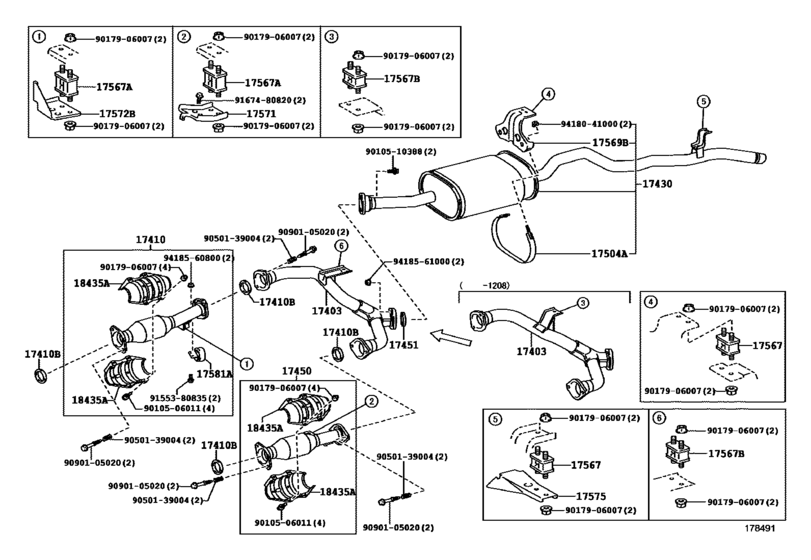

Exhaust Pipe ([07.2009 - ] (0907- )1GRFE..GRJ76) Diagram Toyota LAND CRUISER
- Year
- 2009 - 2018
- Sales region
- U.S.A.
- Frame
- GRJ76
- grade
- STD
- body
- HT
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 70
- From
- 07.2009
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17403
|
17403
17403-31110
Pipe Sub-Assy, Exhaust, Front No.3
[07.2009 - 08.2012] 1GRFE..GRJ71,76 |
17403-31110 |
— | ||
|
17403
|
17403
17403-31160 Pipe Sub-Assy, Exhaust, Front No.3[08.2012 - 08.2016] 1GRFE..GRJ71,76,79..DCB,HT,SOT |
17403-31160 |
US $206.17 |
||
|
17410
|
17410
17410-31A50
Pipe Assy, Exhaust, Front
[07.2009 - 01.2014] 1GRFE..GRJ79..DCB;1GRFE..GRJ71,76..LHD |
17410-31A50 |
— | ||
|
17410
|
17410
17410-31K30 Pipe Assy, Exhaust, Front[01.2014 - 08.2016] 1GRFE..GRJ71,76,79..DCB,HT,SOT |
17410-31K30 |
US $908.54 |
||
|
17410
|
17410
17410-31L10
Pipe Assy, Exhaust, Front
[08.2016 -] 1GRFE..GRJ71,76,79..DCB,HT,SOT |
17410-31L10 |
— | ||
|
17410B
|
17410B
17451-28040
Gasket, Exhaust Pipe
[07.2009 - 08.2016] 1GRFE..GRJ79;1GRFE..GRJ71,76,78..LHD |
17451-28040 |
— | ||
| replacement | |||||
|
17410B
|
17410B
17451-28041 Gasket, Exhaust Pipe[07.2009 - 08.2016] 1GRFE..GRJ79;1GRFE..GRJ71,76,78..LHD |
17451-28041 |
from US $18.90 |
||
|
17430
|
17430
17405-31050 Pipe Assy, Exhaust, TailEXHAUST, TAIL [07.2009 - 08.2016] 1GRFE..GRJ76 |
17405-31050 |
US $558.48 |
||
|
17450
|
17450
17450-31130
Pipe Assy, Exhaust, No.5
[07.2009 - 01.2014] 1GRFE..GRJ79..DCB;1GRFE..GRJ71,76..LHD |
17450-31130 |
— | ||
|
17450
|
17450
17450-31200 Pipe Assy, Exhaust, No.5[01.2014 - 08.2016] 1GRFE..GRJ71,76,79..DCB,HT,SOT |
17450-31200 |
US $851.76 |
||
|
17450
|
17450
17450-31230
Pipe Assy, Exhaust, No.5
[08.2016 -] 1GRFE..GRJ71,76,79..DCB,HT,SOT |
17450-31230 |
— | ||
|
17451
|
17451
90917-06076 Gasket, Exhaust Pipe, Center[01.2007 - 08.2016] 1VDFTV..VDJ79;1GRFE..GRJ71,76..LHD;1HZ,1VDFTV..HZJ7#,VDJ76,78..HT,PIC,SOT |
90917-06076 |
from US $6.27 |
||
|
17504A
|
17504A
17504-17010 Clamp No.1, Exhaust Tail Pipe (For Rear)[01.2007 - 08.2016] 1GRFE..GRJ71,76..LHD |
17504-17010 |
US $26.38 |
||
|
17567
|
17567
17567-17020 Cushion, Exhaust Pipe Center, Rear[07.2009 - 08.2016] 1GRFE..GRJ71,76..LHD |
17567-17020 |
from US $9.03 |
||
|
17567A
|
17567A
17567-66011 Cushion, Exhaust Pipe Support, No.2[07.2009 - 08.2016] 1GRFE..GRJ79..DCB;1GRFE..GRJ71,76..LHD |
17567-66011 |
from US $7.43 |
||
|
17567B
|
17567B
17567-17020 Cushion, Exhaust Pipe Center, Rear[07.2009 - 08.2012] 1GRFE..GRJ71,76 |
17567-17020 |
from US $9.03 |
||
|
17567B
|
17567B
17567-17030 Cushion, Exhaust Pipe Support, No.3[08.2012 - 08.2016] 1GRFE..GRJ7#..DCB,HT,SOT |
17567-17030 |
from US $8.46 |
||
|
17569B
|
17569B
17569-17010 Stay, Exhaust Pipe Support, No.2[01.2007 - 08.2016] 1GRFE..GRJ71,76..LHD;1HZ,1VDFTV..HZJ71,76,VDJ76 |
17569-17010 |
US $37.80 |
||
|
17571
|
17571
17571-31240 Bracket, Exhaust Pipe Support, No.1EXHAUST PIPE SUPPORT, NO.1 [07.2009 - 08.2016] 1GRFE..GRJ79..DCB;1GRFE..GRJ71,76..LHD |
17571-31240 |
US $10.34 |
||
|
17572B
|
17572B
51399-60050 Bracket, Exhaust Pipe Support, No.2EXHAUST PIPE SUPPORT, NO.2 [07.2009 - 08.2016] 1GRFE..GRJ71,76..LHD |
51399-60050 |
US $7.43 |
||
|
17575
|
17575
17575-60021 Bracket, Exhaust Pipe Support, No.5[07.2009 - 08.2016] 1GRFE..GRJ79;1GRFE..GRJ76,78..LHD |
17575-60021 |
US $15.77 |
||
|
17581A
|
17581A
17581-50140 Damper, Exhaust Pipe[07.2009 - 08.2016] 1GRFE..GRJ79..DCB;1GRFE..GRJ71,76..LHD |
17581-50140 |
from US $24.98 |
||
|
18435A
|
18435A
18435-50130 Protector, Monolithic Converter[07.2009 - 08.2016] 1GRFE..GRJ79;1GRFE..GRJ71,76,78..LHD |
18435-50130 |
US $40.33 |
||
|
9010506011
|
9010506011
90105-06011 BOLT |
90105-06011 |
from US $0.74 |
||
|
9010510388
|
9010510388
90105-10388 BOLT |
90105-10388 |
from US $0.92 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.84 |
||
|
9050139004
|
9050139004
90501-39004 SPRING COMPRESSION |
90501-39004 |
from US $3.30 |
||
|
9090105020
|
9090105020
90901-05020 Bolt Or Ring, Exhaust Pipe Front (For Front) |
90901-05020 |
from US $4.12 |
||
|
9155380835
|
9155380835
91553-80835 New Genuine Part |
91553-80835 |
US $1.43 |
||
|
9167480820
|
9167480820
91674-80820 BOLT FLANGE |
91674-80820 |
from US $0.78 |
||
|
9418041000
|
9418041000
94180-41000 Nut |
94180-41000 |
from US $1.37 |
||
|
9418560800
|
9418560800
94185-60800 NUT |
94185-60800 |
from US $0.82 |
||
|
9418561000
|
9418561000
94185-61000 NUTLOCK |
94185-61000 |
from US $0.96 |
||
