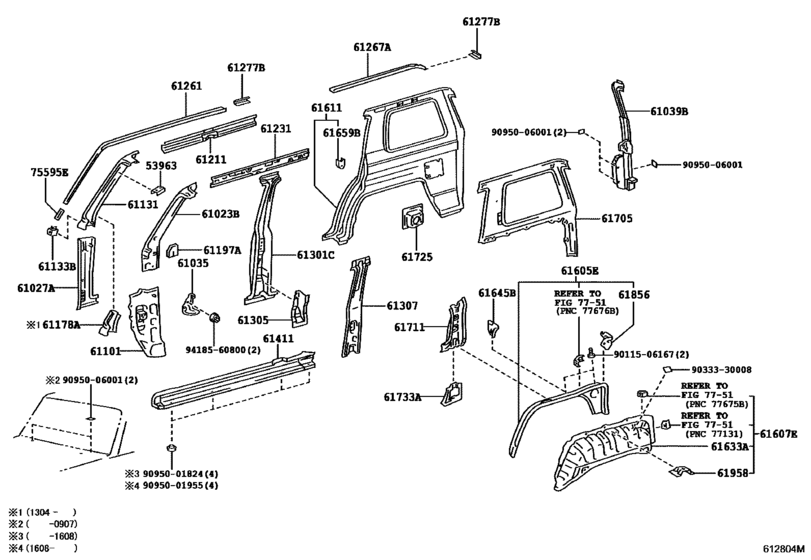

Side Member ([01.2007 - ] RH (0701- )FZJ76,GRJ76,HZJ76,VDJ76) Diagram Toyota LAND CRUISER
- Year
- 2009 - 2018
- Sales region
- U.S.A.
- Frame
- GRJ76
- grade
- STD
- body
- HT
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 70
- From
- 07.2009
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53963
|
53963
53963-60040
Retainer, Air Cleaner Inlet Pipe, No.4
[07.2009 - 08.2014] HZJ76 AIR CLEANER-CYCRON+SCHNORKEL&POWER DOOR LOCK-WITH&OUTSIDE REAR VIEW MIRROR-W(REMOT E CONTROL); HZJ76 AIR CLEANER-CYCRON+SCHNORKEL&OUTSIDE REAR VIEW MIRROR-W(REMOTE CONTROL); GRJ7#..DCB,HT,PIC AIR CLEANER-ON-HEAD TYPE+SCHNORKEL; G |
53963-60040 |
— | ||
|
61023B
|
61023B
61023-60130 Pillar Sub-Assy, Front Body, Inner RhFRONT BODY, INNER RH [07.2009 - 08.2016] GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT |
61023-60130 |
US $160.45 |
||
|
61027A
|
61027A
61027-60491
Pillar Sub-Assy, Front Body, Outer Rh
[07.2009 - 08.2016] GRJ76,79,HZJ76,79,VDJ79..DCB,HT; VDJ76 POWER DOOR LOCK-WITHOUT&POWER WINDOW-W/O |
61027-60491 |
— | ||
|
61027A
|
61027A
61027-60501 Pillar Sub-Assy, Front Body, Outer Rh[07.2009 - 08.2014] HZJ76,79..DCB,HT AIR CLEANER-CYCRON+SCHNORKEL&POWER DOOR LOCK-WITH&OUTSIDE REAR VIEW MIRROR-W(REMOT E CONTROL); HZJ76,79..DCB,HT AIR CLEANER-CYCRON+SCHNORKEL&OUTSIDE REAR VIEW MIRROR-W(REMOTE CONTROL); GRJ79..RHD..DCB;GRJ79..DCB..GCC;G |
61027-60501 |
US $177.63 |
||
|
61039B
|
61039B
61039-60102 Reinforce Sub-Assy, Rear Pillar, Upper RhREAR PILLAR, UPPER RH [04.2008 - 08.2016] VDJ76; GRJ76,HZJ76 TIRE & DISK WHEEL-265/70R16C 7JJ ALUMINUM W(TUBE)&REAR WINDOW DEFOGGER-WITH&REAR W INDOW WIPER-WITH(INTERMITTENT); GRJ76,HZJ76 TIRE & DISK WHEEL-265/70R16C 7JJ ALUMINUM W(TUBE)&REAR WINDOW WIPER-WITH(INTERMITT ENT); |
61039-60102 |
US $179.09 |
||
|
61039B
|
61039B
61039-60112
Reinforce Sub-Assy, Rear Pillar, Upper Rh
[04.2008 - 08.2016] GRJ76,HZJ76 TIRE & DISK WHEEL-265/70R16C 7JJ ALUMINUM W(TUBE)&REAR WINDOW DEFOGGER-WITH; GRJ76,HZJ76 REAR WINDOW DEFOGGER-WITH |
61039-60112 |
— | ||
|
61039B
|
61039B
61039-60122
Reinforce Sub-Assy, Rear Pillar, Upper Rh
[04.2008 - 08.2016] GRJ76,HZJ76 |
61039-60122 |
— | ||
|
61101
|
61101
61101-60161
Panel Sub-Assy, Cowl Side, Rh
[07.2008 - 12.2009] GRJ76,HZJ76..LHD |
61101-60161 |
— | ||
|
61101
|
61101
61101-60300
Panel Sub-Assy, Cowl Side, Rh
[07.2009 - 12.2009] HZJ76..LHD AIR CLEANER-CYCRON+SCHNORKEL; HZJ76..LHD AIR CLEANER-CYCRON+SCHNORKEL&POWER DOOR LOCK-WITH; HZJ76..LHD AIR CLEANER-CYCRON+SCHNORKEL&POWER DOOR LOCK-WITH&OUTSIDE REAR VIEW MIRROR-W(REMOT E CONTROL); HZJ76..LHD AIR CLEANER-CYC |
61101-60300 |
— | ||
|
61101
|
61101
61101-60320
Panel Sub-Assy, Cowl Side, Rh
[07.2009 - 08.2014] HZJ76,79..LHD..(DCB,HT) EXTINGUISHER-WITH&AIR CLEANER-CYCRON+SCHNORKEL&POWER DOOR LOCK-WITH&OUTSIDE REAR V IEW MIRROR-W(REMOTE CONTROL); HZJ76,79..LHD..(DCB,HT) EXTINGUISHER-WITH&AIR CLEANER-CYCRON+SCHNORKEL&OUTSIDE REAR VIEW MIRROR-W( |
61101-60320 |
— | ||
|
61131
|
61131
61131-60270 Pillar, Front Body, Upper Outer RhFRONT BODY, UPPER OUTER RH [07.2009 - 08.2016] GRJ76,79,HZJ76,79..DCB,HT |
61131-60270 |
US $160.45 |
||
|
61131
|
61131
61131-60280
Pillar, Front Body, Upper Outer Rh
[07.2009 - 08.2014] HZJ76,79..DCB,HT AIR CLEANER-CYCRON+SCHNORKEL&POWER DOOR LOCK-WITH&OUTSIDE REAR VIEW MIRROR-W(REMOT E CONTROL); HZJ76,79..DCB,HT AIR CLEANER-CYCRON+SCHNORKEL&OUTSIDE REAR VIEW MIRROR-W(REMOTE CONTROL); GRJ76,79..DCB,HT AIR CLEANER-ON-H |
61131-60280 |
— | ||
|
61133B
|
61133B
61139-90K00 Bracket, Front Body Pillar ,outer RhFRONT BODY PILLAR ,OUTER RH [01.2007 - 08.2016] FZJ76,GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT |
61139-90K00 |
US $5.68 |
||
|
61178A
|
61178A
61178-60010 Reinforcement, No.1 Pillar, Lower Rh[04.2013 - 08.2016] GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT |
61178-60010 |
US $14.15 |
||
|
61197A
|
61197A
61197-90K00
Cover, Front Pillar, Rh
[01.2007 - 11.2009] HZJ79..GEN;GRJ7#,HZJ71,76,78,VDJ7# |
61197-90K00 |
— | ||
|
61211
|
61211
61211-60010 Rail, Roof Side, Outer Rh[01.2007 - 08.2016] FZJ76,GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT |
61211-60010 |
US $61.14 |
||
|
61231
|
61231
61231-60021 Rail, Roof Side, Inner Rh[01.2007 - 08.2016] FZJ76,GRJ76,HZJ76,VDJ76 |
61231-60021 |
US $47.32 |
||
|
61261
|
61261
61263-60010 Channel, Roof Drip, Rh[01.2007 - 08.2016] FZJ76,GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT |
61263-60010 |
US $29.57 |
||
|
61267A
|
61267A
61267-60020 Channel, Roof Drip Side, Rear Rh[01.2007 - 08.2016] GRJ76,HZJ76,VDJ76 |
61267-60020 |
US $32.19 |
||
|
61277B
|
61277B
61277-90K00 Joint, Roof Drip Channel[01.2007 - 08.2016] GRJ71,76,78..LHD..HT..STD;GRJ79,HZJ7#,VDJ78,79..(DCB,HT,PIC)..STD; VDJ79..DCB;GRJ71,76,78..LHD..HT..STD;GRJ79,HZJ7#..(DCB,HT,PIC)..STD FRONT BUMPER-W(PLATING GARNISH); HZJ76,VDJ76..LX FRONT BUMPER-W/O(PLATING GARNISH) |
61277-90K00 |
from US $2.83 |
||
|
61301C
|
61301C
61301-60091
Pillar Sub-Assy, Center Body, Outer Rh
[01.2007 - 08.2016] FZJ76,GRJ76,79,HZJ76,79,VDJ79..DCB,HT; VDJ76 POWER DOOR LOCK-WITHOUT&POWER WINDOW-W/O |
61301-60091 |
— | ||
|
61301C
|
61301C
61301-60101 Pillar Sub-Assy, Center Body, Outer Rh[01.2007 - 08.2016] VDJ76; FZJ76,GRJ76,79,HZJ76,79,VDJ79..DCB,HT POWER DOOR LOCK-WITH |
61301-60101 |
US $354.33 |
||
|
61305
|
61305
61305-60020 Reinforce Sub-Assy, Center Body Pillar, Lower Rh[01.2007 - 08.2016] FZJ76,GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT |
61305-60020 |
US $31.10 |
||
|
61307
|
61307
61307-60131 Pillar Sub-Assy, Center Body, Inner Rh[01.2007 - 08.2016] FZJ76,GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT |
61307-60131 |
US $106.40 |
||
|
61411
|
61411
61401-60010 Panel, Rocker, Outer Rh[01.2007 - 08.2016] FZJ76,GRJ76,HZJ76,VDJ76 |
61401-60010 |
US $198.40 |
||
|
61605E
|
61605E
61605-60042
Panel, Quarter, Rh
[04.2008 - 08.2016] HZJ76..GCC; GRJ76;HZJ76..GEN REAR SEAT-TRANSVERSE SEAT & PARALLEL |
61605-60042 |
— | ||
|
61605E
|
61605E
61605-60051
Panel, Quarter, Rh
[04.2008 - 08.2016] GRJ76;HZJ76..GEN; HZJ76..GCC REAR SEAT-TRANSVERSE REAR SEAT |
61605-60051 |
— | ||
|
61605E
|
61605E
61605-60061
Panel, Quarter, Rh
[04.2008 - 08.2016] HZJ76..GCC REAR WINDOW WIPER-WITH(INTERMITTENT); GRJ76;HZJ76..GEN REAR WINDOW WIPER-WITH(INTERMITTENT)&REAR SEAT-TRANSVERSE SEAT & PARALLEL |
61605-60061 |
— | ||
|
61605E
|
61605E
61605-60071 Panel, Quarter, RhQUARTER, RH [04.2008 - 08.2016] VDJ76; GRJ76;HZJ76..GEN REAR WINDOW WIPER-WITH(INTERMITTENT); HZJ76..GCC REAR WINDOW WIPER-WITH(INTERMITTENT)&REAR SEAT-TRANSVERSE REAR SEAT |
61605-60071 |
US $128.13 |
||
|
61607E
|
61607E
61607-60163 Panel, Quarter Wheel House, Inner Rh[01.2007 - 08.2012] HZJ76..GEN;GRJ76,VDJ76; HZJ76..GCC REAR WINDOW WIPER-WITH(INTERMITTENT)&REAR SEAT-TRANSVERSE REAR SEAT; HZJ76..GCC REAR SEAT-TRANSVERSE REAR SEAT |
61607-60163 |
US $196.56 |
||
|
61607E
|
61607E
61607-60164 Panel, Quarter Wheel House, Inner Rh[08.2012 - 08.2016] HZJ76..GEN;GRJ76,VDJ76; HZJ76..GCC REAR WINDOW WIPER-WITH(INTERMITTENT)&REAR SEAT-TRANSVERSE REAR SEAT; HZJ76..GCC REAR SEAT-TRANSVERSE REAR SEAT |
61607-60164 |
US $146.94 |
||
|
61607E
|
61607E
61607-60183 Panel, Quarter Wheel House, Inner RhQUARTER WHEEL HOUSE, INNER RH [01.2007 - 08.2012] HZJ76..GCC; GRJ76;HZJ76..GEN REAR WINDOW WIPER-WITH(INTERMITTENT)&REAR SEAT-TRANSVERSE SEAT & PARALLEL; GRJ76;HZJ76..GEN REAR SEAT-TRANSVERSE SEAT & PARALLEL |
61607-60183 |
US $224 |
||
|
61607E
|
61607E
61607-60184
Panel, Quarter Wheel House, Inner Rh
[08.2012 - 08.2016] HZJ76..GCC; GRJ76;HZJ76..GEN REAR WINDOW WIPER-WITH(INTERMITTENT)&REAR SEAT-TRANSVERSE SEAT & PARALLEL; GRJ76;HZJ76..GEN REAR SEAT-TRANSVERSE SEAT & PARALLEL |
61607-60184 |
— | ||
|
61611
|
61611
60161-60224
Panel, Quarter, Rh
[07.2009 - 08.2016] GRJ76,HZJ76,VDJ76 |
60161-60224 |
— | ||
|
61611
|
61611
60161-60234 Panel, Quarter, RhQUARTER, RH [07.2009 - 08.2016] VDJ76 TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE); GRJ76,HZJ76 TIRE & DISK WHEEL-265/70R16C 7JJ ALUMINUM W(TUBE); GRJ76,HZJ76 TIRE & DISK WHEEL-265/70R16C 7JJ ALUMINUM W(TUBE)&REAR WINDOW DEFOGGER-WITH; GRJ76,HZJ76 TIRE & DI |
60161-60234 |
US $857.58 |
||
|
61633A
|
61633A
61633-60061 Panel, Quarter Wheel House, Inner Rh[01.2007 - 08.2016] GRJ76,HZJ76,VDJ76 |
61633-60061 |
US $147.06 |
||
|
61645B
|
61645B
61645-90K00 Gusset, Quarter Wheel House, Rear Rh[01.2007 - 08.2016] GRJ71,76,78..LHD;HZJ71,76,78,VDJ76,78 |
61645-90K00 |
US $14.15 |
||
|
61659B
|
61659B
61659-60010 Retainer, Rear Door Open Switch Set, Rh[01.2007 - 08.2016] HZJ71,78,VDJ78;GRJ71,76,78..LHD |
61659-60010 |
US $2.27 |
||
|
61705
|
61705
61705-60B90 Panel Sub-Assy, Roof Side, Inner RhROOF SIDE, INNER RH [07.2009 - 08.2016] HZJ76..GEN;GRJ76,VDJ76; HZJ76..GCC REAR SEAT-TRANSVERSE REAR SEAT |
61705-60B90 |
US $237.33 |
||
|
61705
|
61705
61705-60C00
Panel Sub-Assy, Roof Side, Inner Rh
[07.2009 - 08.2016] HZJ76..GCC; GRJ76;HZJ76..GEN REAR SEAT-TRANSVERSE SEAT & PARALLEL |
61705-60C00 |
— | ||
|
61711
|
61711
61711-60021 Panel, Roof Side, Outer Rh[01.2007 - 08.2016] GRJ76,HZJ76,VDJ76 |
61711-60021 |
US $59.55 |
||
|
61725
|
61725
61725-60041 Box, Fuel InletFUEL INLET [07.2009 - 08.2016] GRJ76,HZJ76;GRJ71,VDJ76..LX |
61725-60041 |
US $20.68 |
||
|
61733A
|
61733A
61707-60010 Panel, Roof Side, Inner Front Rh[01.2007 - 08.2016] GRJ76,HZJ76,VDJ76 |
61707-60010 |
US $21.26 |
||
|
61856
|
61856
61856-60010 Bracket, Rear Washer Tank, Lower[01.2007 - 08.2016] VDJ76; GRJ76,HZJ76 REAR WINDOW WIPER-WITH(INTERMITTENT); HZJ76..GCC REAR WINDOW WIPER-WITH(INTERMITTENT)&REAR SEAT-TRANSVERSE REAR SEAT; GRJ76;HZJ76..GEN REAR WINDOW WIPER-WITH(INTERMITTENT)&REAR SEAT-TRANSVERSE SEAT & PARALLEL |
61856-60010 |
US $4.80 |
||
|
61958
|
61958
61959-90K01 Bracket, Rear Seat Leg, No.1 RhREAR SEAT LEG, NO.1 RH [01.2007 - 08.2016] HZJ76..GCC; GRJ76;HZJ76..GEN REAR WINDOW WIPER-WITH(INTERMITTENT)&REAR SEAT-TRANSVERSE SEAT & PARALLEL; GRJ76;HZJ76..GEN REAR SEAT-TRANSVERSE SEAT & PARALLEL |
61959-90K01 |
US $12.06 |
||
|
75595E
|
75595E
75595-95J00 Cover, Roof Drip Side Moulding End, Front[01.2007 - 08.2016] GRJ71,76,78..LHD..HT..STD;GRJ79,HZJ7#,VDJ78,79..(DCB,HT,PIC)..STD; VDJ79..DCB;GRJ71,76,78..LHD..HT..STD;GRJ79,HZJ7#..(DCB,HT,PIC)..STD FRONT BUMPER-W(PLATING GARNISH); HZJ76,VDJ76..LX FRONT BUMPER-W/O(PLATING GARNISH) |
75595-95J00 |
from US $1.05 |
||
|
9011506167
|
9011506167
90115-06167 Bolt, Weld(For Front Floor Panel, Center) |
90115-06167 |
US $1.25 |
||
|
9033330008
|
9033330008
90333-30008 PLUG PLATE |
90333-30008 |
from US $1.15 |
||
|
9095001824
|
9095001824
90950-01824 PLUG HOLE |
90950-01824 |
from US $1.97 |
||
|
9095001955
|
9095001955
90950-01955 Plug, Hole, No.1(For Dash Panel) |
90950-01955 |
from US $1.79 |
||
|
9095006001
|
9095006001
90950-06001 Protector, Front Side Panel, No.3 |
90950-06001 |
US $3.05 |
||
|
9418560800
|
9418560800
94185-60800 NUT |
94185-60800 |
from US $0.82 |
