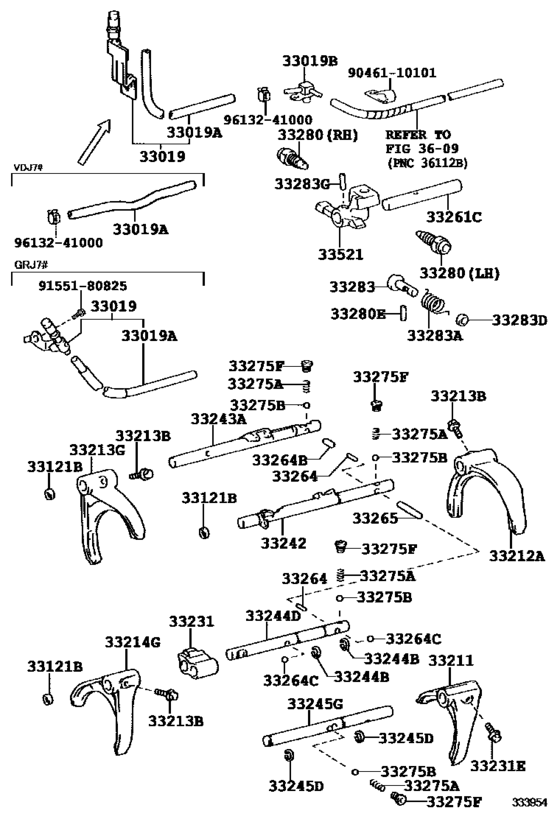

Gear Shift Fork & Lever Shaft (Mtm) ([01.2007 - ] H150,H151 (0701- )FZJ7#,GRJ7#,VDJ7#) Diagram Toyota LAND CRUISER
- Year
- 2009 - 2018
- Sales region
- General
- Frame
- GRJ76
- grade
- STD
- body
- HT
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 70
- From
- 07.2009
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33019
|
33019
33019-60090
Breather Sub-Assy, Transmission
[07.2009 - 08.2016] GRJ79;GRJ71,76,78..LHD |
33019-60090 |
— | ||
|
33019A
|
33019A
90447-11071
Hose(For Transmission Breather)
[07.2009 - 08.2016] GRJ79;GRJ71,76,78..LHD |
90447-11071 |
— | ||
|
33019B
|
33019B
90413-06011 Way(For Transmission Breather Hose)[01.2007 - 08.2016] GRJ79,VDJ7#;GRJ71,76,78..LHD |
90413-06011 |
US $3.20 |
||
|
33121B
|
33121B
96411-41800 Plug, Tight, No.1[01.2007 - 08.2016] GRJ79,VDJ7#;GRJ71,76,78..LHD |
96411-41800 |
from US $1.66 |
||
|
33211
|
33211
33215-37021 Fork, Reverse Shift[01.2007 - 08.2016] GRJ79,VDJ7#;GRJ71,76,78..LHD |
33215-37021 |
from US $55.91 |
||
|
33212A
|
33212A
33212-60050 Fork, Gear Shift, No.1[01.2007 - 08.2016] GRJ79,VDJ7#;GRJ71,76,78..LHD |
33212-60050 |
from US $40.54 |
||
|
33213B
|
33213B
90105-08211 Bolt(For Shift Fork Set)[01.2007 - 08.2016] GRJ79,VDJ7#;GRJ71,76,78..LHD |
90105-08211 |
from US $0.70 |
||
|
33213G
|
33213G
33213-60060 Fork, Gear Shift, No.2[01.2007 - 08.2016] GRJ79,VDJ7#;GRJ71,76,78..LHD |
33213-60060 |
from US $49.62 |
||
|
33214G
|
33214G
33230-60011 Fork, Gear Shift, No.3[01.2007 - 08.2016] GRJ79,VDJ7#;GRJ71,76,78..LHD |
33230-60011 |
from US $41.23 |
||
|
33231
|
33231
33231-60030 Head, Reverse Shift[01.2007 - 08.2016] GRJ79,VDJ7#;GRJ71,76,78..LHD |
33231-60030 |
US $45.57 |
||
|
33231E
|
33231E
90105-07001 Bolt(For Shift Fork Set)[01.2007 - 08.2016] GRJ79,VDJ7#;GRJ71,76,78..LHD |
90105-07001 |
from US $0.99 |
||
|
33242
|
33242
33242-60070 Shaft, Gear Shift Fork, No.1[01.2007 - 08.2016] GRJ79,VDJ7#;GRJ71,76,78..LHD |
33242-60070 |
US $46.59 |
||
|
33243A
|
33243A
33243-60110 Shaft, Gear Shift Fork, No.2[01.2007 - 03.2015] GRJ79,VDJ7#;GRJ71,76,78..LHD |
33243-60110 |
from US $51.25 |
||
|
33243A
|
33243A
33243-60140 Shaft, Gear Shift Fork, No.2[03.2015 - 08.2016] GRJ7#,VDJ7# |
33243-60140 |
US $46.59 |
||
|
33244B
|
33244B
90520-16003 Ring, Shaft Snap (For Shift Fork Shaft)[01.2007 - 08.2016] GRJ79,VDJ7#;GRJ71,76,78..LHD |
90520-16003 |
from US $0.70 |
||
|
33244D
|
33244D
33244-60050 Shaft, Gear Shift Fork, No.3[01.2007 - 02.2016] GRJ79,VDJ7#;GRJ71,76,78..LHD |
33244-60050 |
US $39.46 |
||
|
33244D
|
33244D
33244-60051
Shaft, Gear Shift Fork, No.3
[02.2016 - 08.2016] GRJ7#,VDJ7# |
33244-60051 |
— | ||
|
33245D
|
33245D
90520-14003 Ring, Shaft Snap (For 3Rd & 4Th Shift Fork Shaft)[01.2007 - 08.2016] GRJ79,VDJ7#;GRJ71,76,78..LHD |
90520-14003 |
from US $0.61 |
||
|
33245G
|
33245G
33245-60070 Shaft, Gear Shift Fork, No.4[01.2007 - 08.2016] GRJ79,VDJ7#;GRJ71,76,78..LHD |
33245-60070 |
US $41.64 |
||
|
33261C
|
33261C
33261-60041 Shaft, Shift & Select Lever[01.2007 - 08.2016] GRJ79,VDJ7#;GRJ71,76,78..LHD |
33261-60041 |
US $17.47 |
||
|
33264
|
33264
90250-10023 Pin, Or Ball, Shift Inter Lock, No.1[01.2007 - 08.2016] GRJ79,VDJ7#;GRJ71,76,78..LHD L=15.45 |
90250-10023 |
US $0.61 |
||
|
33264B
|
33264B
90361-10003 Pin, Or Ball, Shift Inter Lock, No.1[01.2007 - 08.2016] GRJ79,VDJ7#;GRJ71,76,78..LHD L=13.6,PIN |
90361-10003 |
from US $1.65 |
||
|
33264C
|
33264C
90360-10003 Ball(For Transmission Oil Pump Cover)[01.2007 - 08.2016] GRJ79,VDJ7#;GRJ71,76,78..LHD |
90360-10003 |
from US $1.19 |
||
|
33265
|
33265
90250-10024 Pin, Shift Inter Lock, No.2[01.2007 - 08.2016] GRJ79,VDJ7#;GRJ71,76,78..LHD L=56.95,OD=9.53 |
90250-10024 |
US $1.44 |
||
|
33275A
|
33275A
90501-14155 Spring, Compression (For Shift Detent Ball Low Side)[01.2007 - 08.2016] GRJ79,VDJ7#;GRJ71,76,78..LHD L=29.3 |
90501-14155 |
from US $0.87 |
||
|
33275B
|
33275B
90360-10003 Ball(For Transmission Oil Pump Cover)[01.2007 - 08.2016] GRJ79,VDJ7#;GRJ71,76,78..LHD |
90360-10003 |
from US $1.19 |
||
|
33275F
|
33275F
90341-12008 Plug, W/head Straight Screw(For Transfer Adapter)[01.2007 - 08.2016] GRJ79,VDJ7#;GRJ71,76,78..LHD |
90341-12008 |
from US $3.33 |
||
|
33280
|
33280
33280-60021 Pin Assy, Reverse Restrict[01.2007 - 08.2016] GRJ79,VDJ7#;GRJ71,76,78..LHD RH |
33280-60021 |
US $14.15 |
||
|
33280
|
33280
33280-60040 Pin Assy, Reverse RestrictREVERSE RESTRICT [01.2007 - 01.2011] GRJ7# LH |
33280-60040 |
US $17.91 |
||
| replacement | |||||
|
33280
|
33280
33280-60050 Pin Assy, Reverse Restrict[01.2007 - 01.2011] GRJ7# LH |
33280-60050 |
US $13.40 |
||
|
33280
|
33280
33280-60050 Pin Assy, Reverse Restrict[01.2011 - 08.2016] GRJ79;GRJ71,76,78..LHD LH |
33280-60050 |
US $13.40 |
||
|
33280E
|
33280E
90254-04015 Pin, Slotted Spring (For Reverse Restrict Pin)[01.2007 - 08.2016] GRJ79,VDJ7#;GRJ71,76,78..LHD |
90254-04015 |
US $1.14 |
||
|
33283
|
33283
33283-60030 Pin, Reverse Restrict, No.1[01.2007 - 08.2016] GRJ79,VDJ7#;GRJ71,76,78..LHD |
33283-60030 |
US $5.77 |
||
|
33283A
|
33283A
90508-10064 Spring, Compression (For Reverse Restrict Pin)[01.2007 - 08.2016] GRJ79,VDJ7#;GRJ71,76,78..LHD |
90508-10064 |
US $1.16 |
||
|
33283D
|
33283D
96411-41200 Plug, Tight, No.1[01.2007 - 08.2016] GRJ79,VDJ7#;GRJ71,76,78..LHD |
96411-41200 |
US $3.58 |
||
|
33283G
|
33283G
90254-05016 Pin, Slotted Spring(For Shift Lever Shaft Set)[01.2007 - 08.2016] GRJ79,VDJ7#;GRJ71,76,78..LHD |
90254-05016 |
from US $1.95 |
||
|
33521
|
33521
33521-60130 Housing, Shift LeverSHIFT LEVER [01.2007 - 08.2016] GRJ79,VDJ7#;GRJ71,76,78..LHD |
33521-60130 |
US $18.52 |
||
|
9046110101
|
9046110101
90461-10101 Clamp, Hose(For Water Hose) |
90461-10101 |
US $3.79 |
||
|
9155180825
|
9155180825
91551-80825 Bolt(For Cylinder Head Set Sub) |
91551-80825 |
from US $0.80 |
||
|
9613241000
|
9613241000
96132-41000 Clip, No.1(For Idle-Up Hose) |
96132-41000 |
from US $1.43 |
||
