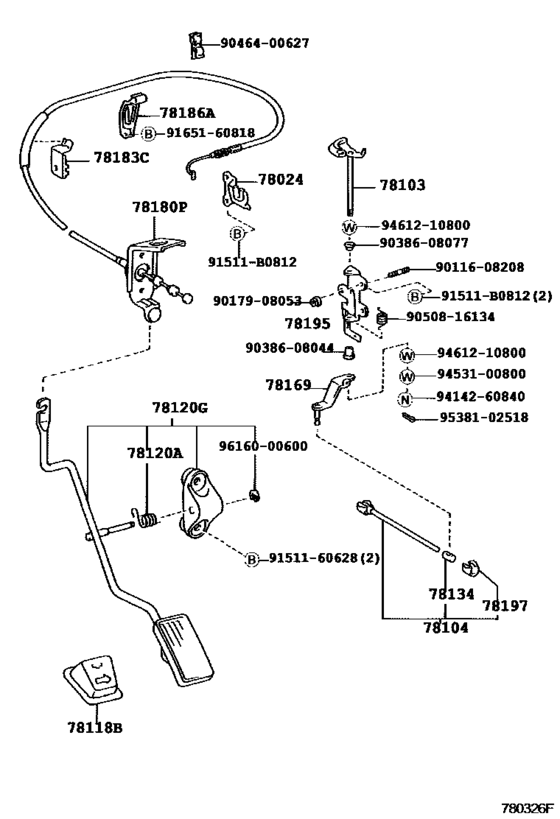

Accelerator Link ([01.1998 - ] (9801- )HDJ100,HZJ105..LHD) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- General
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDT
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- LHD
- Fuel Induction
- TD2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78024
|
78024
78024-60010 Bracket Sub-Assy, Accelerator Control Cable[01.1998 - 08.2002] HDJ100,HZJ105..DSL2,TD2 |
78024-60010 |
US $20.61 |
||
|
78103
|
78103
78103-60022 Rod Sub-Assy, Accelerator Connecting, No.1[01.1998 - 08.2002] HDJ100,HZJ105..DSL2,TD2 |
78103-60022 |
from US $7.57 |
||
|
78104
|
78104
78104-60010 Rod Sub-Assy, Accelerator Connecting, No.2[01.1998 - 08.2002] HDJ100,HZJ105..DSL2,TD2 |
78104-60010 |
from US $6.49 |
||
|
78118B
|
78118B
78118-60020
Stopper, Accelerator Pedal
[01.1998 - 08.2002] FZJ10#,HDJ100,HZJ105,UZJ100..LHD |
78118-60020 |
— | ||
|
78120A
|
78120A
90959-03183 Spring, Compression (For Accelerator Link Rod)COMPRESSION (FOR ACCELERATOR LINK ROD) [01.1998 - 08.2002] FZJ105,HZJ105..4FC;FZJ10#,HDJ100,HZJ105..LHD |
90959-03183 |
US $3.79 |
||
|
78120G
|
78120G
78120-60200 Rod Assy, Accelerator PedalACCELERATOR PEDAL [01.1998 - 08.2002] FZJ10#,HDJ100,HZJ105..LHD |
78120-60200 |
US $47 |
||
|
78134
|
78134
78134-10010 End, Accelerator Connecting Rod[01.1998 - 08.2002] HDJ100,HZJ105..DSL2,TD2 |
78134-10010 |
US $2.27 |
||
|
78169
|
78169
78169-60010 Hanger, Accelerator Spring[01.1998 - 08.2002] HDJ100,HZJ105..DSL2,TD2 |
78169-60010 |
US $4.12 |
||
|
78180P
|
78180P
78150-60040
Cable Assy, Accelerator Control
[01.1998 - 08.2002] HDJ100..GEN W(CRUISE CONTROL),FOR ACTUATOR |
78150-60040 |
— | ||
|
78180P
|
78180P
78180-60570 Cable Assy, Accelerator ControlACCELERATOR CONTROL [01.1998 - 08.2002] HDJ100,HZJ105..LHD |
78180-60570 |
US $75.89 |
||
|
78180P
|
78180P
78180-60620
Cable Assy, Accelerator Control
[01.1998 - 08.2002] HDJ100..LHD W(CRUISE CONTROL) |
78180-60620 |
— | ||
|
78183C
|
78183C
78183-60150 Clamp, Accelerator Control CableACCELERATOR CONTROL CABLE [01.1998 - 08.2002] HDJ100,HZJ105..LHD |
78183-60150 |
US $3.93 |
||
|
78186A
|
78186A
78186-60070 Clamp, Accelerator Control Cable, No.3ACCELERATOR CONTROL CABLE, NO.3 [01.1998 - 08.2002] HDJ100..LHD |
78186-60070 |
US $14.71 |
||
|
78195
|
78195
78195-60011 Bracket, Accelerator Link[01.1998 - 08.2002] HDJ100,HZJ105..DSL2,TD2 |
78195-60011 |
US $5.42 |
||
|
78197
|
78197
78197-10010 Clip(For Throttle Link Connecting Rod)[01.1998 - 08.2002] HDJ100,HZJ105..DSL2,TD2 |
78197-10010 |
from US $1.25 |
||
|
91511B0812
|
91511B0812
91511-B0812 BOLT FLANGE |
91511-B0812 |
US $1.61 |
||
|
9011608208
|
9011608208
90116-08208 Bolt, Stud(For Engine Rear Oil Seal Retainer) |
90116-08208 |
US $1.61 |
||
|
9017908053
|
9017908053
90179-08053 Nut (For Differential Side Gear Shaft) |
90179-08053 |
from US $1.44 |
||
|
9038608044
|
9038608044
90386-08044 BUSH |
90386-08044 |
from US $1.97 |
||
|
9038608077
|
9038608077
90386-08077 Bush (For Throttle Cam Shaft) |
90386-08077 |
from US $1.60 |
||
|
9046400627
|
9046400627
90464-00627
Clamp, Throttle Cable, No.6
|
90464-00627 |
— | ||
|
9050816134
|
9050816134
90508-16134 Spring, Clamp, No.4 |
90508-16134 |
US $1.24 |
||
|
9151160628
|
9151160628
91511-60628 BOLT FLANGE |
91511-60628 |
US $0.87 |
||
|
9165160818
|
9165160818
91651-60818 BOLTWWASHER |
91651-60818 |
from US $1.11 |
||
|
9414260840
|
9414260840
94142-60840 NUTSOLOTTED |
94142-60840 |
US $0.96 |
||
|
9453100800
|
9453100800
94531-00800 Washer (For Transfer Shift Outer Lever) |
94531-00800 |
from US $0.86 |
||
|
9461210800
|
9461210800
94612-10800 Washer, Plate(For Repair Actuator Set) |
94612-10800 |
from US $0.84 |
||
|
9538102518
|
9538102518
95381-02518
PIN
|
95381-02518 |
— | ||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.84 |
