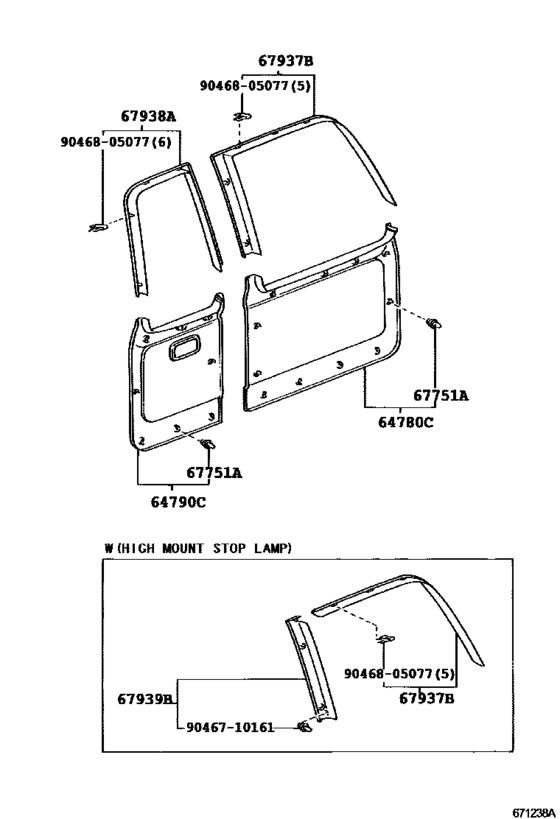

Back Door Panel & Glass ([01.1998 - ] (9801- )SOB) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- General
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDT
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- LHD
- Fuel Induction
- TD2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
64780C
|
64780C
64780-60170-A1 Panel Assy, Back Door Trim, Rh[01.1998 - 08.2002] FZJ10#,HDJ100,HZJ105,UZJ100..SOB..(GX,VX) IVORY,TRIM4# |
64780-60170-A1 |
US $198.02 |
||
| replacement | |||||
|
64780C
|
64780C
64780-60170-A2
Panel Assy, Back Door Trim, Rh
[01.1998 - 08.2002] FZJ10#,HDJ100,HZJ105,UZJ100..SOB..(GX,VX) IVORY,TRIM4# |
64780-60170-A2 |
— | ||
|
64780C
|
64780C
64780-60170-B1
Panel Assy, Back Door Trim, Rh
[01.1998 - 08.2002] FZJ10#,HDJ100,HZJ105,UZJ100..SOB MD.GRAY,TRIM1# |
64780-60170-B1 |
— | ||
| replacement | |||||
|
64780C
|
64780C
64780-60170-B2 Panel Assy, Back Door Trim, RhBACK DOOR TRIM, RH [01.1998 - 08.2002] FZJ10#,HDJ100,HZJ105,UZJ100..SOB MD.GRAY,TRIM1# |
64780-60170-B2 |
US $215.49 |
||
|
64790C
|
64790C
64790-60060-A1 Panel Assy, Back Door Trim, Lh[01.1998 - 08.2002] FZJ10#,HDJ100,HZJ105,UZJ100..SOB..(GX,VX) IVORY,TRIM4# |
64790-60060-A1 |
US $123.76 |
||
| replacement | |||||
|
64790C
|
64790C
64790-60060-A2 Panel Assy, Back Door Trim, Lh[01.1998 - 08.2002] FZJ10#,HDJ100,HZJ105,UZJ100..SOB..(GX,VX) IVORY,TRIM4# |
64790-60060-A2 |
US $122.30 |
||
|
64790C
|
64790C
64790-60060-B1
Panel Assy, Back Door Trim, Lh
[01.1998 - 08.2002] FZJ10#,HDJ100,HZJ105,UZJ100..SOB MD.GRAY,TRIM1# |
64790-60060-B1 |
— | ||
| replacement | |||||
|
64790C
|
64790C
64790-60060-B2 Panel Assy, Back Door Trim, LhBACK DOOR TRIM, LH [01.1998 - 08.2002] FZJ10#,HDJ100,HZJ105,UZJ100..SOB MD.GRAY,TRIM1# |
64790-60060-B2 |
US $132.50 |
||
|
67751A
|
67751A
67771-12050 Clip, Radiator Grille[01.1998 - 08.2002] FZJ10#,HDJ100,HZJ105,UZJ100..SOB TYPE A; UZJ100..LHD..LUB;FZJ10#,HDJ100,HZJ105..LUB TYPE A |
67771-12050 |
from US $1.48 |
||
|
67937B
|
67937B
67937-60050-A0
Garnish, Back Door Side, Rh
[01.1998 - 08.2002] FZJ105,HDJ100,HZJ105..SOB..(GX,VX)..GEN IVORY,TRIM4# |
67937-60050-A0 |
— | ||
| replacement | |||||
|
67937B
|
67937B
67937-60050-B1
Garnish, Back Door Side, Rh
[01.1998 - 08.2002] FZJ105,HDJ100,HZJ105..SOB..(GX,VX)..GEN IVORY,TRIM4# |
67937-60050-B1 |
— | ||
|
67937B
|
67937B
67937-60050-B0
Garnish, Back Door Side, Rh
[01.1998 - 08.2002] FZJ105,HZJ105..SOB..GEN;FZJ100,HDJ100..SOB..(STD,VX) MD.GRAY,TRIM1# |
67937-60050-B0 |
— | ||
| replacement | |||||
|
67937B
|
67937B
67937-60050-B1
Garnish, Back Door Side, Rh
[01.1998 - 08.2002] FZJ105,HZJ105..SOB..GEN;FZJ100,HDJ100..SOB..(STD,VX) MD.GRAY,TRIM1# |
67937-60050-B1 |
— | ||
|
67937B
|
67937B
67937-60060-A0 Garnish, Back Door Side, Rh[01.1998 - 08.2002] FZJ10#,HDJ100,HZJ105,UZJ100..SOB..(GX,VX) W(HIGH MOUNT STOP LAMP),IVORY,TRIM4# |
67937-60060-A0 |
US $61.30 |
||
| replacement | |||||
|
67937B
|
67937B
67937-60060-B1 Garnish, Back Door Side, RhBACK DOOR SIDE, RH [01.1998 - 08.2002] FZJ10#,HDJ100,HZJ105,UZJ100..SOB..(GX,VX) W(HIGH MOUNT STOP LAMP),IVORY,TRIM4# |
67937-60060-B1 |
from US $60.37 |
||
|
67937B
|
67937B
67937-60060-B0
Garnish, Back Door Side, Rh
[01.1998 - 08.2002] FZJ10#,HDJ100,HZJ105,UZJ100..SOB W(HIGH MOUNT STOP LAMP),MD.GRAY,TRIM1# |
67937-60060-B0 |
— | ||
| replacement | |||||
|
67937B
|
67937B
67937-60060-B1 Garnish, Back Door Side, RhBACK DOOR SIDE, RH [01.1998 - 08.2002] FZJ10#,HDJ100,HZJ105,UZJ100..SOB W(HIGH MOUNT STOP LAMP),MD.GRAY,TRIM1# |
67937-60060-B1 |
from US $60.37 |
||
|
67938A
|
67938A
67938-60040-A0
Garnish, Back Door Side, Lh
[01.1998 - 08.2002] FZJ10#,HDJ100,HZJ105,UZJ100..SOB..(GX,VX) IVORY,TRIM4# |
67938-60040-A0 |
— | ||
| replacement | |||||
|
67938A
|
67938A
67938-60040-B1 Garnish, Back Door Side, LhBACK DOOR SIDE, LH [01.1998 - 08.2002] FZJ10#,HDJ100,HZJ105,UZJ100..SOB..(GX,VX) IVORY,TRIM4# |
67938-60040-B1 |
from US $63.26 |
||
|
67938A
|
67938A
67938-60040-B0
Garnish, Back Door Side, Lh
[01.1998 - 08.2002] FZJ10#,HDJ100,HZJ105,UZJ100..SOB MD.GRAY,TRIM1# |
67938-60040-B0 |
— | ||
| replacement | |||||
|
67938A
|
67938A
67938-60040-B1 Garnish, Back Door Side, LhBACK DOOR SIDE, LH [01.1998 - 08.2002] FZJ10#,HDJ100,HZJ105,UZJ100..SOB MD.GRAY,TRIM1# |
67938-60040-B1 |
from US $63.26 |
||
|
67939B
|
67939B
67939-60060-A0
Garnish, Back Door, Center
[01.1998 - 08.2002] FZJ10#,HDJ100,HZJ105,UZJ100..SOB..(GX,VX) IVORY,TRIM4# |
67939-60060-A0 |
— | ||
| replacement | |||||
|
67939B
|
67939B
67939-60060-B1 Garnish, Back Door, CenterBACK DOOR, CENTER [01.1998 - 08.2002] FZJ10#,HDJ100,HZJ105,UZJ100..SOB..(GX,VX) IVORY,TRIM4# |
67939-60060-B1 |
from US $47.68 |
||
|
67939B
|
67939B
67939-60060-B0 Garnish, Back Door, CenterBACK DOOR, CENTER [01.1998 - 08.2002] FZJ10#,HDJ100,HZJ105,UZJ100..SOB MD.GRAY,TRIM1# |
67939-60060-B0 |
US $47.47 |
||
| replacement | |||||
|
67939B
|
67939B
67939-60060-B1 Garnish, Back Door, CenterBACK DOOR, CENTER [01.1998 - 08.2002] FZJ10#,HDJ100,HZJ105,UZJ100..SOB MD.GRAY,TRIM1# |
67939-60060-B1 |
from US $47.68 |
||
|
9046710161
|
9046710161
90467-10161 Clip |
90467-10161 |
from US $0.90 |
||
|
9046805077
|
9046805077
90468-05077 Clip(For Front Body Pillar Garnish) |
90468-05077 |
from US $0.86 |
||
