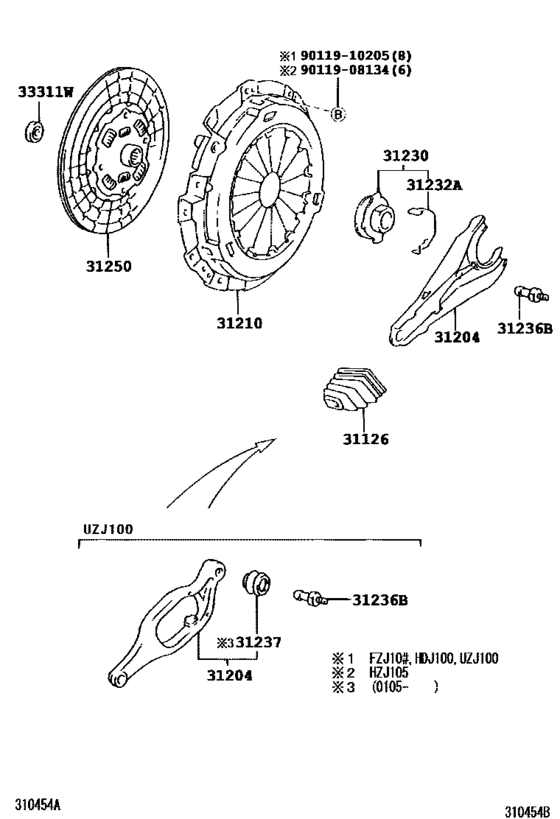

Clutch & Release Fork ([01.1998 - ] (9801- )5F) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- General
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDT
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- LHD
- Fuel Induction
- TD2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-36090 Boot, Clutch Release Fork[01.1998 - 08.2002] HDJ100..5F |
31126-36090 |
from US $13.10 |
||
|
31204
|
31204
31204-36142 Fork Sub-Assy, Clutch Release[01.1998 - 08.2002] HDJ100..5F |
31204-36142 |
from US $57.12 |
||
|
31210
|
31210
31210-36240
Cover Assy, Clutch
[01.1998 - 11.2001] HDJ100..5F |
31210-36240 |
— | ||
| replacement | |||||
|
31210
|
31210
31210-36320 Cover Assy, ClutchCLUTCH [01.1998 - 11.2001] HDJ100..5F |
31210-36320 |
from US $279.94 |
||
|
31210
|
31210
31210-60210 Cover Assy, Clutch[11.2001 - 08.2002] HDJ100..5F |
31210-60210 |
US $310.13 |
||
| replacement | |||||
|
31210
|
31210
31210-36320 Cover Assy, ClutchCLUTCH [11.2001 - 08.2002] HDJ100..5F |
31210-36320 |
from US $279.94 |
||
|
31230
|
31230
31230-36210 Bearing Assy, Clutch Release[01.1998 - 08.2002] HDJ100..5F |
31230-36210 |
from US $82.31 |
||
|
31232A
|
31232A
31232-36030 Clip Or Spring, Release Bearing Hub[01.1998 - 08.2002] HDJ100..5F |
31232-36030 |
from US $1.44 |
||
|
31236B
|
31236B
31236-36060 Ball, Release Fork[01.1998 - 08.2002] HDJ100..5F |
31236-36060 |
US $8.60 |
||
|
31250
|
31250
31250-60340
Disc Assy, Clutch
[01.1998 - 12.2000] HDJ100..5F |
31250-60340 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-60391 Disc Assy, Clutch[01.1998 - 12.2000] HDJ100..5F |
31250-60391 |
from US $317.05 |
||
|
31250
|
31250
31250-60341 Disc Assy, Clutch[12.2000 - 08.2001] HDJ100..5F |
31250-60341 |
US $467.38 |
||
| replacement | |||||
|
31250
|
31250
31250-60391 Disc Assy, Clutch[12.2000 - 08.2001] HDJ100..5F |
31250-60391 |
from US $317.05 |
||
|
31250
|
31250
31250-60342 Disc Assy, Clutch[08.2001 - 09.2001] HDJ100..5F |
31250-60342 |
US $467.38 |
||
| replacement | |||||
|
31250
|
31250
31250-60391 Disc Assy, Clutch[08.2001 - 09.2001] HDJ100..5F |
31250-60391 |
from US $317.05 |
||
|
31250
|
31250
31250-60343
Disc Assy, Clutch
[09.2001 - 08.2002] HDJ100..5F |
31250-60343 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-60391 Disc Assy, Clutch[09.2001 - 08.2002] HDJ100..5F |
31250-60391 |
from US $317.05 |
||
|
33311W
|
33311W
90363-15017 Bearing (For Input Shaft)[01.1998 -] FZJ10#,HDJ100..5F..(GX,STD);HDJ100,UZJ100..5F..VX..(EFI,TD2) |
90363-15017 |
from US $21.84 |
||
|
9011908134
|
9011908134
90119-08134 BOLT |
90119-08134 |
from US $0.78 |
||
|
9011910205
|
9011910205
90119-10205 Bolt |
90119-10205 |
from US $1.17 |
||
